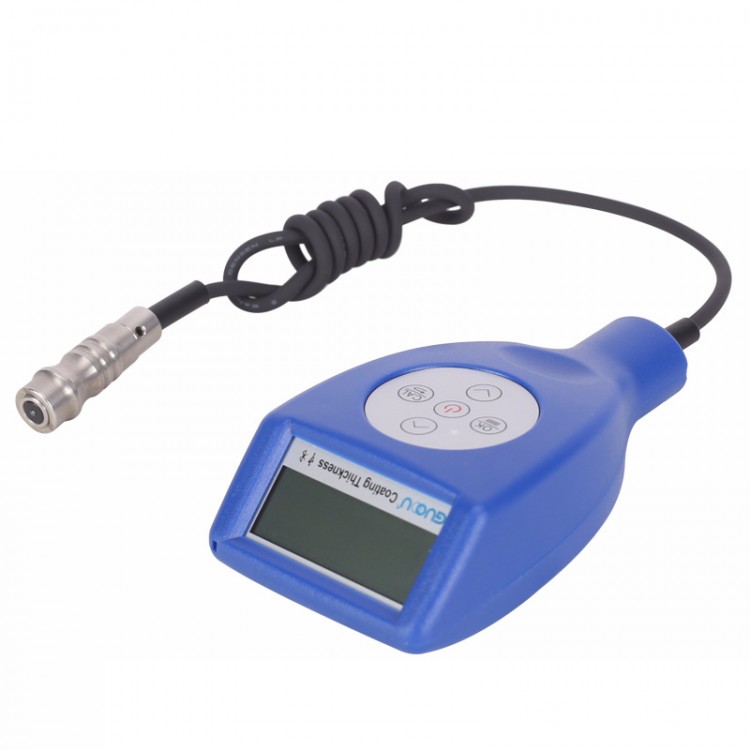

GTS820F Iron-Based Bluetooth Coating Thickness Gauge Galvanized Layer Paint Thickness Meter 0-1500um

GTS820F Iron-Based Bluetooth Coating Thickness Gauge Galvanized Layer Paint Thickness Meter 0-1500um

Description:
Based on the second-generation functions, the third-generation Bluetooth coating thickness gauge adds functions such as storage, Bluetooth, USB, backlight, red and green dual-color LED indicators, and menu operations. It comprehensively strengthens the testing of software and hardware, high and low temperature, anti-drop, probe wear, test speed, test stability, voltage stability, etc.

GTS820F coating thickness gauge has a wide range of magnetic instruments. Its technical parameters fully comply with national standards.

This instrument is a portable magnetic coating thickness gauge, which adopts magnetic induction test method, which can quickly, damage-free and accurately test the thickness of non-magnetic coating and coating on magnetic substrate. It can be used both in labs and on engineering sites. This instrument can be widely used in manufacturing, automobile inspection, metal processing industry, chemical industry, commodity inspection and other inspection fields. It is an indispensable instrument for the material protection profession.

Fe-based probes can detect all non-magnetic coating thicknesses, such as paint, powder coating, plastic, porcelain, chromium, copper, zinc, etc. coated on steel and iron.

Functions:
- Magnetic thickness measurement method is used to measure the thickness of the non-magnetic covering layer on the magnetic metal substrate;
- Quickly measure and display values.
- Negative number display function to ensure the accuracy of the zero-point calibration of the instrument and improve test accuracy;
- Two shutdown methods: manual shutdown and automatic shutdown;
- Low voltage indication;
- Micro power consumption design, less than 10μA current in standby mode;
- Measurement method: F magnetic induction.
- Graphic menu operation, rich information prompt, easy to operate;
- USB and Bluetooth data transmission: For Windows upper computer, Android, iOS App. Real-time display of measurement results, with data statistics and browsing functions;
- Data storage and data browsing;
- Backlit dot matrix display, red and green LED indicators, buzzer prompt sound;
- Single point measurement, continuous measurement;
- The minimum operating temperature of the instrument is -20℃/68℉, and the maximum is 70℃/158℉;
- The abrasion resistance of the probe is not less than 800,000 measurements;
- Improve the shell and internal structure design to enhance the product's anti-fall and impact resistance;
- Improve hardware circuits and algorithms: enhance high and low temperature adaptation and accuracy, and enhance the recognition of substrates of different thicknesses and shapes;
- There are buzzer prompts during operation, red light and green light prompt;
- Single-point calibration and two-point calibration and five-point calibration can be used for calibration;
- The upper and lower limits can be set to exceed the limit alarm function.

Specifications:
- Power supply: USB 5V or 2pcs AA batteries (batteries are not included)
- Operation method: graphical menu button operation
- Human-computer interaction: buttons, backlit dot matrix screen, indicator light, buzzer
- Data transmission: USB, Bluetooth
- PC software: For Windows PC, Android App client, iOS App client
- Applicable occasions: non-magnetic coating on magnetic substrate
- Measuring range: 0~1500μm
- Resolution: 0.1μm (0~99.9μm), 1μm (100~1500μm)
- Minimum surface: convex 5mm/concave 5mm
- Minimum measuring area: 10×10mm
- Thinnest base: 0.4mm
- Use environment: temperature -10 to 50℃/-50℉ to 122℉, humidity 10-85%RH
- Measurement accuracy error: zero-point calibration ±(1+2%H); multi-point calibration ±(1+2%H). H means coating thickness
- Product size: 126 x 69 x 35mm/5 x 2.7 x 1.4 inch (excluding the size of probe)

Package Included:
- 1 x Paint Thickness Gauge
- 5 x Standard Films [50μm, 100μm, 250μm, 500μm, 500μm (optional: 12μm, 25μm)]
- 1 x Base Substrate (Iron Base)
- 1 x Manual

Note:
- It can also be powered by 2pcs AA batteries which are not included.

Excellent Product Quality:
● Test response speed can be maintained 1 to 2 times per second;
● Scientific zero-return operation mode, as long as the probe touches the substrate, it can be zeroed if it is suspended;
● Positive and negative numbers display the test value, and it is clear whether the zeroing is in place at a glance, which improves the test accuracy;
● Add temperature drift control system and high-end chip control system, which has relatively good linearity, stability and repeatability.
● In addition to the single-point calibration and two-point calibration functions, three-point calibration, five-point calibration, and factory calibration restoration are also added; when the measurement head of the instrument exceeds the normal range due to long-term wear, the user can directly report to the instrument Re-enter data, repair the probe system of the instrument, restore measurement accuracy, and save return time and transportation costs.
