Guide Mobir 2S 10X Macro Lens Mobile Phone Thermal Imager Camera Thermal Imaging Camera for Android
Features:

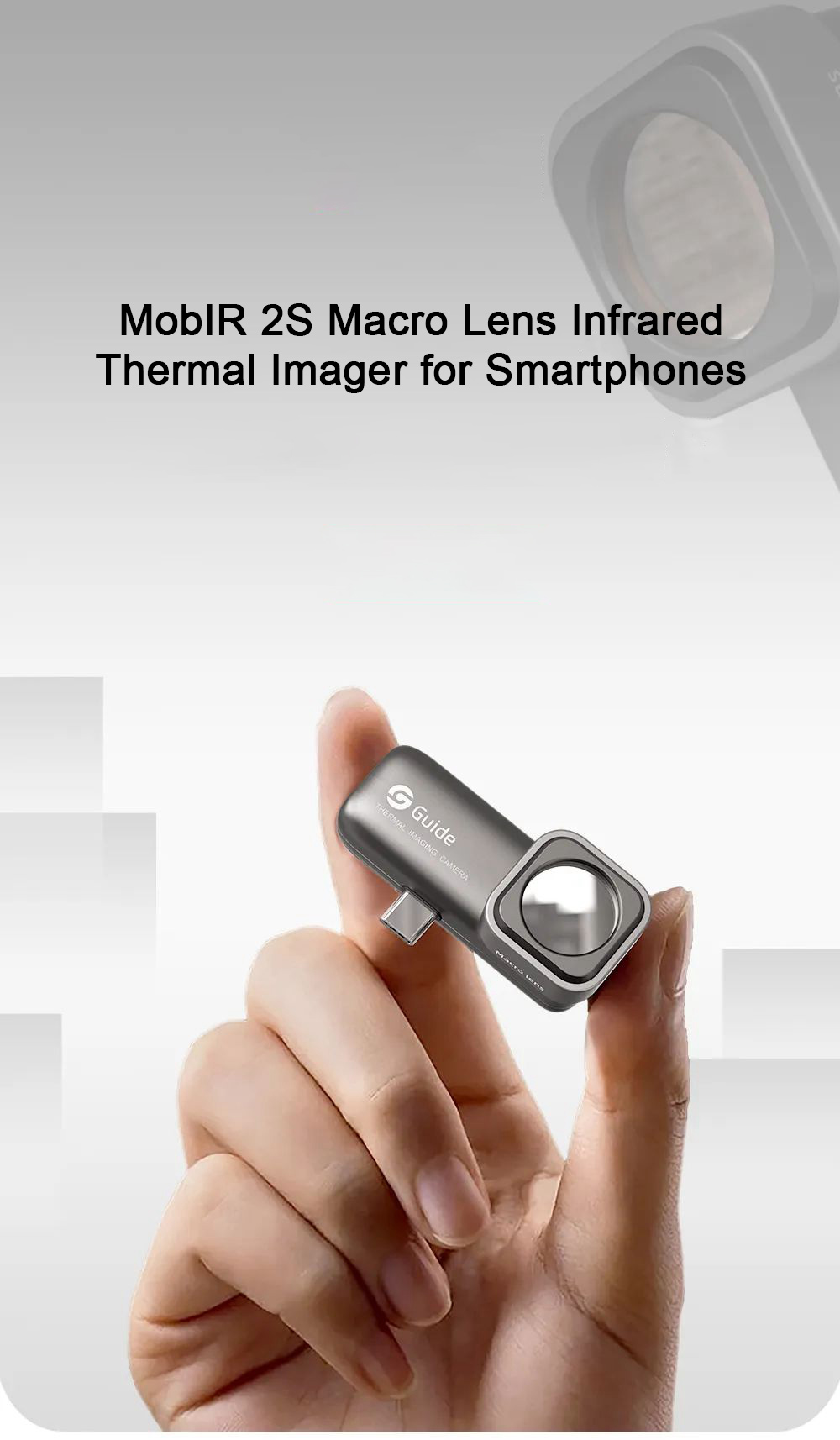

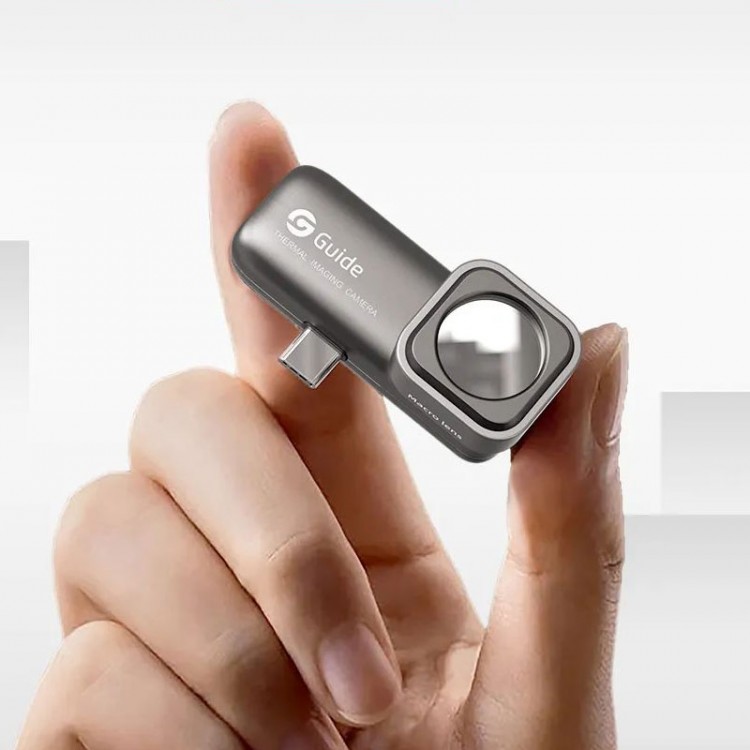

- Mobir 2S macro lens infrared thermal imager

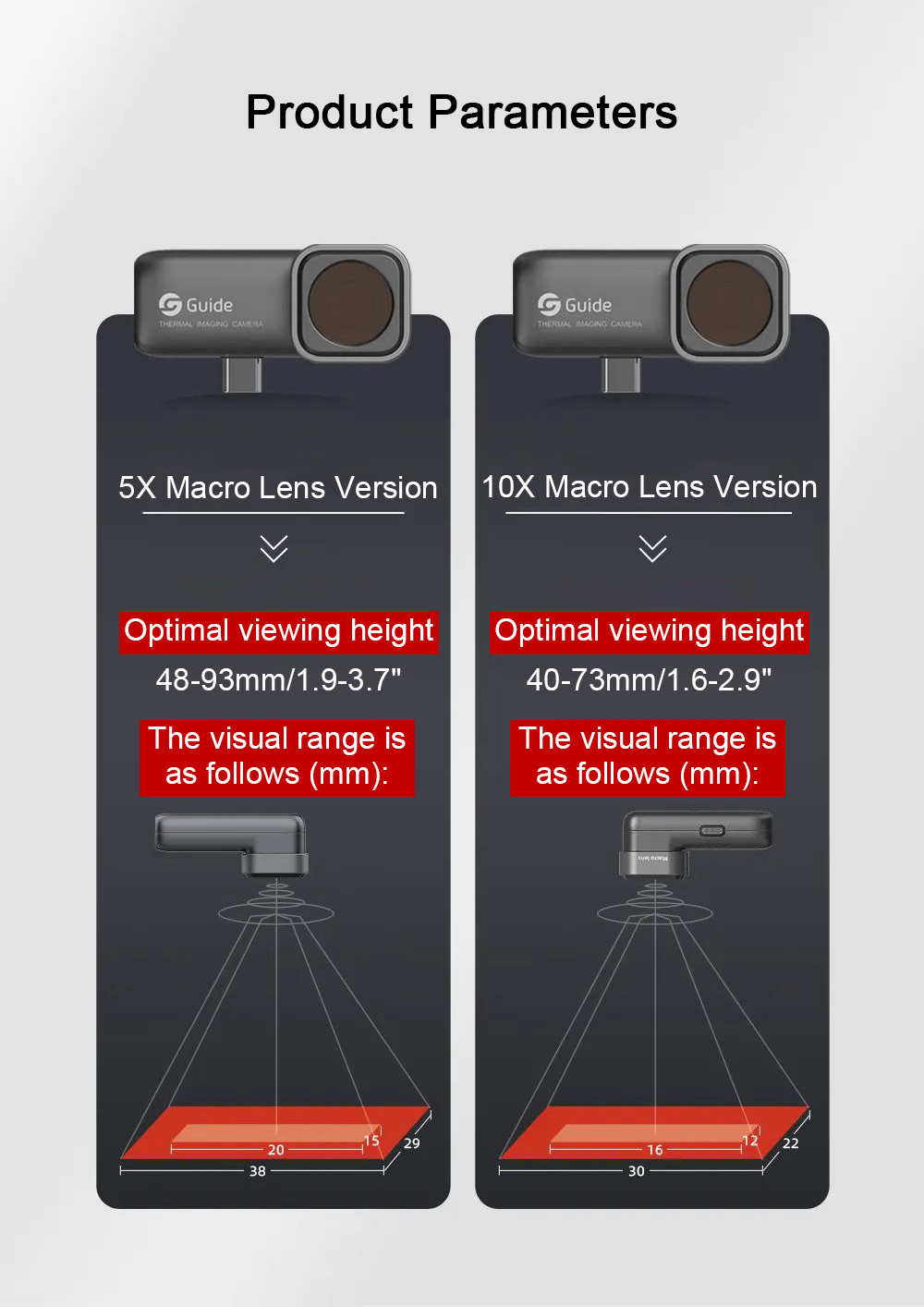

- 10X HD macro lens: 1x1mm component defect is visible
- Automatic focusing: It can be used to inspect PCBA of multiple sizes
- It can distinguish a slight temperature difference of 0.05°C. The global temperature distribution is visually visible
- 256x192 infrared detector: The image is clear and the details are discerning

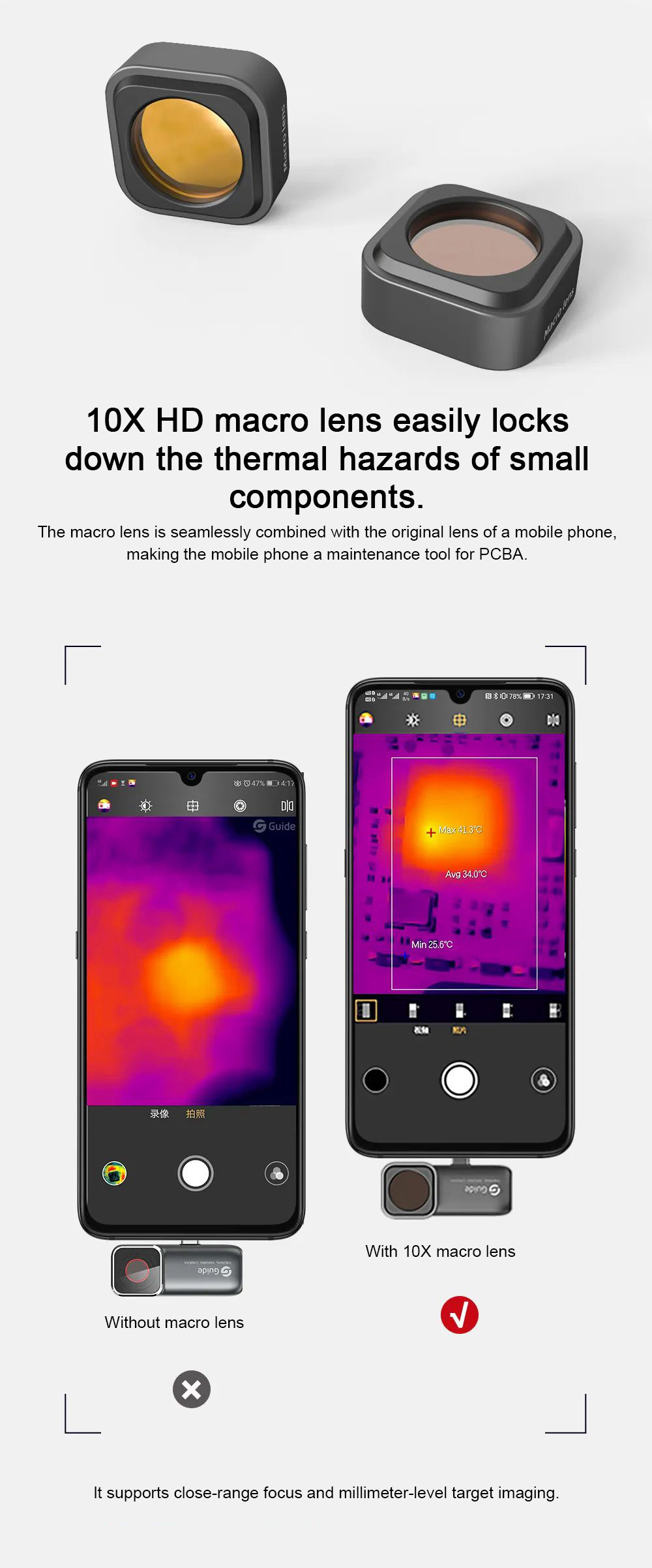

- HD macro lens easily locks down the thermal hazards of small components. The macro lens is seamlessly combined with the original lens of a mobile phone, making the mobile phone a maintenance tool for PCBA. It also supports close-range focus and millimeter-level target imaging
- Professional-grade inspection tool is for PCBA electronic repair and PCBA product R&D testing
- Full-frame temperature measurement for quick detection of faults: It can detect 49152 pixel points at a time, which can efficiently screen the entire circuit board for fault points
- 10X magnification enables clear details: Tiny components are clearly visible, making it more suitable for detecting small targets
- High thermal sensitivity for fast detection of leakage: Slight temperature differences are visible at a glance. It can also be used to test thermal load, heat and heat dissipation, etc., to help improve the process

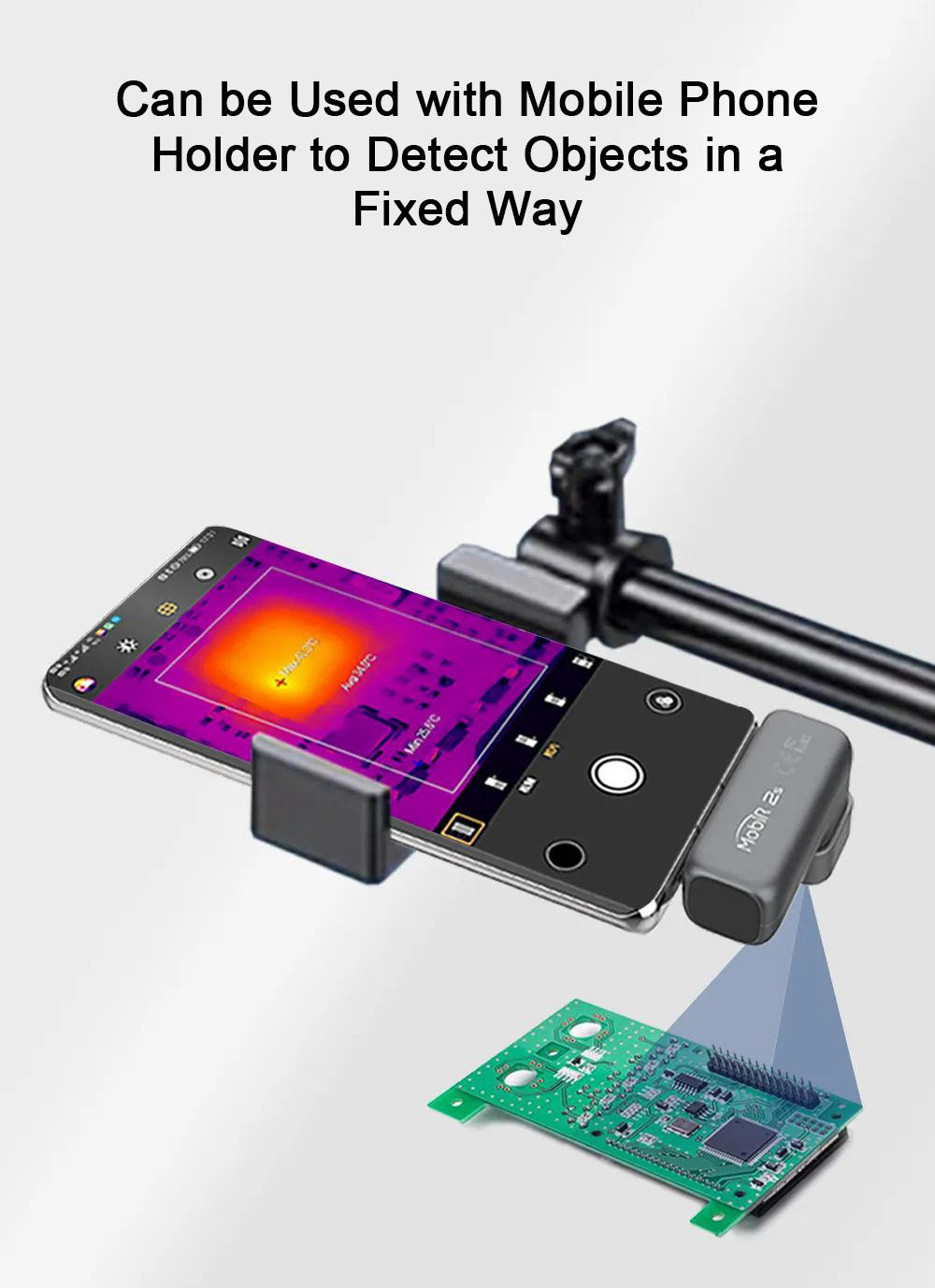

- It can be used with a mobile phone holder to detect objects in a fixed way
Packaging Details:
- G.W.: 0.25KG/0.6LB
Package Included:
- 1 x Thermal camera
- 1 x Carrying box
- 1 x Wrist strap
- 1 x User manual
- 1 x Warranty card
- 1 x Product quality certificate
