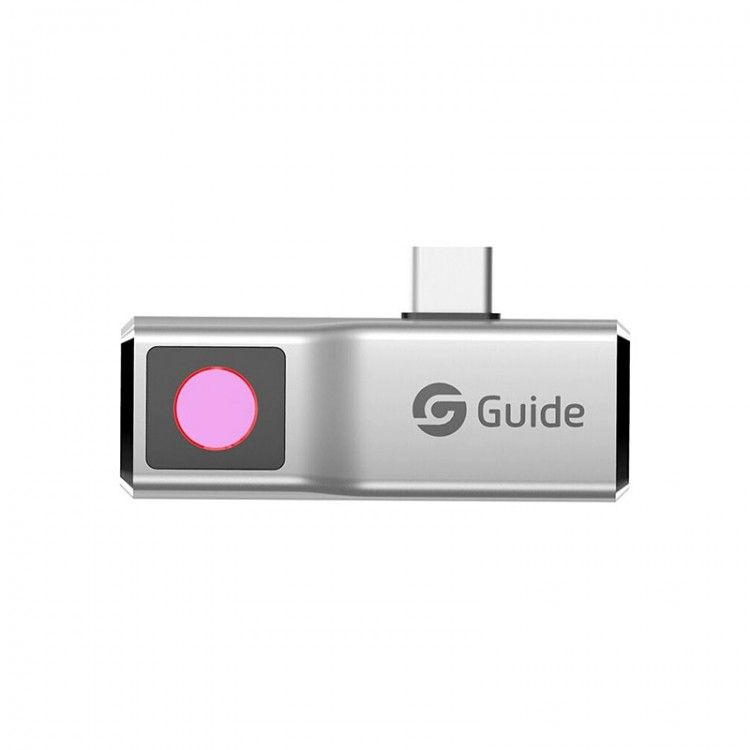

Guide Mobir Air 120 x 90 Thermal Imaging Camera Mobile Phone Thermal Imager Silver for Android

Guide Mobir Air 120 x 90 Thermal Imaging Camera Mobile Phone Thermal Imager Silver for Android

Features:
- Mobir Air thermal camera for smartphones
- 120 x 90 IR resolution
- Temperature range: -20℃ to 120℃
- Lower power consumption: <150mW
- About 20g in weight

Application Scenarios:
- Privacy Protection: Scan the whole room in 1 minute. Quickly detect whether there are hidden cameras in the hotel room, and ensure the safety of business travel and tourist accommodation.
- Household Testing Tools: The thermal imager can display pictures on the spot. No specialist knowledge is required and can be used for a variety of fault detection, including heating fault detection, air conditioning and refrigeration detection, water pipe leak detection, and electrical equipment detection.
- Engineer Assistant: For R&D or DIY projects, it can quickly assess hidden issues and reduce troubleshooting time. It is suitable for circuit board fault detection, computer case heat dissipation detection and electronic product heat test.

Specifications (Mobir Air):
Image & Optics:
- Detector type: Uncooled vanadium oxide
- Infrared resolution: 120*90
- Wavelength range: 7.5~14μM
- Field of view: 50°
- IR frame rate: 25Hz

Measurement & Analysis:
- Temperature range: -20°C to 120°C

Storage & Transmission:
- External interface: Type-c for Android

Physical Parameters:
- Weight: About 20G/0.04LB
- Dimensions (without connector): 50 x 14 x 18mm/2 x 0.6 x 0.7"

Packaging Details:
- G.W.: 0.25KG/0.6LB

Package Included:
- 1 x Thermal camera
- 1 x Carrying box
- 1 x Wrist strap
- 1 x User manual
- 1 x Warranty card
- 1 x Product quality certificate

Note:
- Battery pictured is not included in the package.
