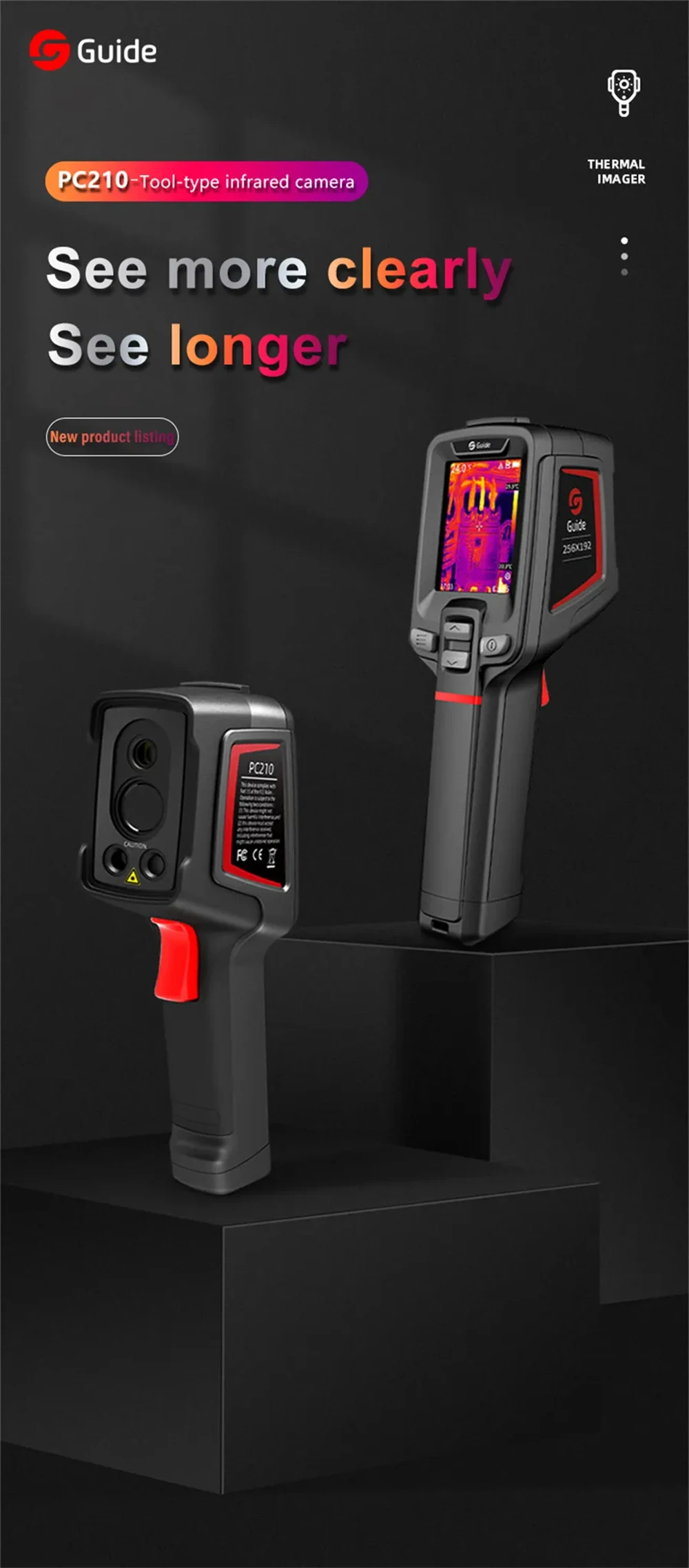

Guide PC210 256x192 Thermal Imager Thermal Camera for Electronic PCB Circuit Repair Car Inspection
Description:

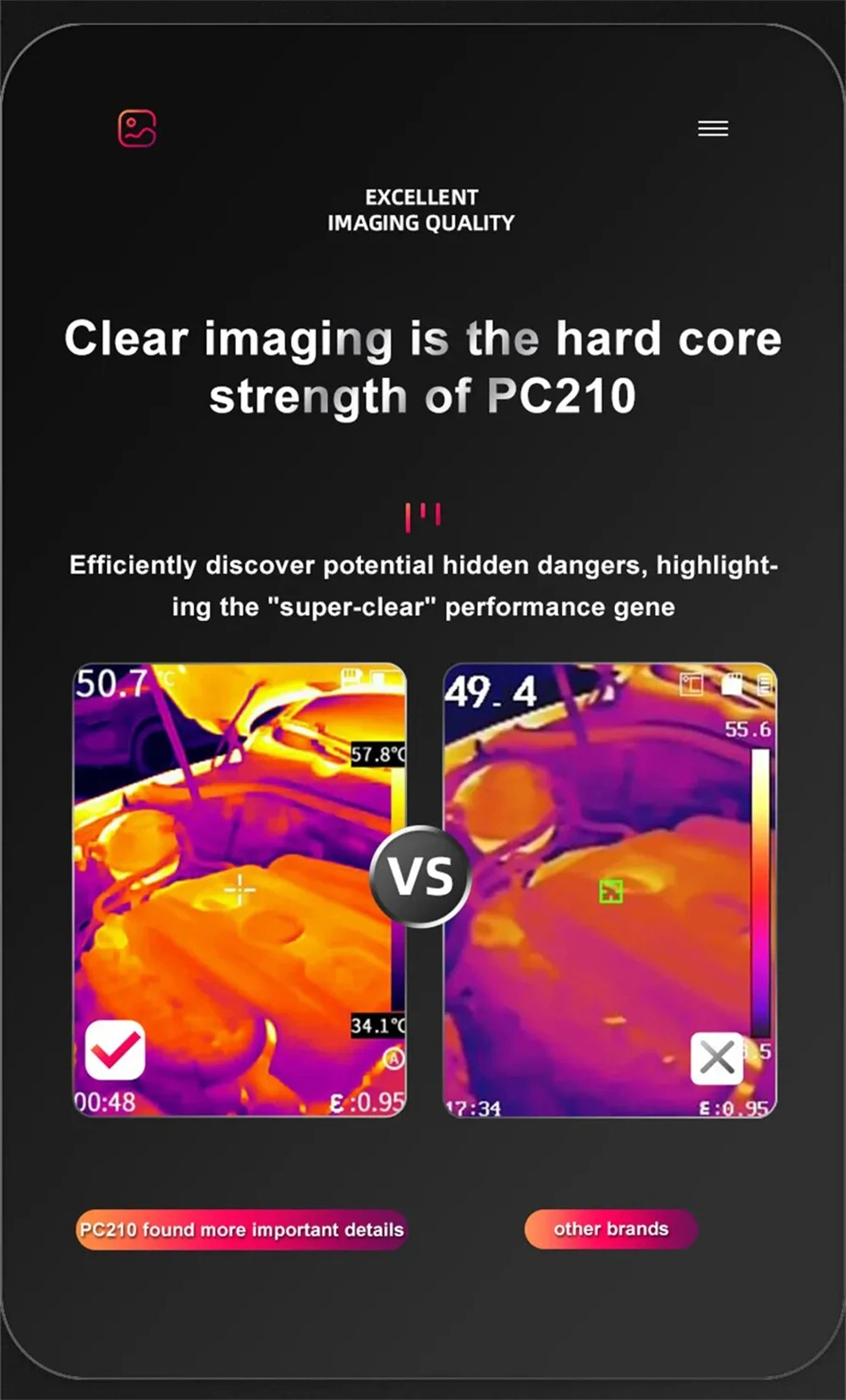

PC210, Tool-like Handheld Thermal Camera, is designed with excellent performance in image quality and charging battery life. This thermal camera adopts 256x192 IR detector and 2MP visible light. Adopts the New SharpIR composite image enhancement technology, it can provide you with detailed infrared thermal imaging and dual-light fusion images to help you find potential faults more quickly.
Features:
- New SharpIR composite image enhancement technology: Based on advanced and deep learning technology, SharpIR performs various optimization processes such as defogging, sharpening, contrast enhancement, and lossless magnification on low-resolution images to enhance the clarity of infrared images

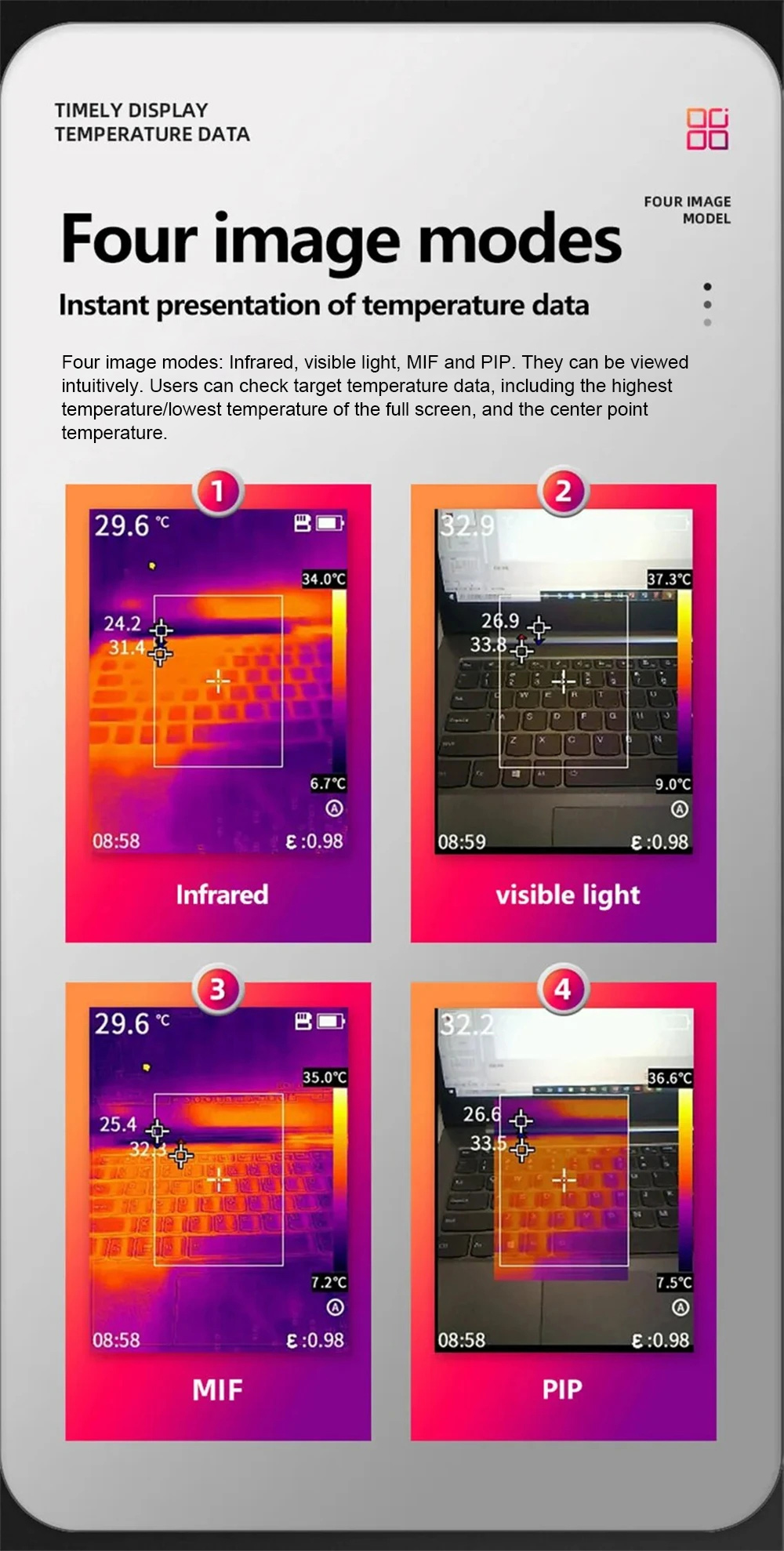

- 4 Image Modes: IR/Visible Light/ MIF/ PIP
- Check temperature data of targets in an intuitive way
- Including full screen Max., Min. & center spot temperature
- Support PC projection to get large screen display
- Pictures in the machine can be transmitted to a computer in real time by using a type-c to USB cable
- It adopts 256x192 infrared module with excellent imaging quality

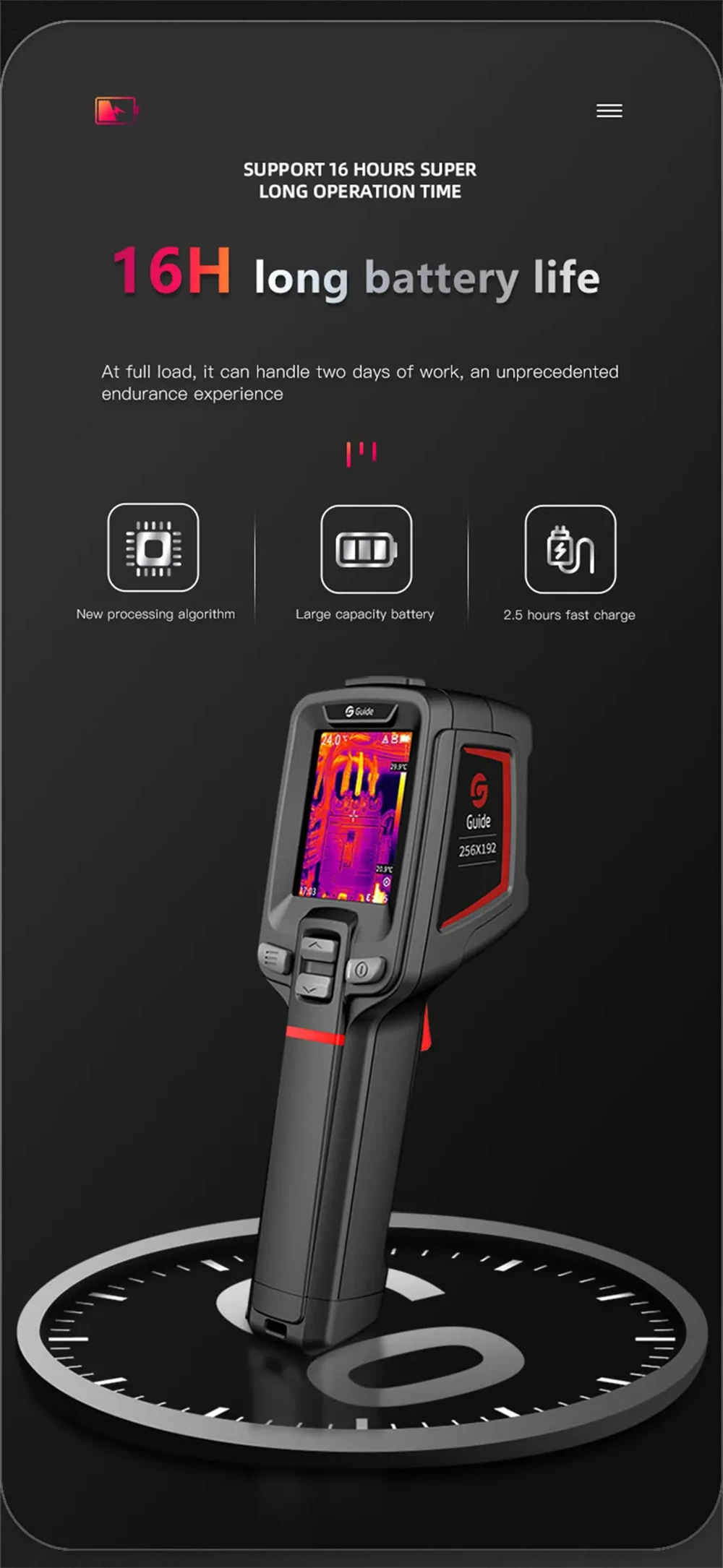

- 16H operating time and 2.5H fast charging make it easy to cope with two days of work
- Turn on in 1 second and use, supporting full-frame temperature measurement

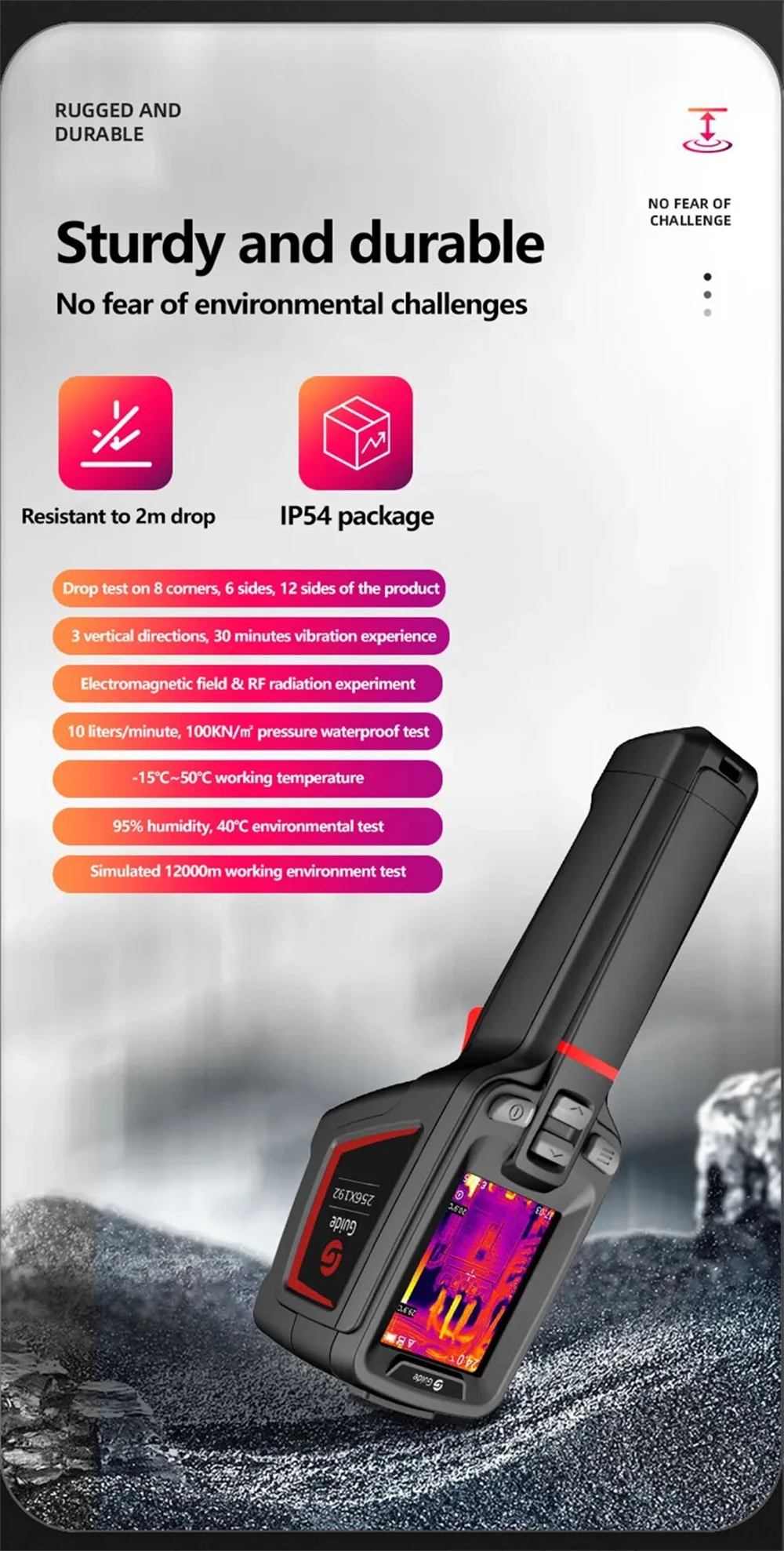

- Rugged and durable: Resistant to 2 meters drop, with IP54 protection rating
- 4 color palettes: All palettes can display the temperature

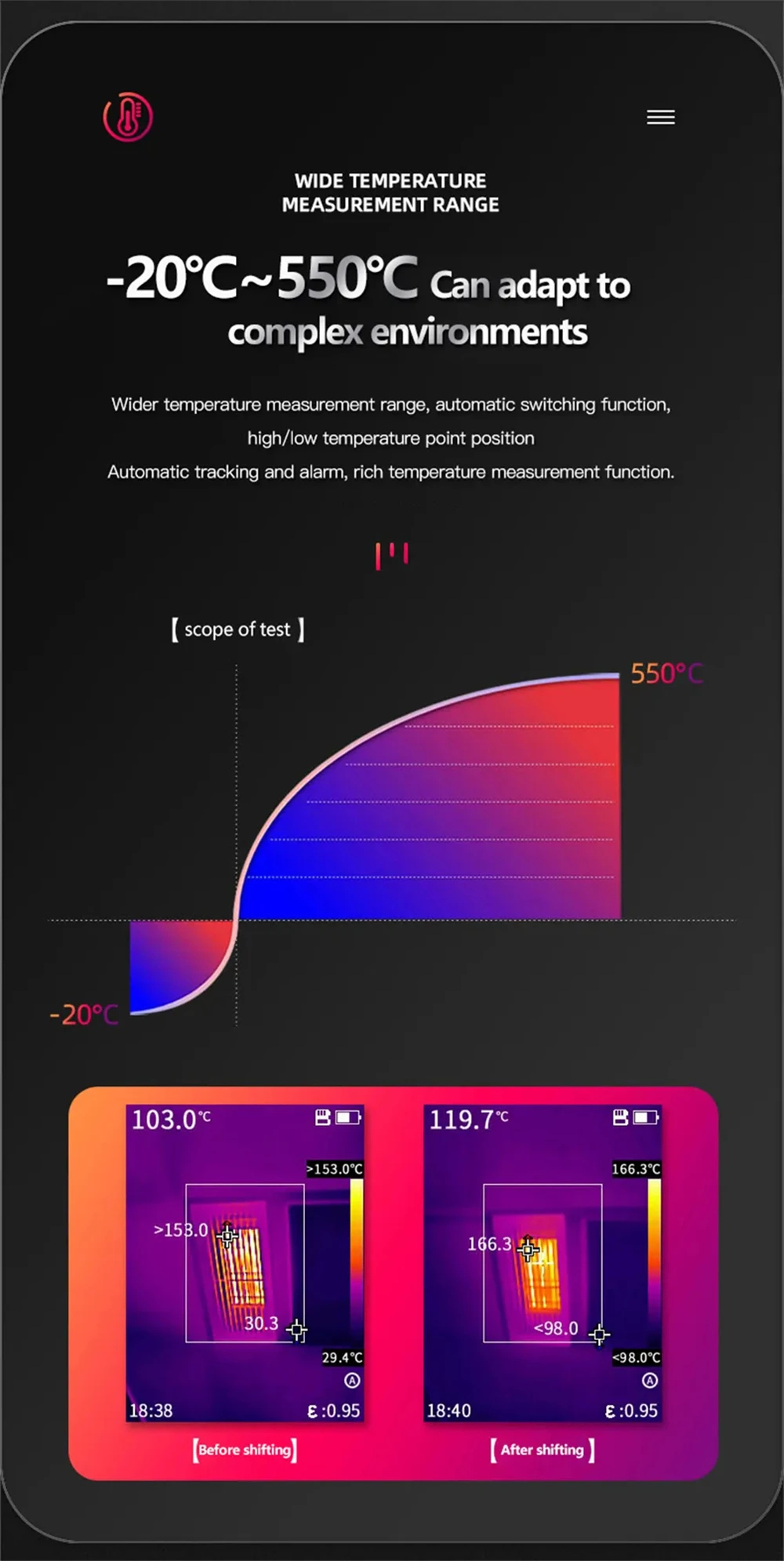

- Wide temperature measurement range: Automatic switching of -20°C to 150°C and 100°C to 550°C
- Type C interface: Easy to transfer data and support PC screen projection

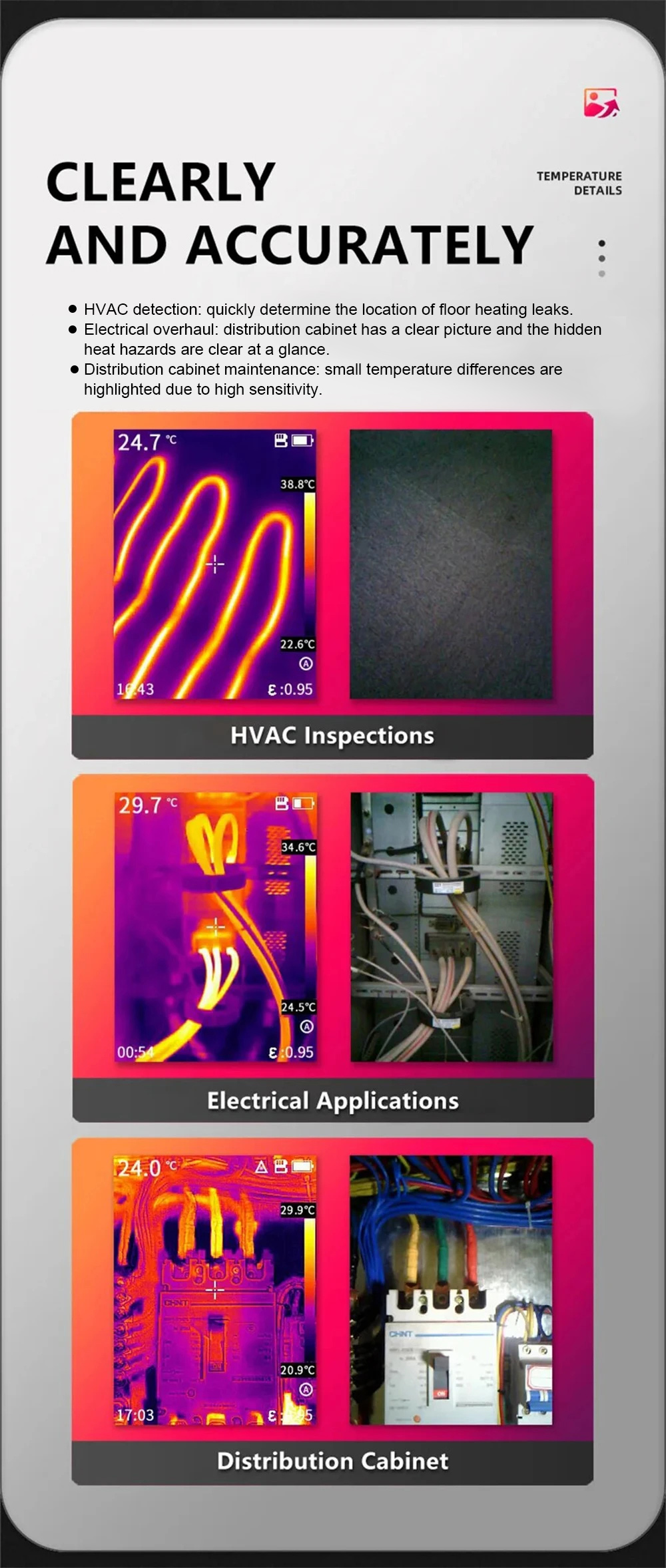

Applications:
- Mechanical & electrical
- Building & HVAC inspection
- Smart manufacturing
- Electrical
Packaging Details:
- G.W.: 0.8kg/1.8lb
Package Included:
- 1 x PC210 main unit
- 1 x Power adapter
- 1 x Type-c to USB cable
- 1 x 16GB TF card
- 1 x Wrist strap
- 1 x User manual
- 1 x Card to download materials
- 1 x Warranty card
