GUSTARD A18 AK4499 DAC Native Balanced DAC Decoder DSD512 Silver Version For Audiophile Music Fans

GUSTARD A18 AK4499 DAC Native Balanced DAC Decoder DSD512 Silver Version For Audiophile Music Fans

Features:
- New A18 adopts XU216, with optical input.
- Native balanced decoder: AK4499EQ, CPLD digital processing, 4-channal 8-way IV, LME49860*4. Active LPF LME49860*2, For XMOS DSD512, PCM768K. AS318-B femtosecond crystal oscillator. For LDAC HD audio transmission. Multiple independent power supplies, abundant energy, TPS7A47, TPS7A33. IIS-H input. Fully balanced, complete four-way output without any conversion. Digital filtering, 6 types of PCM, 2 types of DSD. 0dB to -90dB full-function remote control.
- Leading technology for collecting critical time information, bringing you into the acoustic performance scene. Before using the technology, common digital audio filters would compromise time resolution, and there would be buzzing before and after transients. After using it, compared with 24/192 recording, it reduced the number of vibrations before and after by more than 10 times.
- Make large high-resolution files easy to manage and compatible with any service or playing device. On ordinary players, it plays better than CDs. Using the decoder, it can present complete and rich studio sound quality.
- Products with full decoder can fully expand files to provide the best sound quality. Playing at this level, you will hear the original sound created by artists in recording studios, with accurate files and platform-specific DAC compensation and management.
- AK4499EQ: Flagship decoder chip, completely independent power supply, independent grounding, to obtain excellent performance.
- CPLD programmable logic chip, professional customized HIFI system. Self-constructed digital integrated circuits with logic functions, clock management, 2ND PLL digital shaping, DOP demodulation, PCM/DSD depop switch and other exclusive technologies have laid a solid foundation for excellent sound quality.
- Four LME49860 dual op amps form an independent four-way IV, which fully meets the requirements of AK4499 high current.
- Independent voltage stabilization, multiple groups of filtering, left and right separation, no mutual interference.
- Premium linear power supply: Built-in high-quality audio dedicated linear power supply.
- Active LPF circuit uses 2pcs LME49860 dual op amps.
- Adopts 0.1% high precision, low temperature drift resistors.
- Multiple sets of independent power supplies are abundant in energy and do not interfere with each other. Use instrument-level low-noise linear regulators TPS7A47, TPS7A33.
- American femtosecond crystal oscillator AS318-B.
- For LDAC, AAC, SBC, APTX, APTX LL, APTX HD and other high-frequency encoding. For LDAC, it can realize 24B/96K high code transmission.
- USB uses chip XU216, supports PCM768, DSD512.
- Rich digital filtering. PCM 6 types: Short Delay Sharp Roll-off, Short Delay Slow Roll-off, Sharp Roll-off, Slow Roll-off, Super Slow Roll-off, Low Dispersion Short Delay Filter. DSD 2 types: L -BW, H-BW.
- Rich interfaces.
- IIS-H digital interface, ultra-high specification input, reaching DSD 512, PCM768k. Perfectly compatible with GUSTARD interface U16, webcast S16 and other products. Attention: Cannot be used for the HDMI interface of the TV.

Device Parameters:
- Screen can be turned off, brightness can be adjusted. The screen will be turned off automatically if there is no operation for 10 seconds, sampling rate changes or the operation wakes up the screen
- Frequency response: 20Hz-20kHz, +/-0.08dB
- Line output: RCA output level single-ended 3.0 Vrms at 0dBFS, balanced 6.0 Vrms at 0dBFS
- XLR interface definition: American standard
- International voltage AC100V-240V (manual adjustment)

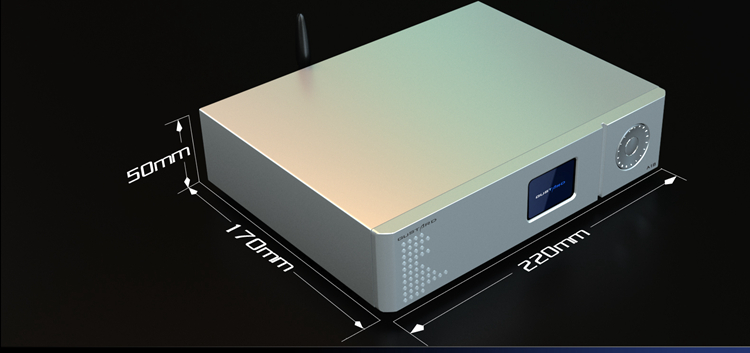

- Machine size (without protrusion size): 220 x 170 x 50MM (WxDxH)

Package Included:

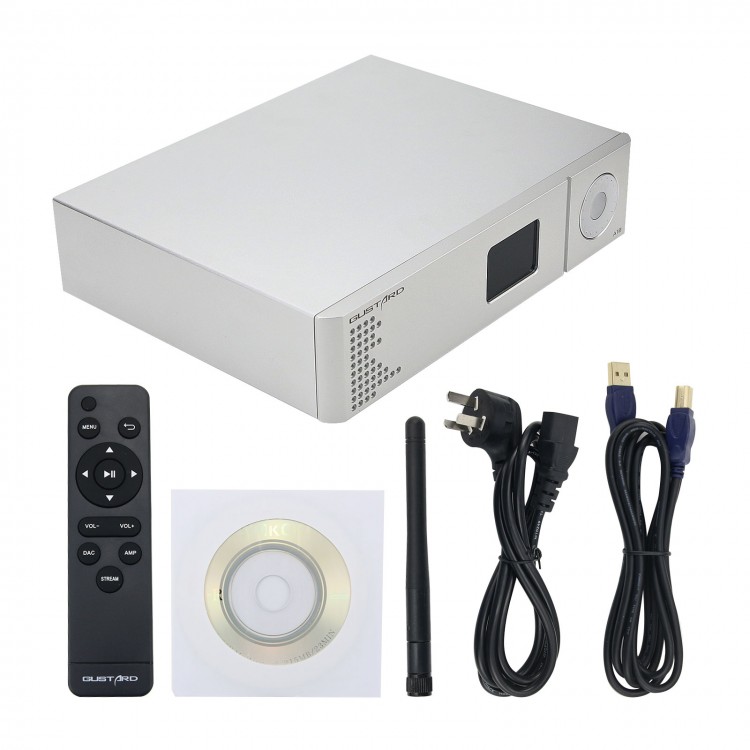

- 1 x Set of DAC

Note:
- The machine in the picture is a prototype, which is slightly different from the mass-produced model. The picture is for reference only and subject to the actual product. We have the final interpretation right of this product.

Plug-in Download Address:
http://pan.baidu.com/s/1kTtk9sb

System for Windows 7/8/10 needs to install a special driver (USB version). Download the driver:
https://pan.baidu.com/s/1d6qvkdBa-tvD1Orwm1bVDw
Password: 0el3
