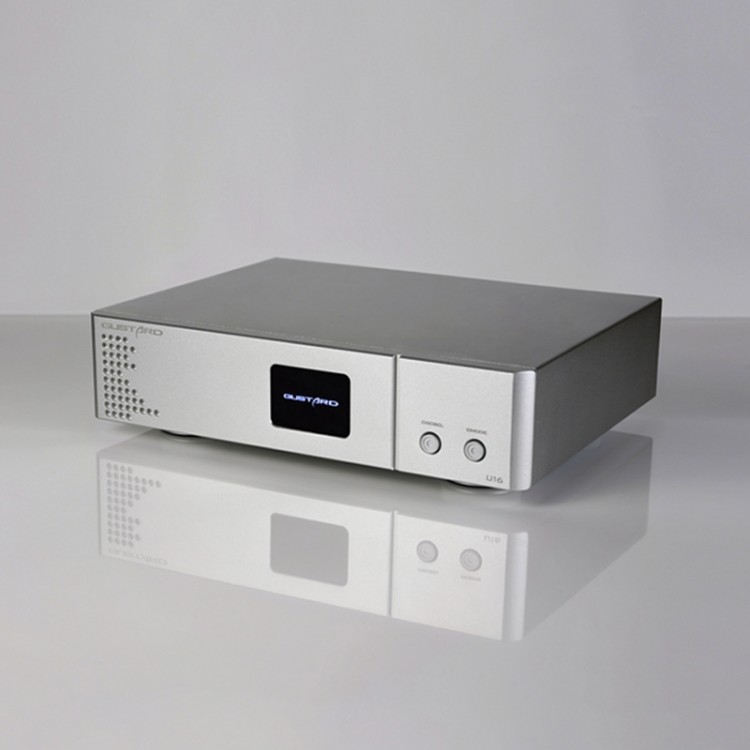

GUSTARD DDC-U16 Digital Interface USB Interface ESS Support PCM32bit/768K DSD512 DOP Native DSD Sliver

GUSTARD DDC-U16 Digital Interface USB Interface ESS Support PCM32bit/768K DSD512 DOP Native DSD Sliver

Digital Input:
USB port: USB Type-B female port, support USB2.0
10M BNC input: input impedance 50 Ohm, 0dBm-16dBm

Digital Output:
•RCA coaxial S/PDIF port: output impedance 75 ohm, output level 500mVpp @75 ohm load
24bit 44.1k-384k/DOP64-128

•XLR AES3 port: output impedance 110 ohm, output level 2.1Vpp @110 ohm load
24bit 44.1k-384k/DOP64-128

•OPTICAL TOSLINK port: 24bit 44.1k-192k /DOP64

•Multifunctional BNC port:
output impedance 75 ohm, S/PDIF output level：750mVpp @75 Ohm load
S/PDIF support specification (when S/P OUT is selected): 24bit 44.1k-384k/DOP64-128
Word Clock output level：3.3Vpp MAX @ noload
Word Clock output frequency (when WCK OUT is selected): PCM: 44.1k-768k.
DSD: 2.82M-22.57M

IIS over HDMI interface (non-standard HDMI interface):
differential I2S signal with LVDS output level,
PCM: 32bit 44.1k-768k, DSD: 2.82M-22.57M (DSD64-DSD512)

Other Specifications:
AC power supply: AC 115V/230V 50/60Hz
Power consumption: <15W
Size: width 220mm * height 50mm * depth 170mm (without protruding parts)
Package size: length 185mm * width 170mm * height 85mm
Package weight: 2.5kg

Features:
All-aluminum chassis with sandblasted surface
No additional drivers required for Mac OS and Linux
Support USB Audio Class 2.0 protocol

Details:
-It adopts ES8620, the latest USB audio interface solution from American ESS, which supports PCM 32bit/768KHz and DSD512 at the highest, and supports DOP and Native DSD at the same time.
-A 128MB SDRAM is used as the system buffer and digital audio processing FIFO.
-Up to 3 FPGA are used to implement the USB audio interface clock management and the external 10M clock part of the audio clock frequency synthesizer, all of which use independent power supply to avoid mutual interference of FPGA internal wiring.
-In the USB audio interface part, an FPGA is used to implement the USB audio interface main control IC to run in Slave mode.
-The audio clock synthesis circuit of the external 10M clock part uses two FPGAs corresponding to the audio master clock frequency synthesizer of 44.1KHz and 48KHz respectively.
-The local audio clock source adopts dual femtosecond clock. This machine uses 2 American ACCUSILICON AS318-B ultra-low phase noise crystal oscillators as the local audio clock source, and the RMS jitter is as low as 88 femtoseconds (10Hz-1MHz)
-Built-in audio dedicated toroidal transformer.

U16 supports 4 types of IIS standard output, which can be switched by long pressing the left button. The following is the introduction of 4 kinds of standards, please confirm the decoding line sequence and adjust to the corresponding standard. IIS that is not in the following 4 standards is temporarily not supported.

HDMI I2S Pin

PS Audio Standard

LKS Standard

Holo Standard

Package List:
-1 x Digital Interface
-1 x Remote Control
