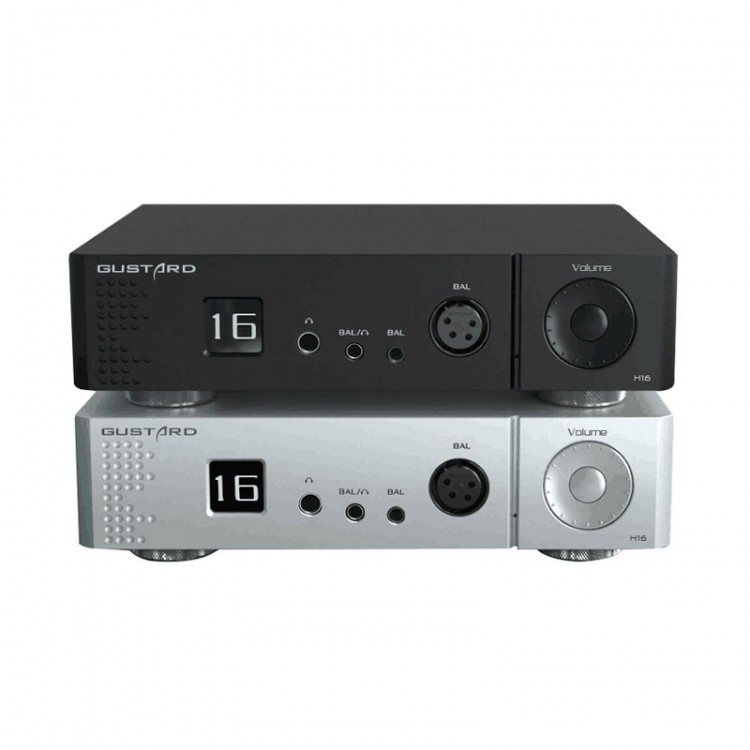

GUSTARD H16 Single Ended Amplifier/Balanced Headphone Amp Remote Control Preamp Assembled Silver

GUSTARD H16 Single Ended Amplifier/Balanced Headphone Amp Remote Control Preamp Assembled Silver

Features:
- Series 1 mini desktop hifi system
- Single-end/balanced headphone amplifier
- H16 headphone amp: It has enough power to drive common headphones on the market. In order to match small earbuds and large earphones, a three-stage gain adjustment is designed. The separate design of single-ended and balanced circuits makes H16 not only an excellent balanced amp, but also an excellent single-ended amp. Driving single-ended high-impedance headphones is still easy, changing the awkward situation that many amps can only have the best performance when driving balanced headphones. H16 has a pre-amplifier output and a remote control, enabling easy connection to active speakers as a volume controller

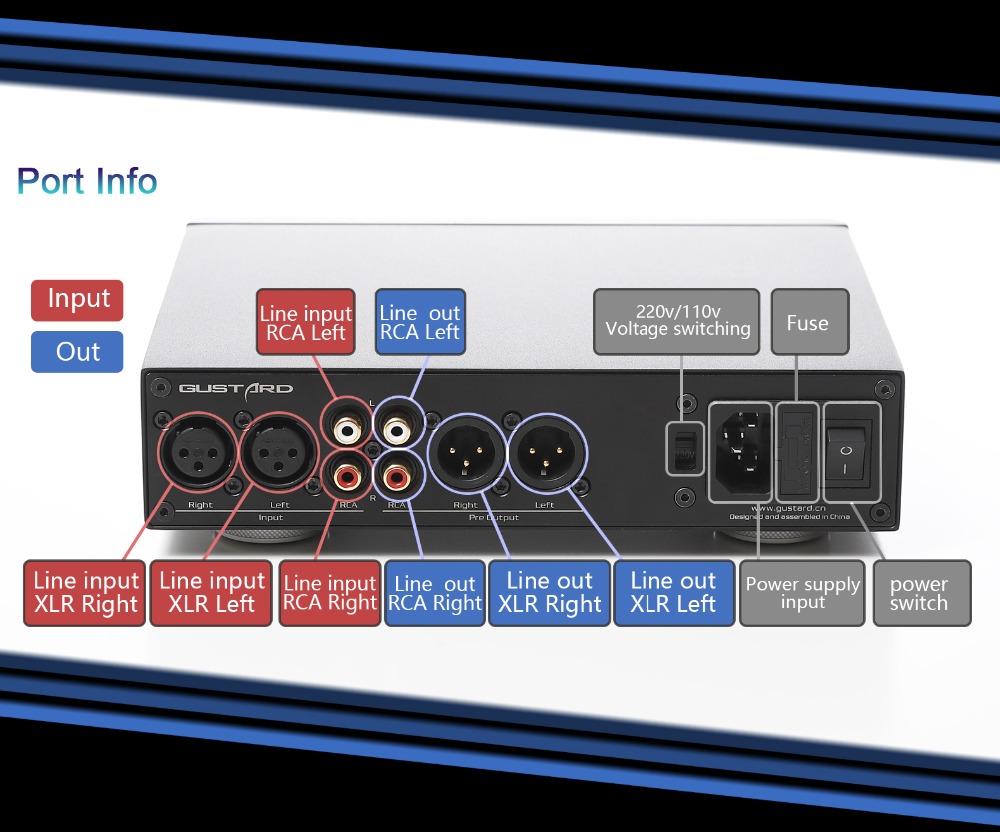

- A variety of headphone jacks, easy to connect to different headphones. Single-end 6.35, balanced 4.4, balanced 3.5pro, and balanced XLR
- Matrix potentiometer: The volume control adopts a matrix relay to ensure the same volume on the left and right, and there is no need to worry about noise bias over time
- Feel comfortable: Taiwan made mechanical encoder enables smooth operation, precise and stable
- FPGA programming: With human-computer interaction system, remote control volume, it can be used as a preamplifier
- Front stage amplifier: The input buffer adopts OPA1642 and OPA1678, the matching impedance is convenient for different front ends, and the compatibility is good
- Three gear gain adjustments to adapt to headphones with different impedances. The pre-amplification and drive circuit adopts LME49722 and LME49724
- Headphone driver stage hybrid circuit: Single-ended and balanced design separately, independent circuit. Single-ended and balanced at the same time have high-power output, thereby driving most of the common headphones

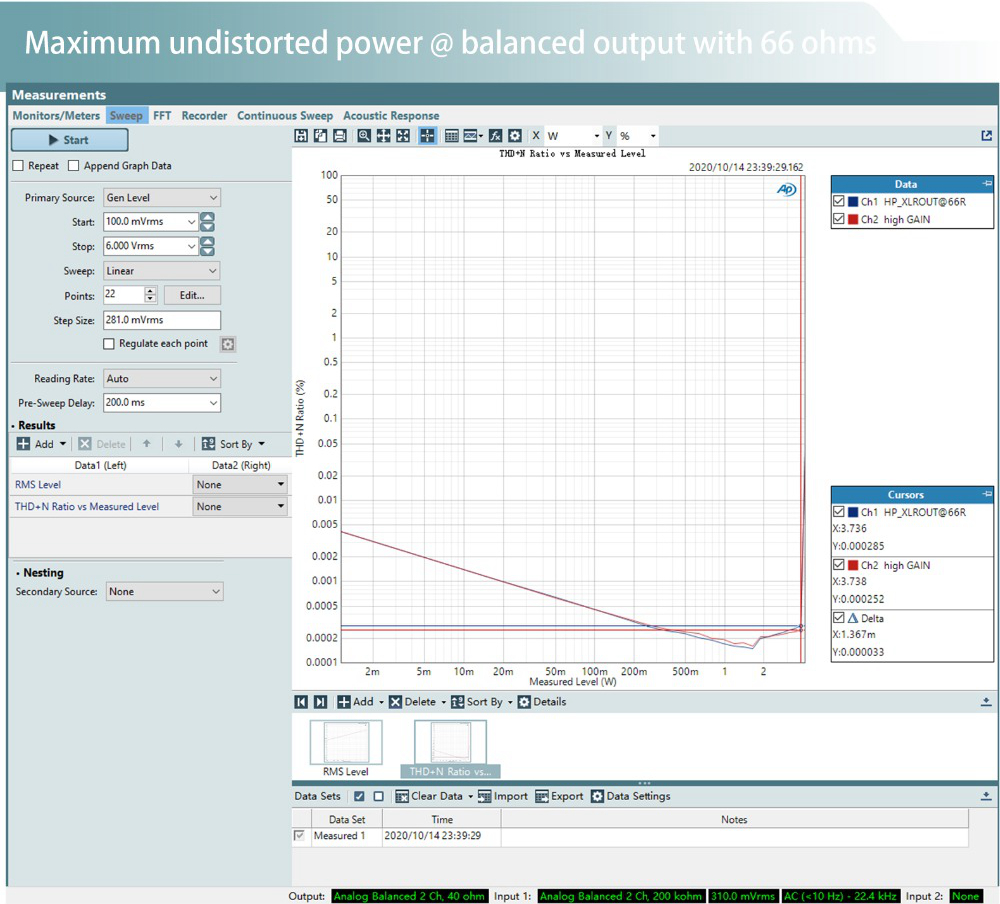

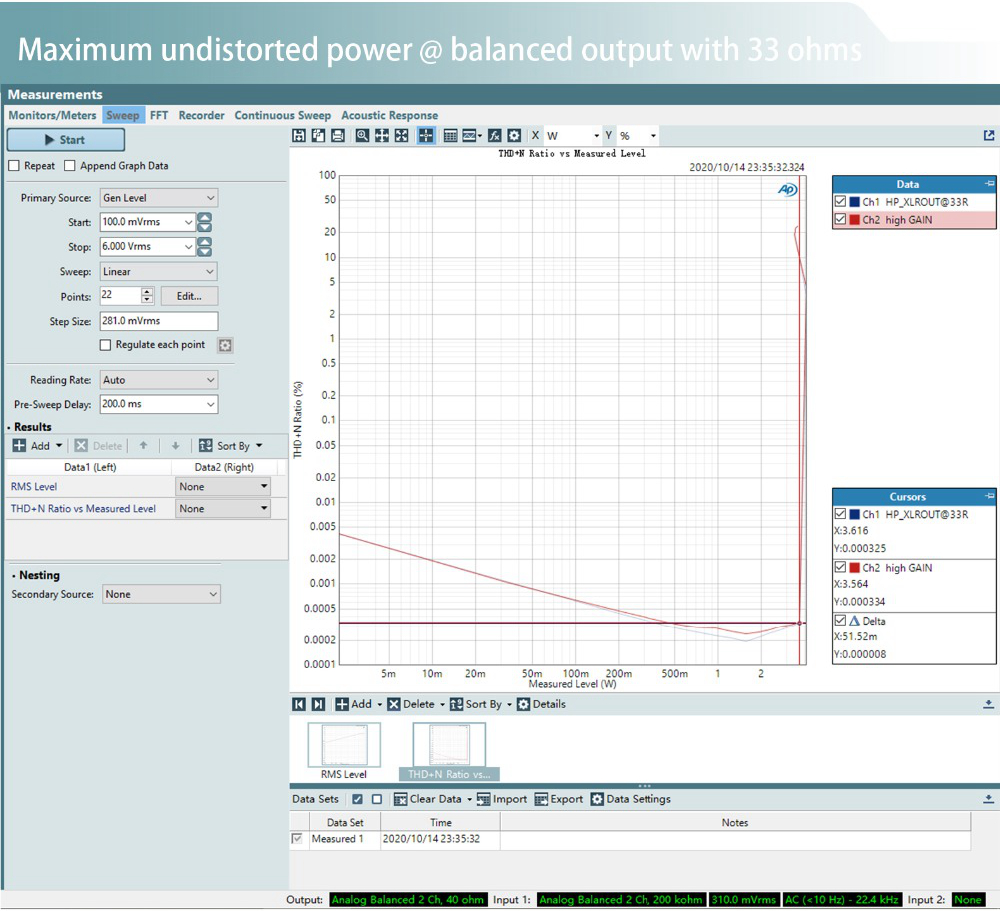

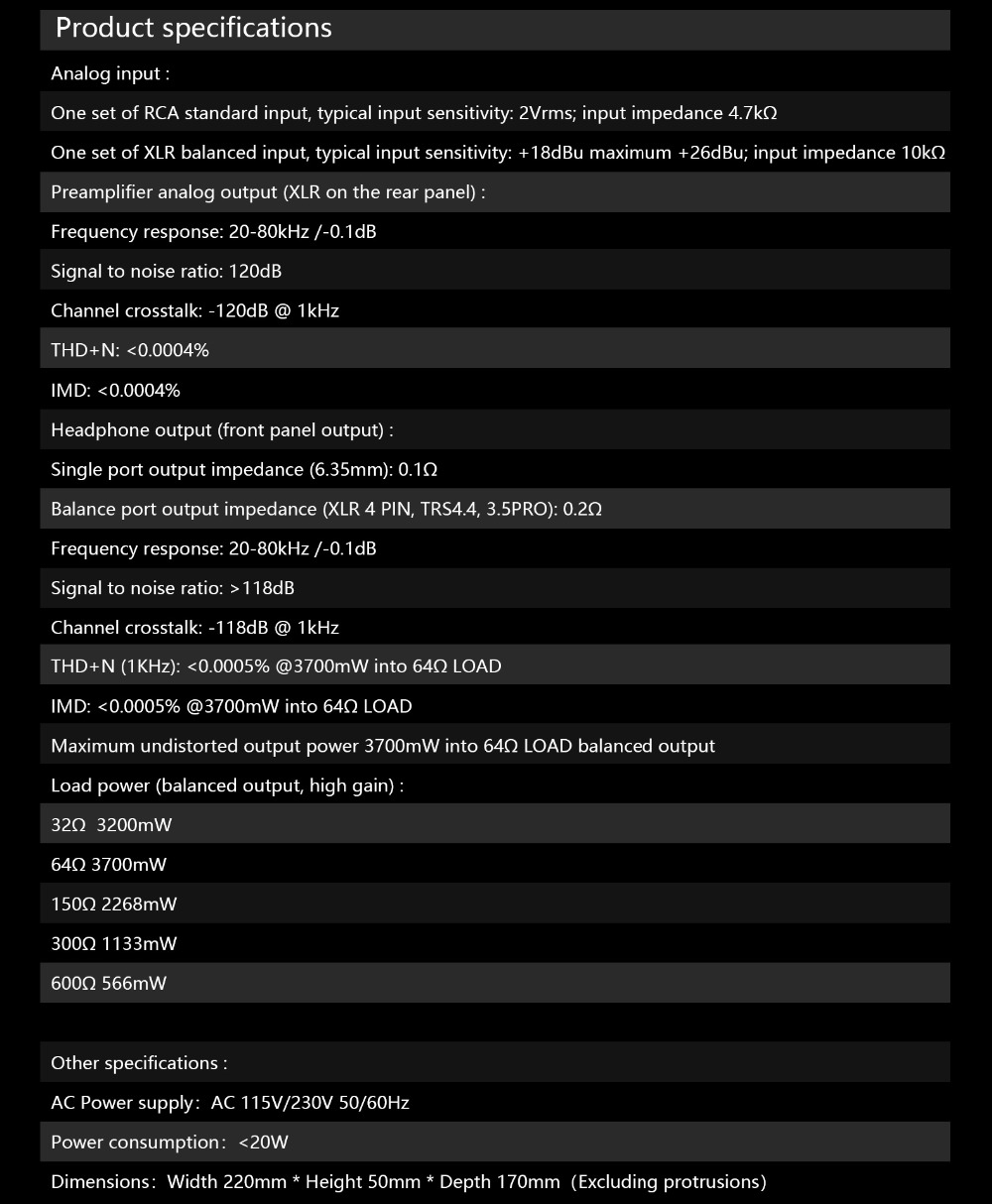

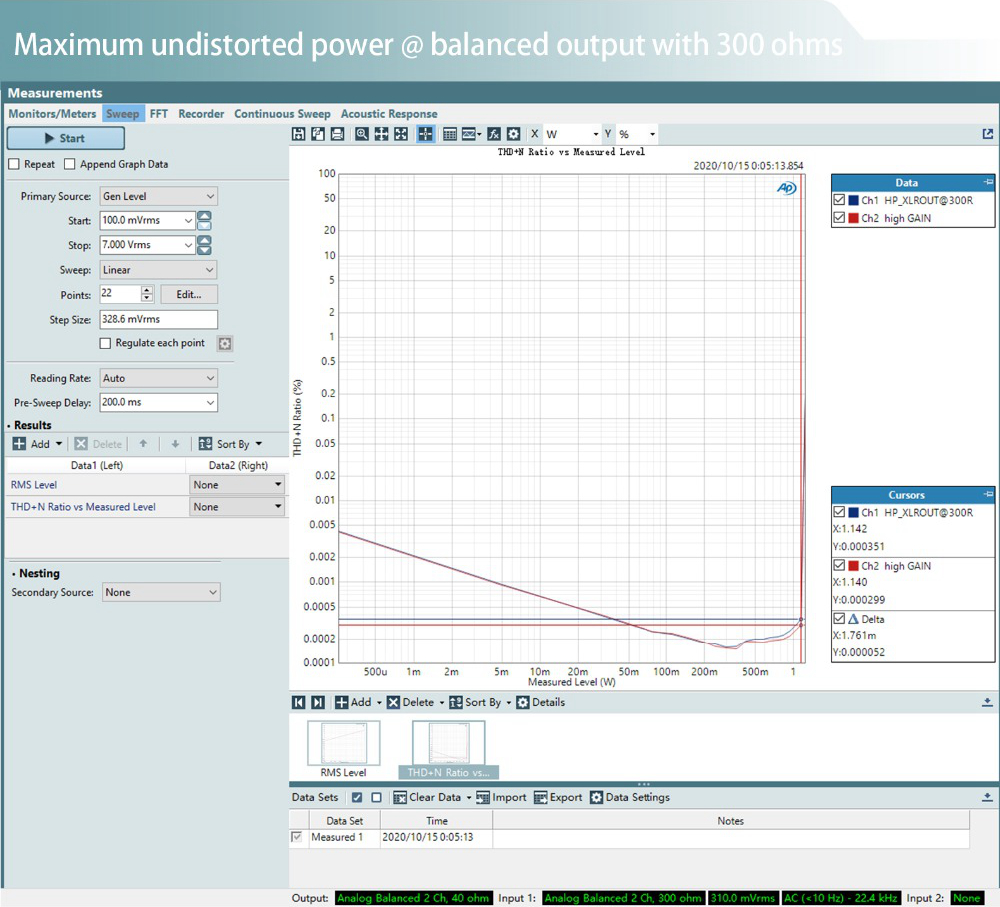

- Load power (Balanced output, high gain): 32Ω, 3200mW; 64Ω, 3700mW; 150Ω, 2268mW; 300Ω, 1133mW; 600Ω, 566mW
- Internal linear power supply: High-quality audio dedicated toroidal transformer

Package Included:
- 1 x Set of Headphone Amplifier

Note:
- It is assembled.
- The machine pictured is a prototype, which is slightly different from the mass-produced model. The pictures are for reference only and subject to the actual product. We have the final interpretation right of this product. Thank you for your understanding!
