GUSTARD X20U Digital Audio DAC Decoder Dual ES9018 w/XMOS USB Input AES EBU Support DSD DOP 32Bit 384KH-White

GUSTARD X20U Digital Audio DAC Decoder Dual ES9018 w/XMOS USB Input AES EBU Support DSD DOP 32Bit 384KH-White

Features:
- Doul ESS Technology Sabre Reference 32bit ES9018 DAC chip,R and L sound Channel one on each side.
- Automatic adaptation master clock technology and Asynchronous master clock technology.
- Two clock mode can be freely selected.
- XMOS 32bit USB receiver chip which is best performance asynchronous USB audio solution.
- CPLD programmable logic device. Soft control ES9018.
- Three files gain, volume can be adjusted. Attenuation adjustable from 0 to -99DB.

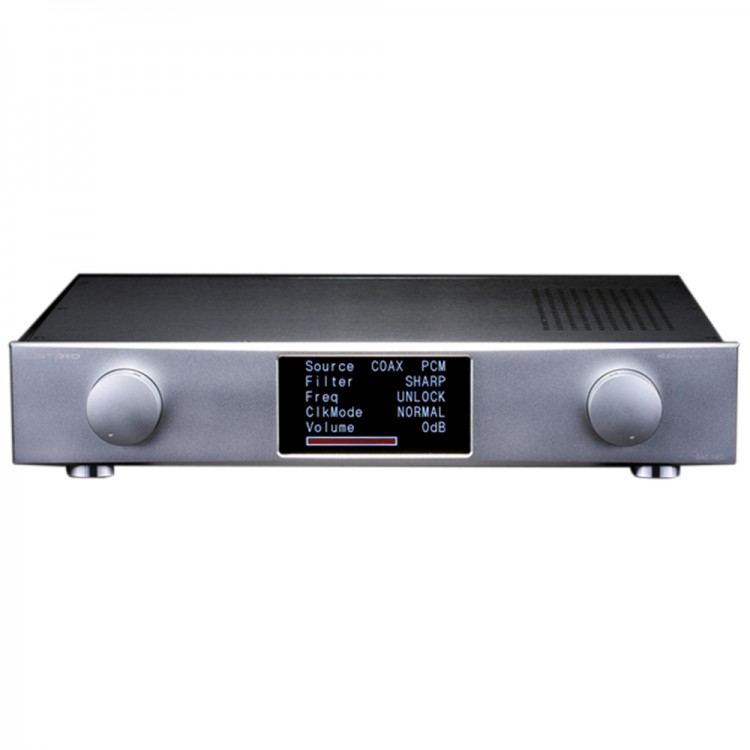

- TFT LCD screen, adjustable contrast.
- Power supply with two O-type transformers, Digital and Analog independent power supply, and use Discrete Components regulation Voltage stabilization.
- Full balance Discrete components Analog Line. Balance / RCA output simultaneously.
- Digital Input: balanced Spdif AES/EBU port, RCA, Toslink Optical input and USB,(Key switch)
- Both 110/120v and 220/240v version supported.
- Power Supply: AC 230V 50 / 60Hz (AC 115V 50 / 60Hz), Power Consumption: <50W
- Dimensions (excluding protruding part): W 380MM * H 65MM * D 260MM
- Color:Black

DAC Specification:
- ESS Technology ES9018 Sabre Reference 32-bit DAC
- 8 mono to 2 stereo configuration,four D/A converters per channel

Digital Input :
Coaxial/BNC:
- PCM:16-24bit /44.1/48/88.2/96/176.4/192 kHz
- DOP: DOP64

Optical:
- PCM:16-24bit /44.1/48/88.2/96/176.4/192 kHz
- DOP:DOP64

AES/EBU:
- PCM:16-24bit /44.1/48/88.2/96/176.4/192 kHz
- DOP:DOP64

IIS:
- PCM:16-32bit /44.1/48/88.2/96/176.4/192/352.8/384kHz
- DSD:DSD64/DSD128/DSD256/DSD512
- DOP:DOP64/DOP128  DOP256/DOP512
- USB:16-32bit / 44.1/48/88.2/96/176.4/192/352.8/384 kHz
- DSDx64(2.8224MHz)/DSDx128(5.6448MHz)

Analog Output:
- RCA Output :2.3 Vrms *0dBFS
- XLR Output :4.6 Vrms *0dBFS
- Frequency  :20-20K Hz +/-0.15dB

- USB 2.0 interface can replay 1BIT/2.8224MHz or asynchronous sampling rate 5.6448MHz DSD Digital Signals.
- This is supported DSD64 and DSD128
- Coaxial / Optic / AES / EBU support DOP64, can connect Digital Music Player playback SACD MUSIC

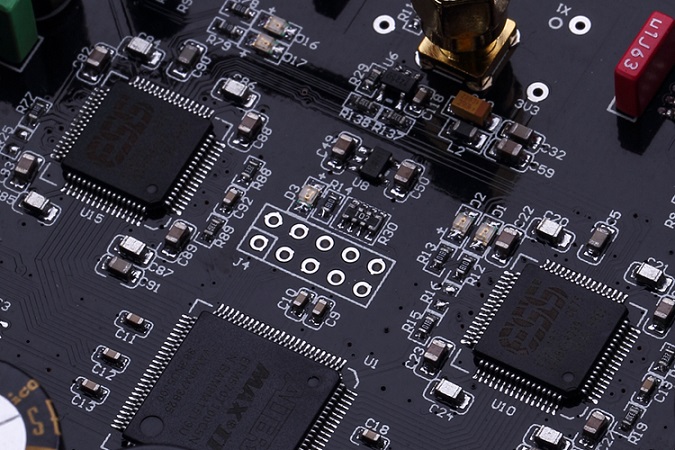

- Main chip: ESS Technology ES9018 Sabre Reference 32bit chip x 2
- Unlike conventional Sigma-Delta D / A converter, ESS Sabre32 use innovative patented circuit,
- Get rid of the ordinary Digital Audio System timebase jitter, get very wide dynamic range, low distortion and accurate sound field.
- Automatic adaptation master clock technology and Asynchronous master clock technology.
- Two clock mode can be freely selected.

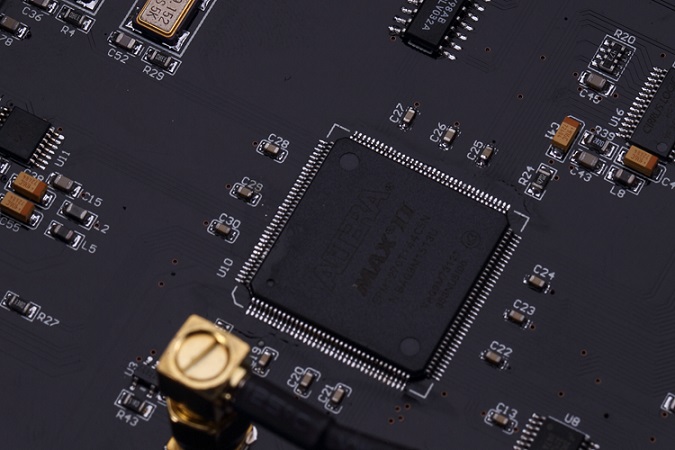

- CPLD Digital Integer technology

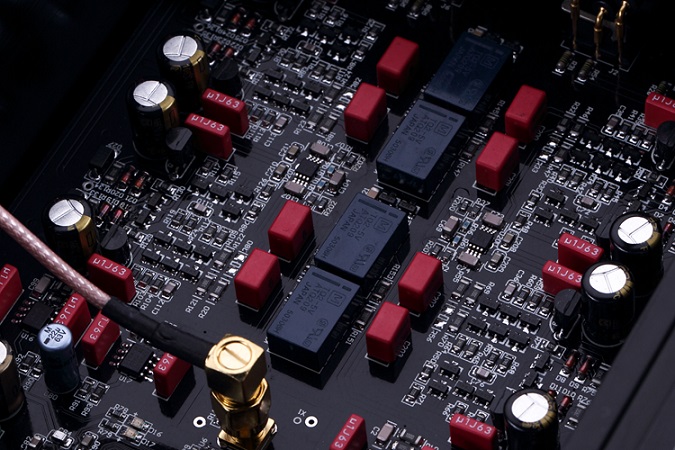

- Full balance Discrete components Analog Line. Balance / RCA output simultaneously.

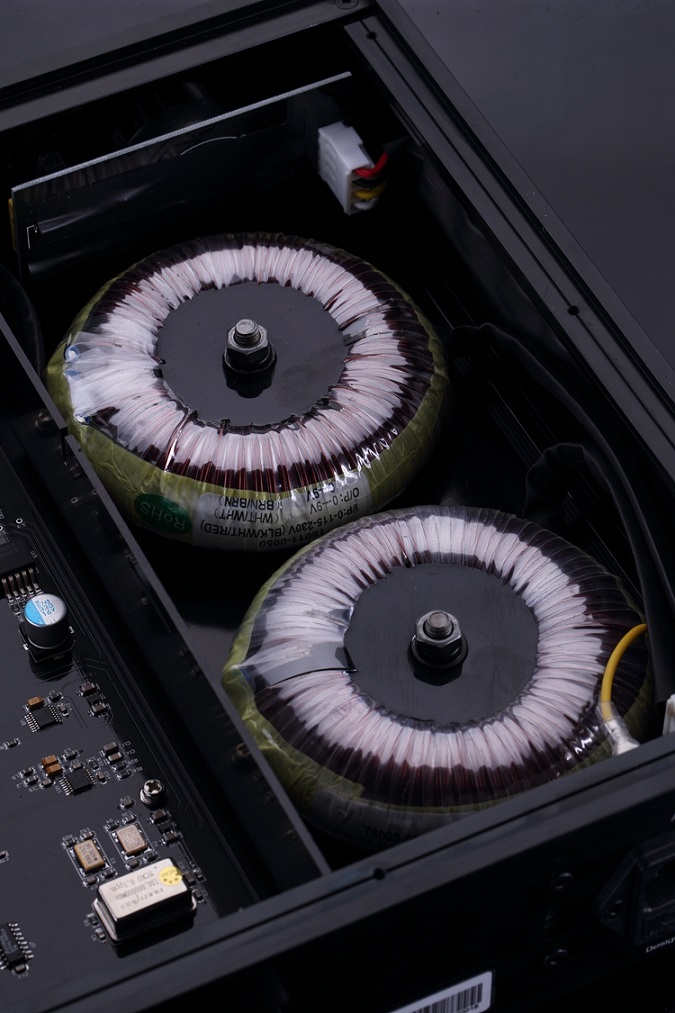

- Two 50W O-type transformers. The best choice for high-end equipment.
- Coupled better and more efficient. A more stable job, to bring you more beautiful sound.

XOMS USB Professional SOUND CARD:
- XMOS X-CORE digital signal processing unit, which have powerful processing capabilities, is by far the most advanced digital audio solution
- USB Audio Class 2.0 implements asynchronous transfer playback, and supports low latency ASIO, KS and other professional audio software interface, support for Windows and Mac operating systems.

Package included:
- DAC-X20U *1
