GW-19x34 Three Diaphragm Coupling 4mm-8mm Flexible Coupler for Servo Step Motor Encoder CNC

Availability: In stock, usually dispatched in 1 business day

  • Price:$2,038.00
  • Price in reward points: 20380 Reward Points: 204
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,997.24 $1,956.48 $1,895.34 $1,813.82 Contact US
Quantity:

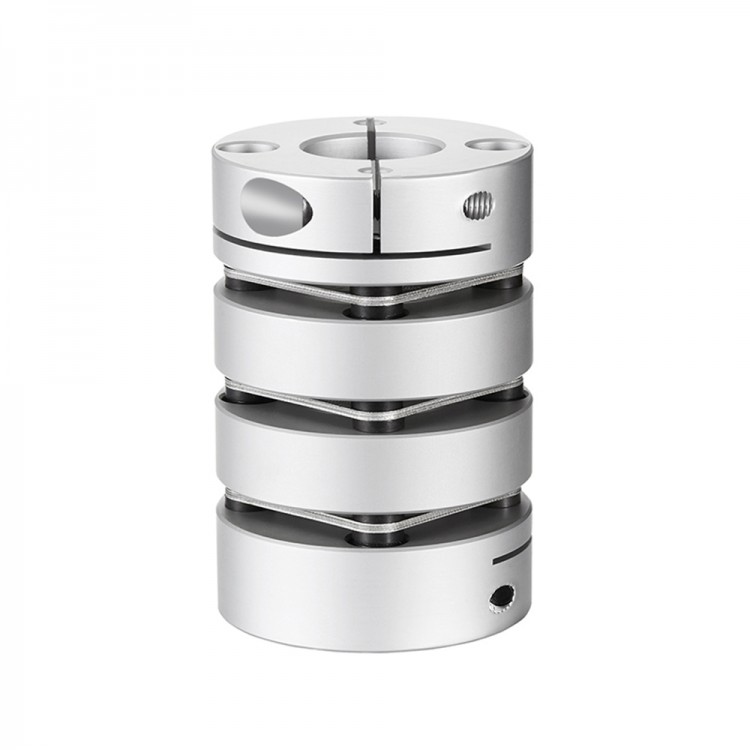

GW-19x34 Three Diaphragm Coupling 4mm-8mm Flexible Coupler for Servo Step Motor Encoder CNC

Feature:

- Material: Stainless Steel
- No gap between the axle and the axle sleeve
- For servo motor and stepper motor
- Compensating radial, radial and axial deviation

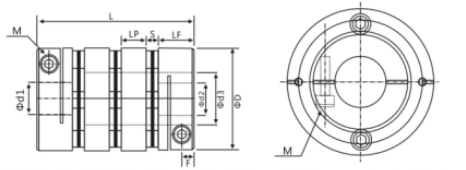

Specification:

- Model: GW-19x34
- For inner hole diameter: 4mm-8mm
- For d1,d2 shaft diameter (mm): 3,4,5,6,6.35,8,7
- D:19mm
- L: 34mm
- LF: 9.1mm
- LP:5.2mm
- F: 3.3
- S: 1.8mm
- d3: 9mm
- M: M2.5
- Torque:1N.M

Tech parameter:
- Rated torque: 1N.M
- Maximum speed:10000rpm
- Radial deviation torlerance: 0.12mm
- Deflection torlerance: 2degree
- Axial deviation torlerance: +0.2mm
- Static torque: 140N.M/rad
- Inertia torque:1.1x10-6kg/m2
- Sleeve material: Aluminum alloy
- Surface process: Anodic oxidation treatment
- Weight:18g

Packing Content:
- 1 x Coupling
