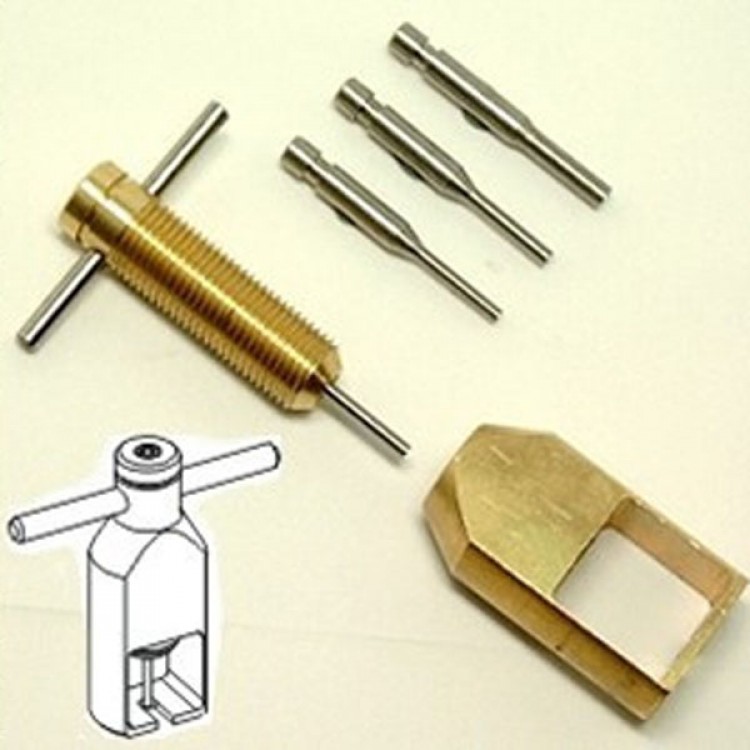

GWS Gear Puller Tool Set Micro GW/GP-MICRO
Features:
- GWS Gear Puller Tool Micro GW/GP-MICRO
- Used to remove pinions from electric motors with shaft sizes of 1.0mm-2.2mm
- Pinions can be removed with selection from 1 of 3 included tail spindles
- Brass puller body and guide bolt
- All metal construction
GWS GW/GP-MICRO Specifications:
SHAFT CODE |
SHAFT DIMENSION |
MOTOR SHAFT DIA. |
C1 | 0.9 mm | 1.0~1.4 mm |
C2 | 1.3 mm | 1.5~1.9 mm |
C3 | 1.8 mm | 2.0~2.2 mm |
