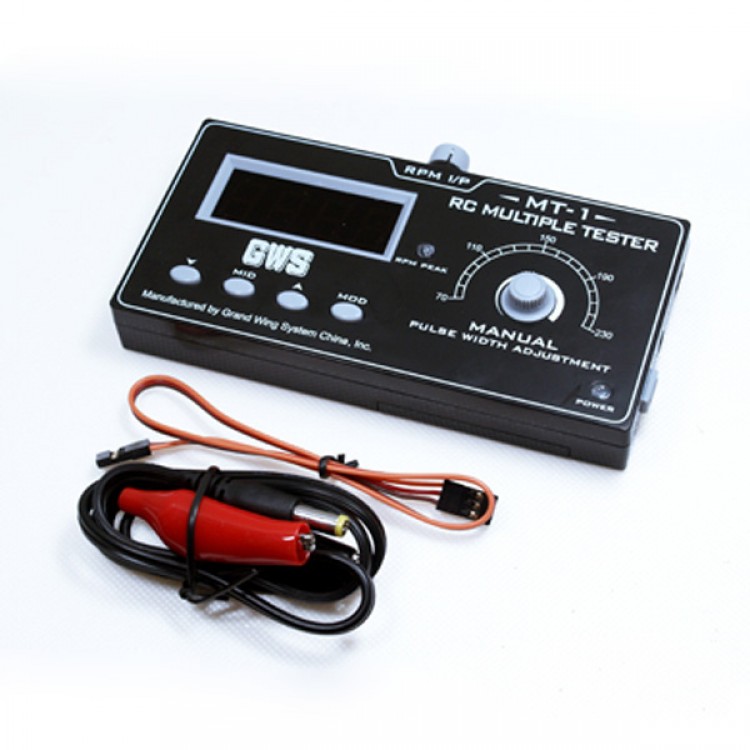

GWS MT-1 RC Multiple Tester Speed Tester for Servo
Specfications:
- Size: 140 x 70 x 20 mm / 5.51 x 2.76 x 0.79"
- Weight:110g / 3.89 oz( Batteries not included)
Features:
- Shiny 4 digits red LED's to display the measured values.
- Power source can be from UM-4 / AAA cell x 4,or an adapter with 7-15V or BEC(5V) from an ESC.
- An output port for applying Postitive/Negative signals of Pulse Width from this tester.
- Four buttons for setting up functions and modes.
- Portable and durable tester
Functions:
- To measure the directions/range of rotation of servo.
- To test the sensitivity of servo(1 μ S per step minimum).
- To test the rotations of servo automatically or manually.
- To measure the pulse width coming from receiver.
- To measure the pulse width transmitted by transmitter for up to 9 channels.
- To measure RPM of a spinning propeller -for 2-6 blades ones,to show RPM measured promptly,and or set the peak RPM value as well.
- To measure the spinning propeller up to RPM 99990.
