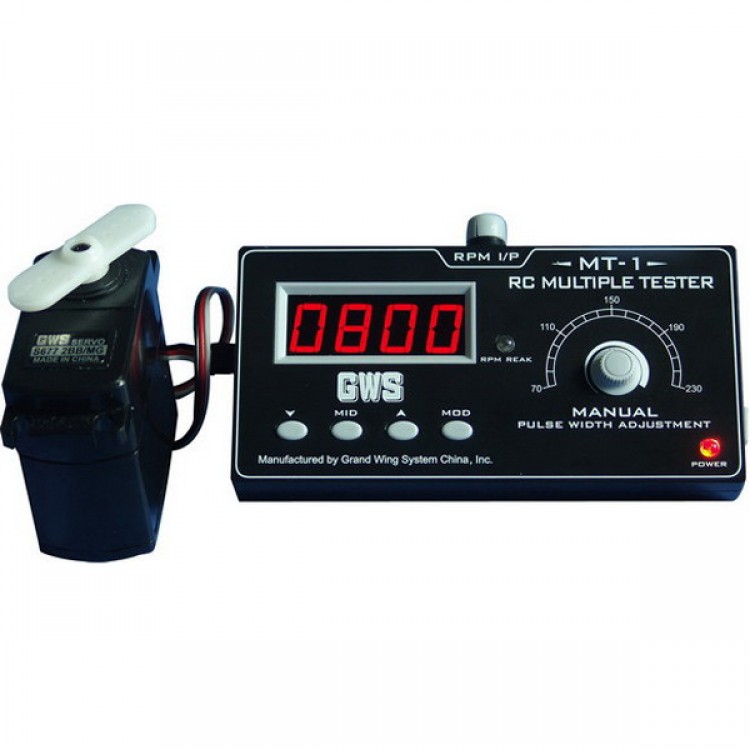

GWS Multi-Tester MT-1 Servo Receivers 4 LED DC 7-15V
MT-1, the Multi-Tester,a more advanced tester for servos and rotating propeller. MT-1 (GWRMT001) is the newly designed/made multi-tester. It comes with more advanced functions than what on the old Servo Tester.
Features:
- Portable and durable tester.
- Shiny 4 digits red LED's to display the values measured.
- Power source can be from UM-4 / AAA cell x4, or an adapter with 7-15V or BEC (5V) from an ESC.
- An output port for applying Positive/Negative signals of Pulse Width from this tester.
- Four buttons for setting up functions and modes.
Applications:
- To measure the Pulse Width transmitted by Transmitter for up to 9 channels.
- To measure the Pulse Width sent from Receiver.
- To test the rotations of Servo automatically – at the pulse widths of top, medium and low points set by user already.
- To test the automatic rotations of Servo.
- To test the rotations of Servo by turning the knob on the tester manually .
- To test the sensitivity of Servo (1μS per step minimum).
- To measure RPM of a spinning propeller – for 2 – 6 blades ones, real time RPM value shown/to set the peak RPM value up to 99990 per minute.
Specifications:
- Size: 140 x 70 x 20mm ( 5.51 x 2.76 x 0.79" )
- Weight: 110g / 3.89 oz (Batteries not included)
Package included:
- 1 x GWS Multi-Tester MT-1 for Servo Receivers
