GX588 Portable 18650 Battery Spot Welder Spot Welding Machine Set With OLED Display For 0.2MM Strip
Features:
- CNC intelligent 5th generation spot welder series GX588
- 0.5 millisecond CNC step spot welding machine with more accurate gears to weld various materials
- Large color OLED screen display everything in a clear way. Display electric quantity, welding delay time, voltage, gear, etc.
- Built-in power bank function
- 110 steps stepless fine adjustment, millisecond adjustment to adapt to various scenes
- 600A automotive power grade battery has amazing current effect
- Pure copper penholder and imported solder pin, featuring good electrical conductivity and long service life
- Professional-level open tuning
- Can be used for welding mainstream mobile phone batteries, such as for Apple, Xiaomi, Meizu an Vivo
- Widely used. Gear 1-20 is suitable for welding thin nickel sheets and mobile phone battery motors. Gear 20-80 is suitable for welding medium thickness iron sheets and nickel sheets. And gear 80-120 is suitable for welding thick nickel sheets and iron sheets
- Fast charging is completed in 2 hours. 2.1A high-current fast charging compatible with all mobile phone charging heads (The above data comes from the laboratory and is for reference only. The charging time is subject to actual use)
- Automatic shutdown time can be set
- Switch between Chinese and English menu

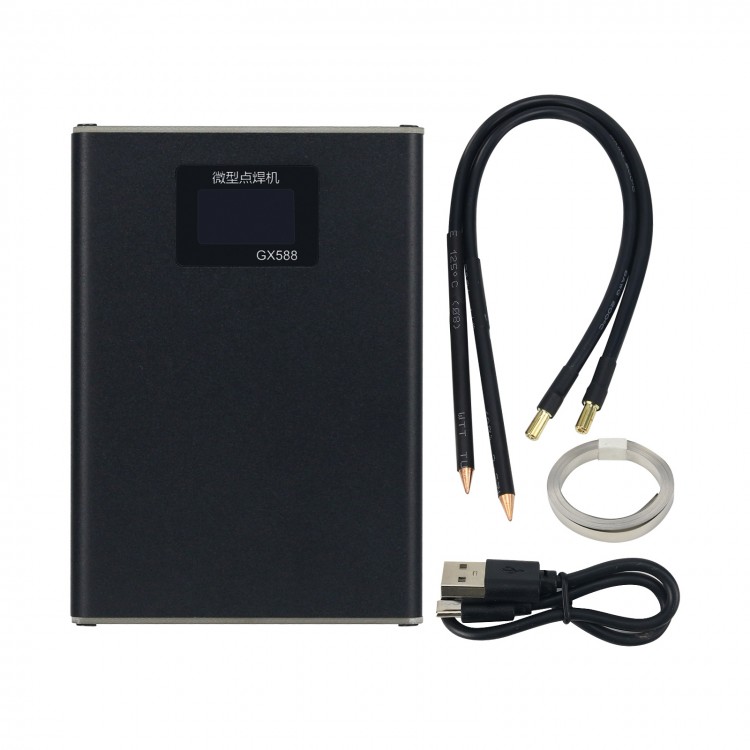

Package Included:
- 1 x OLED Host
- 2 x Welding Pens
- 1 x USB Charging Cable
- 1 x 5M/16.4FT Nickel Strips

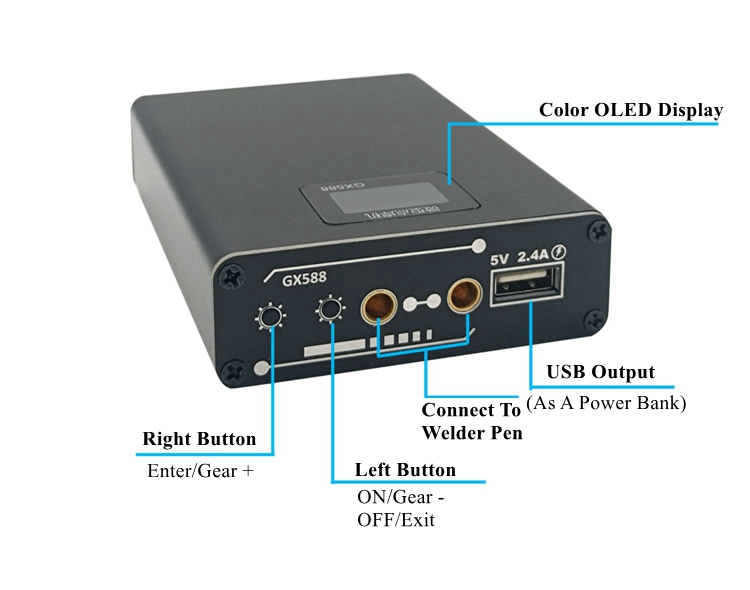

* Color OLED Display: show parameters and status options.

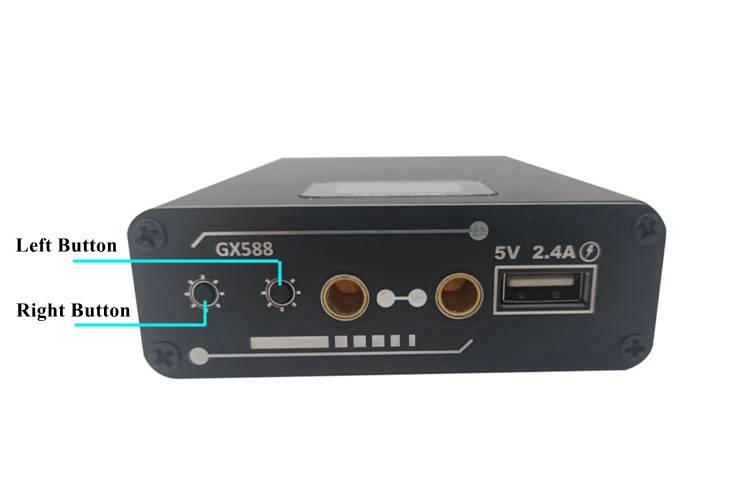

* Right Button: Enter/Gear + button. You can enter and do settings.
* Left Button: Switch, Exit and Gear - button.
* Connect To Welder Pen: Ports to connect to the welding pens.
* USB Output: It functions as a power bank, suppling electricity to external devices.

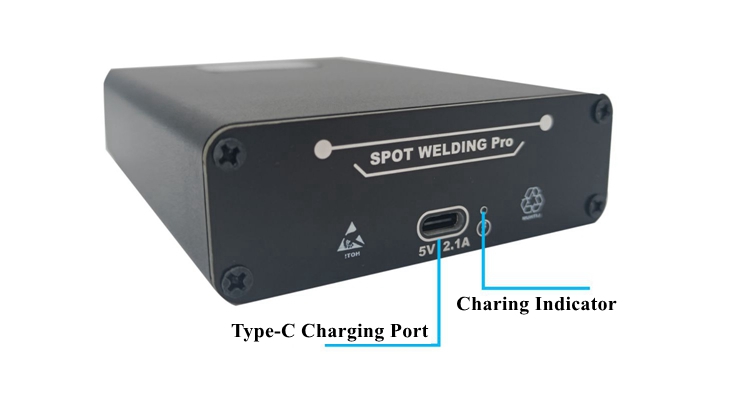

* Type-C Charging Port: It can be charged with a mobile phone charger, supporting all mobile phone chargers including fast charge ones.
* Charging Indicator: When indicator light flashes, it means it is charging. When the light is always on, it indicates that charging is finished.
* When charging, a battery icon on the screen will show charging status.
1. Gear +: Short press the left button once to increase 5 gears. A total of 110 gears. The 110th gear boasts the strongest welding ability.
2. Gear -: Short press the right button to decrease 1 gear, which can be used to fine-tune the welding strength.
3. ON/OFF: In the main interface, long press the right button for more than 2 seconds to shut down. When it is off, you can turn it on by pressing and holding the right button.
4. Enter Advanced Settings Menu: long press the left button for more than 2 seconds to enter the menu (inexperienced people are advised not to adjust the advanced settings).
5. After Entering Setting Menu: short press the left button to page down, or short press the right button to page up. Long press the left button to enter its submenu, and long press the left button to exit the menu and automatically save the settings.
