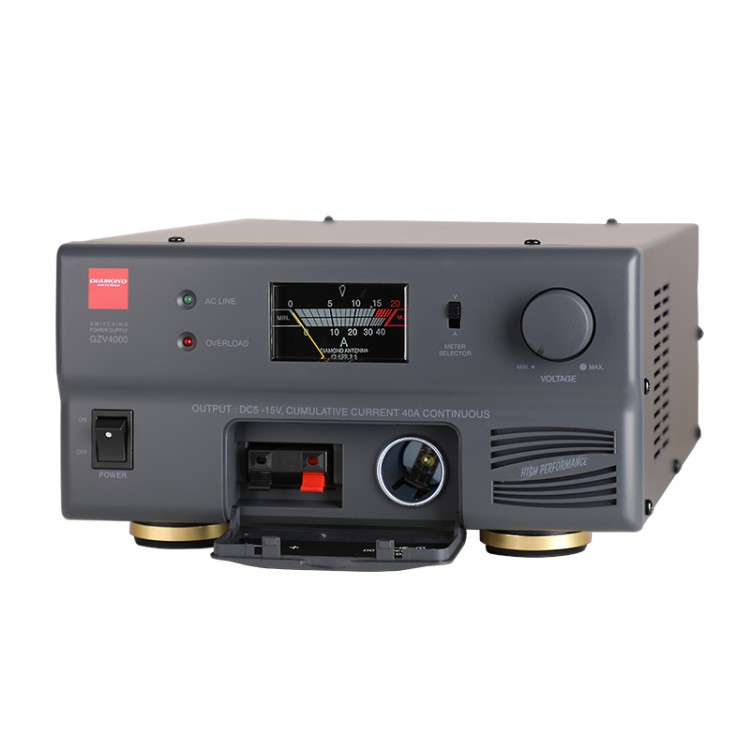

GZV4000 220V 40A Switching Power Supply For DIAMOND ANTENNA Base Station Walkie Talkie
Features:
- Multiple outputs
- Small and light
- 6A small current output
- Voltage and current switch
- 10A cigarette lighter interface
- Adjust output voltage 5~15V via a knob
- 40A continuous current output. Suitable for shortwave communication
- With a built-in loudspeaker. Connected with an audio cable, it can be used as an external speaker for radio station
- Hidden front panel design. The front current output interface can be hidden, making it visually more tidy
- Stable performance; high efficiency and energy saving
- Overload protection. With a foldback circuit, its OVERLOAD warning light will light up when overloaded
- With over-temperature protection. Real-time temperature monitoring
Product Parameters:
- Input voltage: 220V AC
- Output voltage: adjustable DC 5-15V
- Output current: 40A (continuous)
- Ripple and noise: ≤ 8mVr.m.s
- Linear adjustment rate: 180mV (±5%)
- Load regulation rate: 180mV (0~100% load change)
- Audio plug: diameter 3.5mm
- Dimensions: 210 x 300 x 110mm/8.3 x 11.8 x 4.3" (WxDxH)
- Length of power cable: 2.2m/7.2 ft
- Weight: 3.5kg/7.7 lb
Package Included:
- 1 x Set of Switching Power Supply
