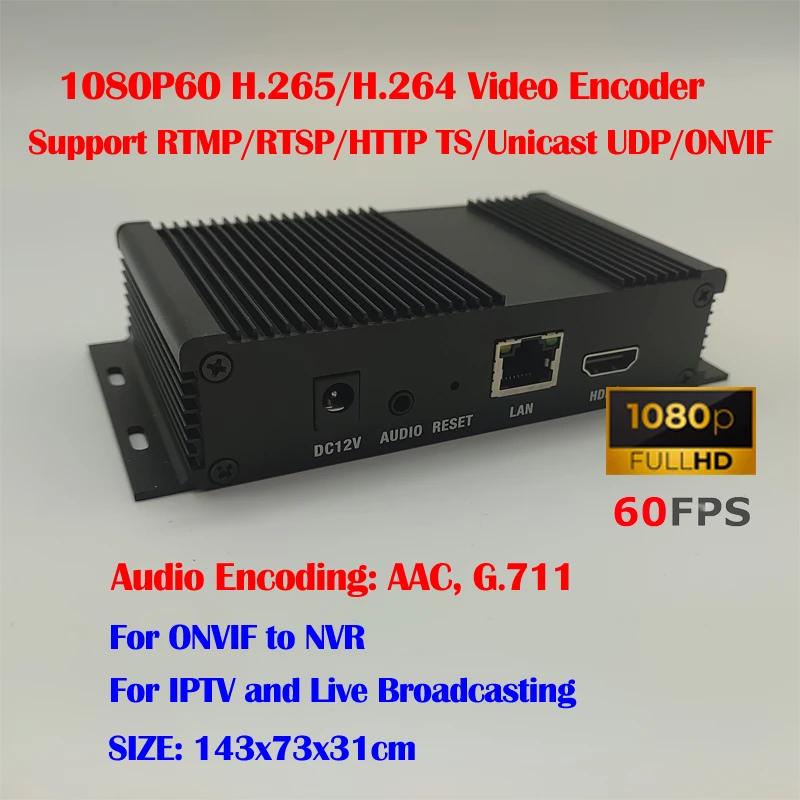

H.265/H.264 HDMI-compatible High Definition Video Encoder 1080P/60FPS HDMI-compatible to IP Support for RTSP/RTMP/HTTP/UDP/ONVIF

H.265/H.264 HDMI-compatible High Definition Video Encoder 1080P/60FPS HDMI-compatible to IP Support for RTSP/RTMP/HTTP/UDP/ONVIF

Features:
- HDMI-compatible high-definition signals are encoded and compressed to output international standards H.265 and H.264 video, audio AAC, G.7111, etc.
- 1080P at 60fps. The input and output resolution supports up to 1080P (1920x1080, 1280x720, 720x576), and the frame rate supports up to 60fps.
- One main stream and one sub stream can be independently configured.
- Support external Audio IN input, switch with HDMI-compatible audio, choose between two options.

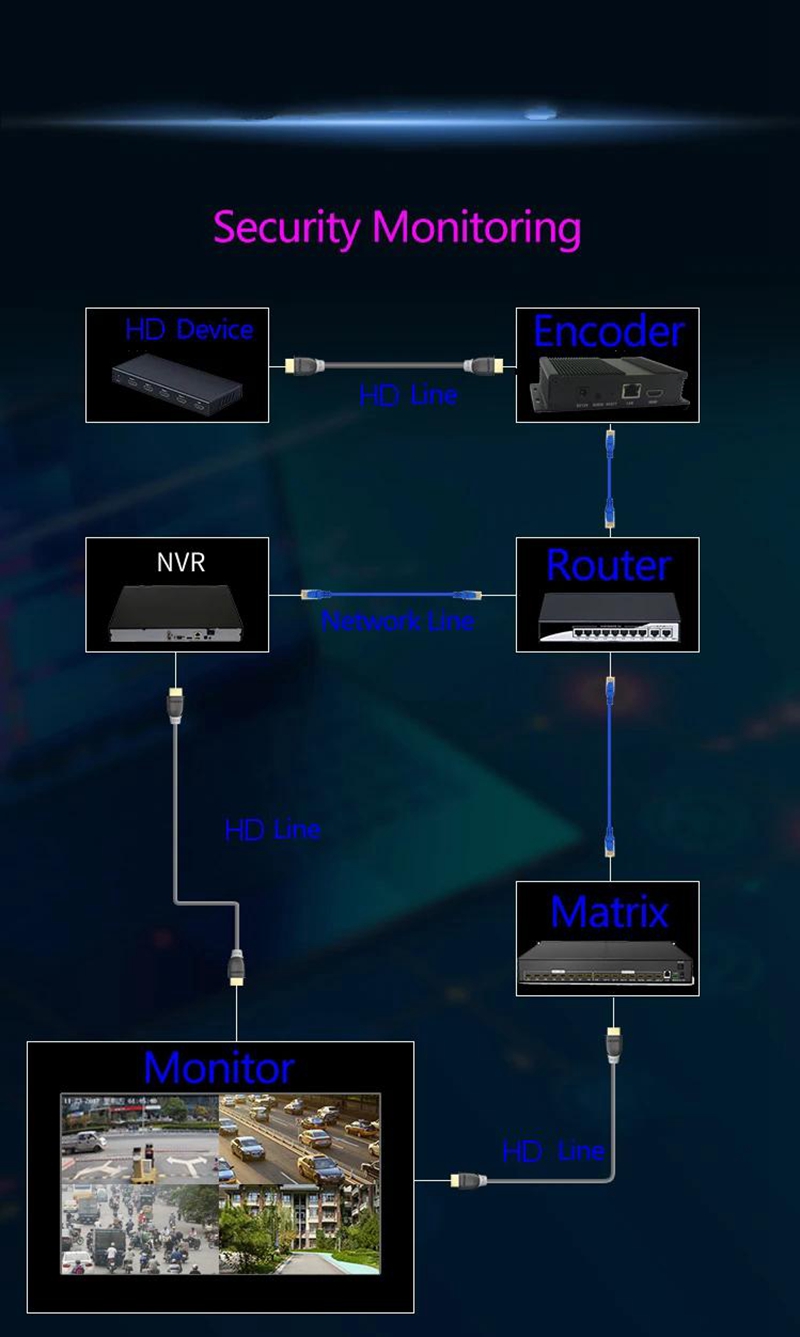

- The ONVIF protocol network connects hard disk recorders or decoders, decoding matrices for Dahua, Hikvision, and Uniview.

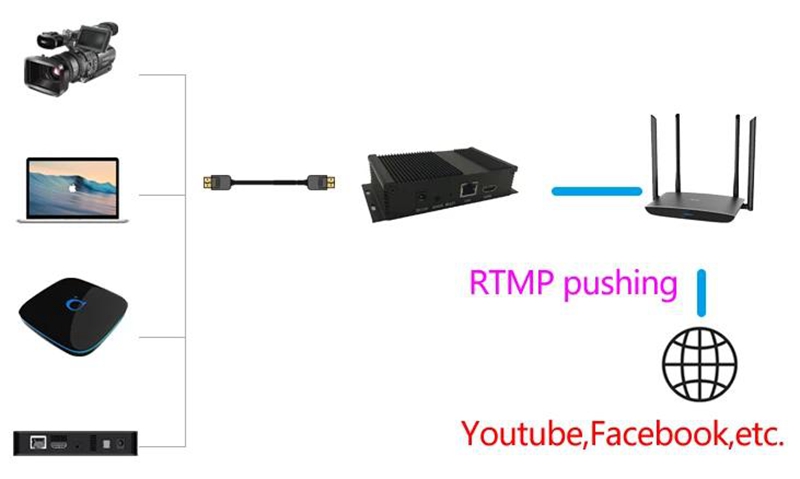

- RTMP streaming live broadcast supports most cloud platforms, for Welike, Alibaba Cloud, Aodian Cloud, Qiniu Cloud, Mudu Cloud, Tencent Cloud, Taobao, Douyu, Huya, Bilibili, Tiktok, Kwai, Youtube, Facebook, WOWZA, Twitter, SopPlus, etc.
- HTTP/RTSP/UDP unicast generates IPTV network streaming addresses, which can realize conference live streaming, docking with broadcasting and television equipment, video conferencing, remote medical care, etc.
- Web page control method.
- Network IP can be configured arbitrarily.
- Product size: 143 x 73 x 31mm
- Chinese/English interface.

Pull Stream Address Examples:
- RTSP address: rtsp://192.168.1.168:554/main
- UDP-TS unicast address: udp://192.168.1.98:20000
- HTTP-TS address: http://192.168.1.168:8081
- HTTP-FLV address: http://192.168.1.168:10100/stream/media.live.flv
- HLS m3u8 address: http://192.168.1.168:10100/stream/media/hls.m3u8

Push Stream Address Example:
- rtmp://p1bj.weizan.cn/v/xxxxx_149690778246506326?t=260e1

Package Included:
- 1 x Video Encoder

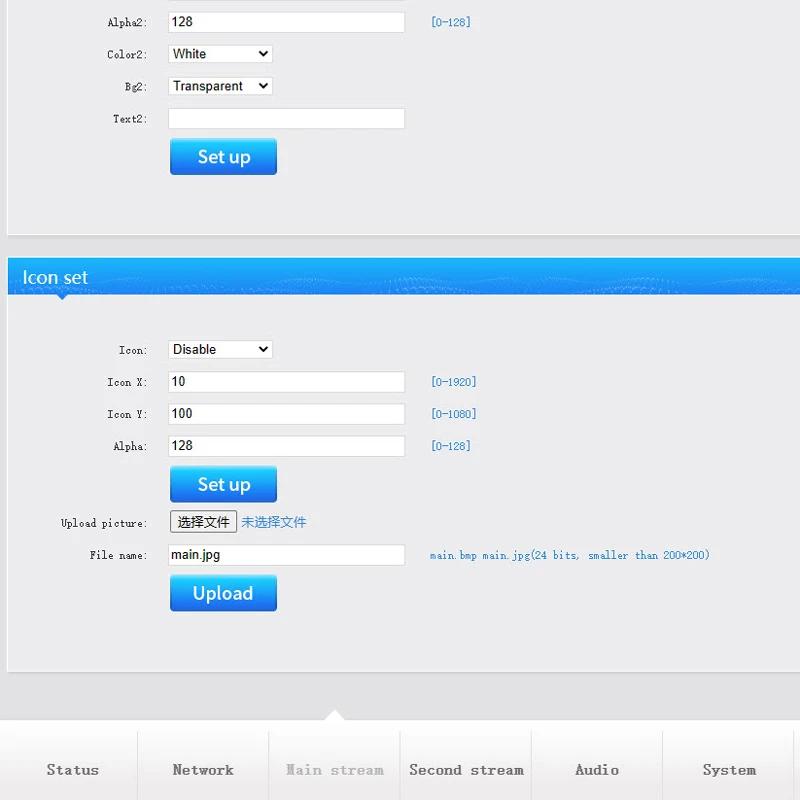

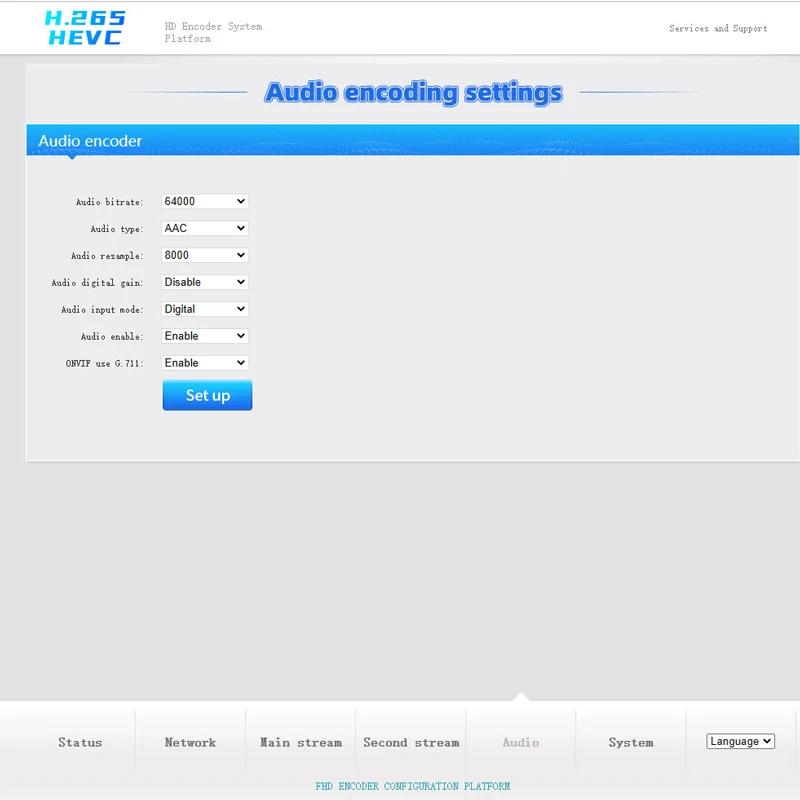

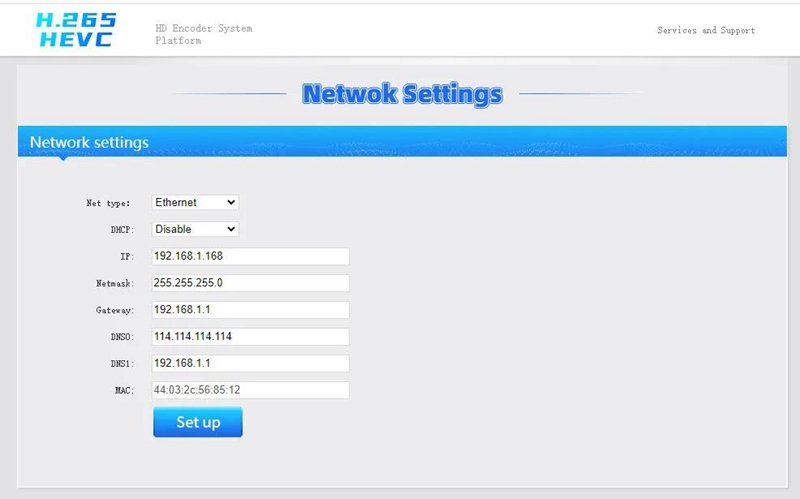

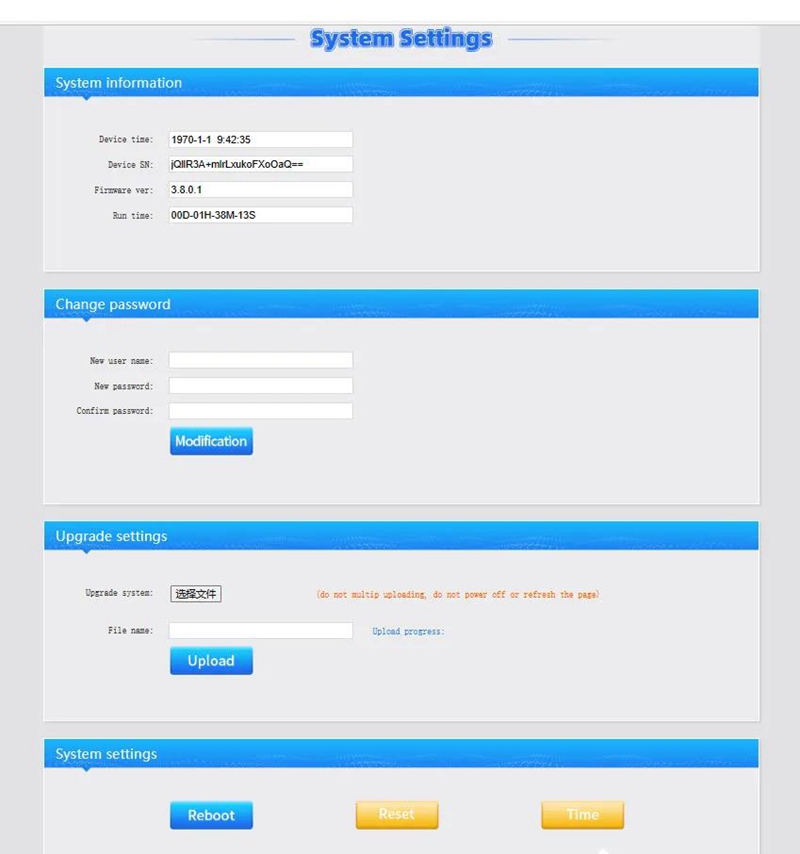

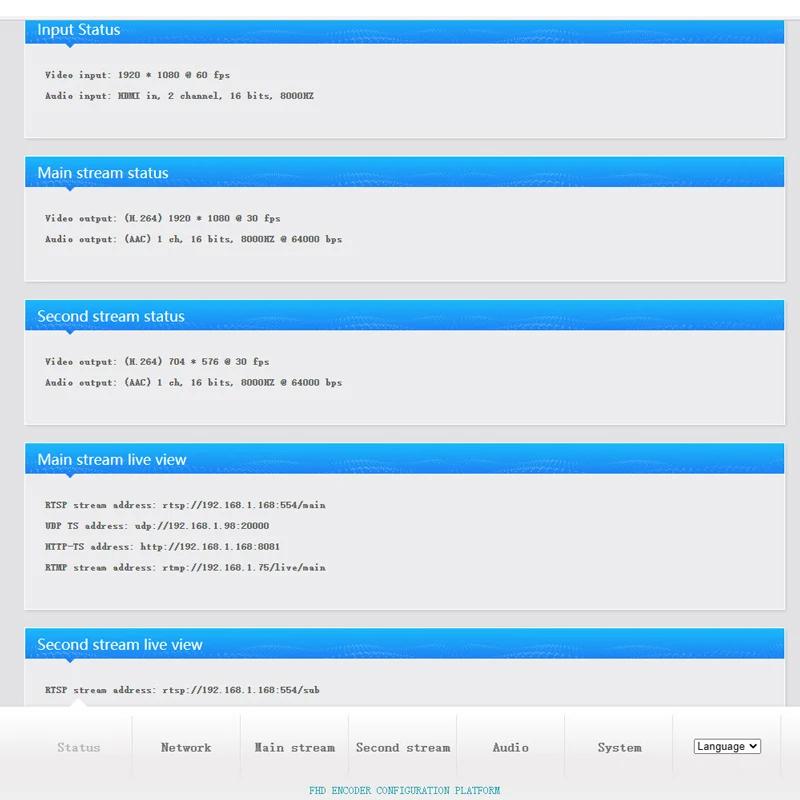

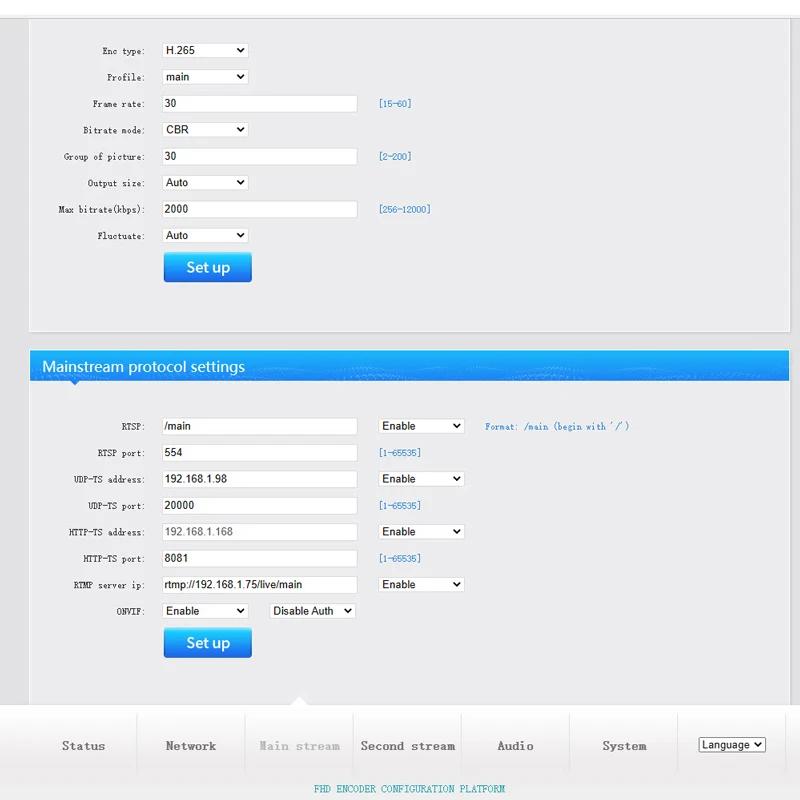

Web Control Interfaces:
