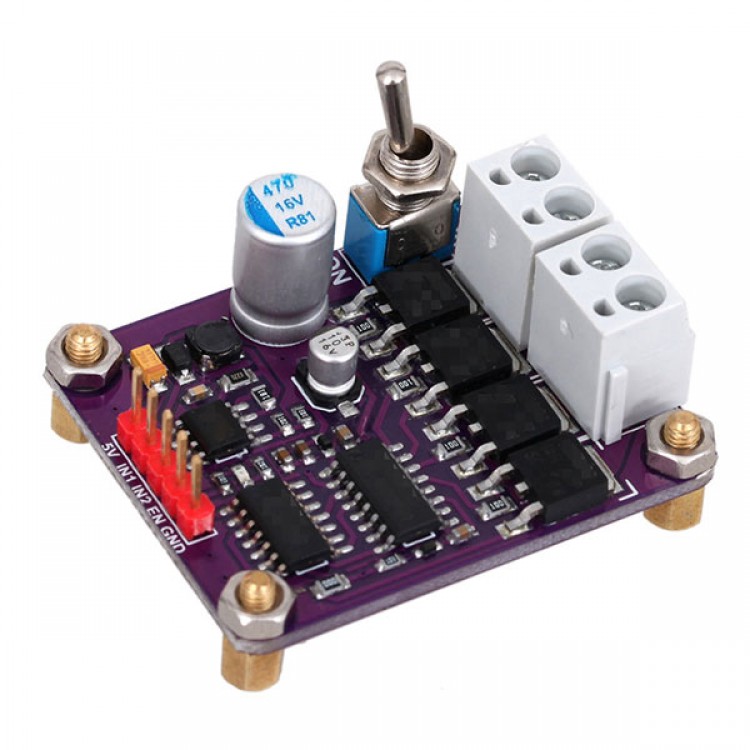

H Full Bridge MOS Large Power Motor Driver Module Surpass BTS7970 Smart Car Robot for Competition

H Full Bridge MOS Large Power Motor Driver Module Surpass BTS7970 Smart Car Robot for Competition

Description:
- This driver adopts full bridge driving chip + four super low resistor MOSFET
- This full bridge driving chip working frequency reach 1MHZ, can perfectly solve the large noise and heat problems of MC33886 and VNH3SP30.
- Driving performance has been greatly improved, quick response speed
- This module surpass L298，IR2104，MC33887 motor driving chip
- Full bridge chip has reliable driving mode to reduce MOSFET switch consumption, improving power utilization
- MOSFET driving chip has hardware braking function and electricity feedback function
- MOSFET adopts large power current shock resistance type, internal resistance is 0.003 ohm, can quickly open the MOSFET channel, improving motor accelerating curvature, at the same time, it can brake the motor, making the quick start or brake possible

Features:
- Onboard full bridge driving chip + 4 super low resistor NMOS tube
- Adopts DC-DC booster module, better performance
- Driving module supports CW CCW and braking
- No need heat radiation, suitable for all car model
- 5V Power supply, control signal is compatible with 3.3V signal, with isolation chip
- Pin description: 5V，GND，PWM1，PWM2，EN (low level is available) default no connection
- Motor end max input voltage is 5V
- Min dimension: only 4.5cmX3.5cm
- Stable working, permit max 160A current
- Onboard motor power input switch, can open or close at anytime, convennient debugging
- Simple control, only need two road control signal and 1 channel signal
- PCB adopts Zedoary process, no easy to produce oxidation
- Purple color is more charming
- Ten years of old factory processing experience, guarantee the quality
- All the machine is STM processing methold
