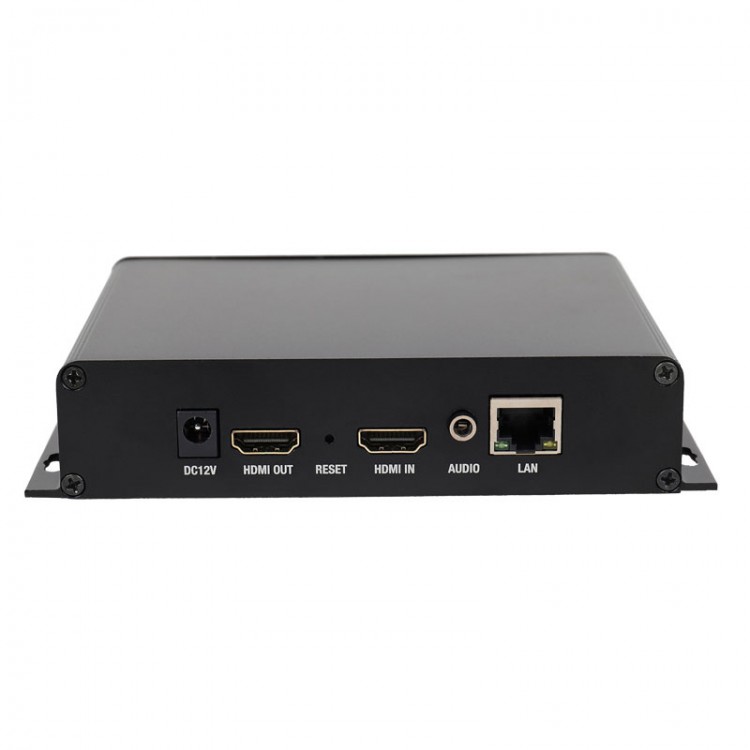

H265 Encoder HDMI Encoder RTMP/RTSP/HTTP/HLS/UDP/RTP 1920*1080P For PC Monitoring Game Livestreaming

H265 Encoder HDMI Encoder RTMP/RTSP/HTTP/HLS/UDP/RTP 1920*1080P For PC Monitoring Game Livestreaming

Features:
- HDMI loop out H.265 audio video encoder
- High-definition picture quality, real-time live broadcast
- Support input 1920*1080P 60-frame high-definition picture, output 1920*1080P 60-frame high-definition picture
- Support 1ch main stream and 3ch sub stream. Output 4ch streams
- 7*24 hours 4-way stable work. Support monitoring NVR recording and broadcasting, for IPTV live broadcasting, LAN live broadcasting, low-latency transmission, OSD settings
- Open high-definition game live experience. Collect the game computer screen for live broadcast without affecting the speed of game computer. Directly replace another computer to complete the live broadcast. Save money, space and power
- Support RTMP/RTMPS/SRT protocol, push live streaming to major mainstream platforms
- Built-in RTMP/SRT server. The default RTMP streaming address rtmp://192.168.1.168/live/0. The default SRT streaming address srt://192.168.1.168:9000
- Monitor NVR recording and broadcasting. Through NVR for ONVIF protocol, you can find the encoder IP and add it to the NVR, then you can play and store the video
- Support LAN multi-person access to live broadcast. Support RTMP/RTSP/HTTP TS/HLS/FLV/RTP/UDP/SRT protocol to play directly in the local area network. In the standard version, each HDMI stream outputs single-screen content by default. If you need to display multi-screen content in one stream, please ask customer service for the version upgrade package
- Open the multicast UDP protocol
- Self-built server, free server software
- Low latency. Collect the computer desktop and play the PTE protocol, the delay is 80-200 milliseconds. The PTE protocol is a proprietary protocol independently researched and developed, and its main function is low latency
- OSD display. Multiple areas in the video screen can add LOGO pictures, text, scrolling text, time
- Audio access. It can be connected to 3.5mm external audio or HDMI audio. Audio coding method: AAC/AAC+/AAC++/MP3/MP2/AC3. Channel: stereo/left channel/right channel. RTSP stream compatible with G711A encoding

Specifications:
Audio and Video Input:
- Video input: 1ch HDMI
- Audio input: 1ch HDMI built-in audio, 1ch 3.5mm external audio

Video Encoding:
- Encoding type: H.265/H.264/MJPEG
- H.264 level: Baseline/Main/High optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 1920x1200/1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224 /352x480/352x228/320x256/320x240/320x180/240x180/same as input resolution
- Stream control: CBR/VBR optional
- Stream: Support RTMP/RTSP/HTTP TS/HTTP/FLV/HLS/SRT/UDP multicast/RTP multicast

Other Parameters:
- Network: Gigabit
- Configuration management: configuration management through WEB
- For ONVIF: Support for ONVIF search and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: <3W
- Working temperature: -20℃ to 60℃
- Working humidity: <90%, no condensation
- Size: 15.5 x 10.2 x 3.2cm/6.1 x 4 x 1.3"
- Net weight: 284g/0.6LB

Package Included:
- 1 x Set of Video Encoder
