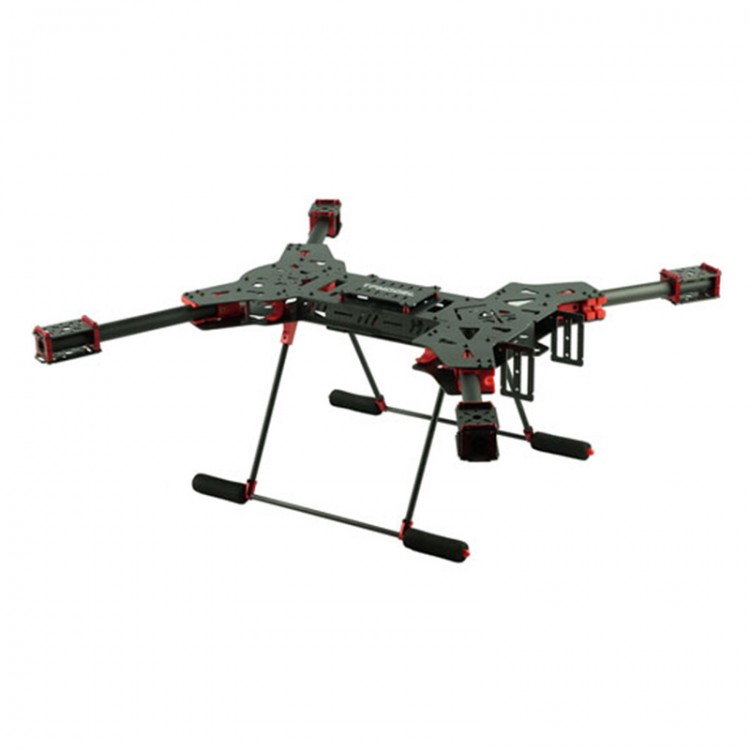

H4 1.6MM Board 680MM Wheelbase Double C Buckle Folding Carbon Fiber Quadcopter w/ CF Landing Gear
TF680 Dual C buckle:
- Material: 1.6mm 3K carbon fiber board, high precised CNC aluminum alloy, folding components
- Wheelbase: 680mm
- Unfolded size: 480*480mm
- Folded size: 370*255mm
- Max up prop: 15 inch
- Internal space height: 21mm
- Motor: support most disc motor, adopts universal motor base
- Support flight control: DJI series, SX series, zero X4 flight control
- Net weight: 530g(3K landing gear included) , 470g(landing gear not inlcuded)
Description:
- Two types of gimbal mounting modes: this quadcopter integrates gimbal mounting board, can adopt downward mounting, integrating damper kits into the quadcopter body, less weight and shorter gimbal, perfectly compatible with Tarot DJI gimbal
- 3K 1.6MM thickness carbon fiber board and pure carbon fiber tube has very strong strength and tenasity. The folding structure makes the aircraft very portable, the folded size is only 1/3 of original size, easy to be packed into the bags, convenient for outdoor activities
- Improved battery mounting board, it can be adjusted forward or backwad to change the aircraft grativity center。
- To make higher strength, it has 12 strengthing screws
- Folding components adopt carbon nylon material, better quality
- WIder arm carbon fiber board, aircraft screws all adopt 2.5*6.2 imported thread screws, more safty flying
- The tail part added telemetry mounting board for FPV TX RX installtion
- Adopting new type connecting nut, safer flying, more convenient to adjust motor level
Package includes:
- H4 quadcopter x 1
- Landing gear x 1
Note: 3K CF landing gear is differnt from CF landing gear, 3K CF material is of higher strength than the normal CF material.
