H4-T-i5-10210U 10th Gen Fanless Mini PC Industrial Computer Embedded Computer with 6 COM Interfaces

H4-T-i5-10210U 10th Gen Fanless Mini PC Industrial Computer Embedded Computer with 6 COM Interfaces

Features:
- Processor: The embedded computer with Core i5-10210U processor;
- Memory: Dual DDR4 SO-DIMM memory slots, supporting up to 64GB;
- Storage: 1*M.2 2280 PCIE3.0 X4, support NVME/SATA protocol SSD, unlimited capacity;

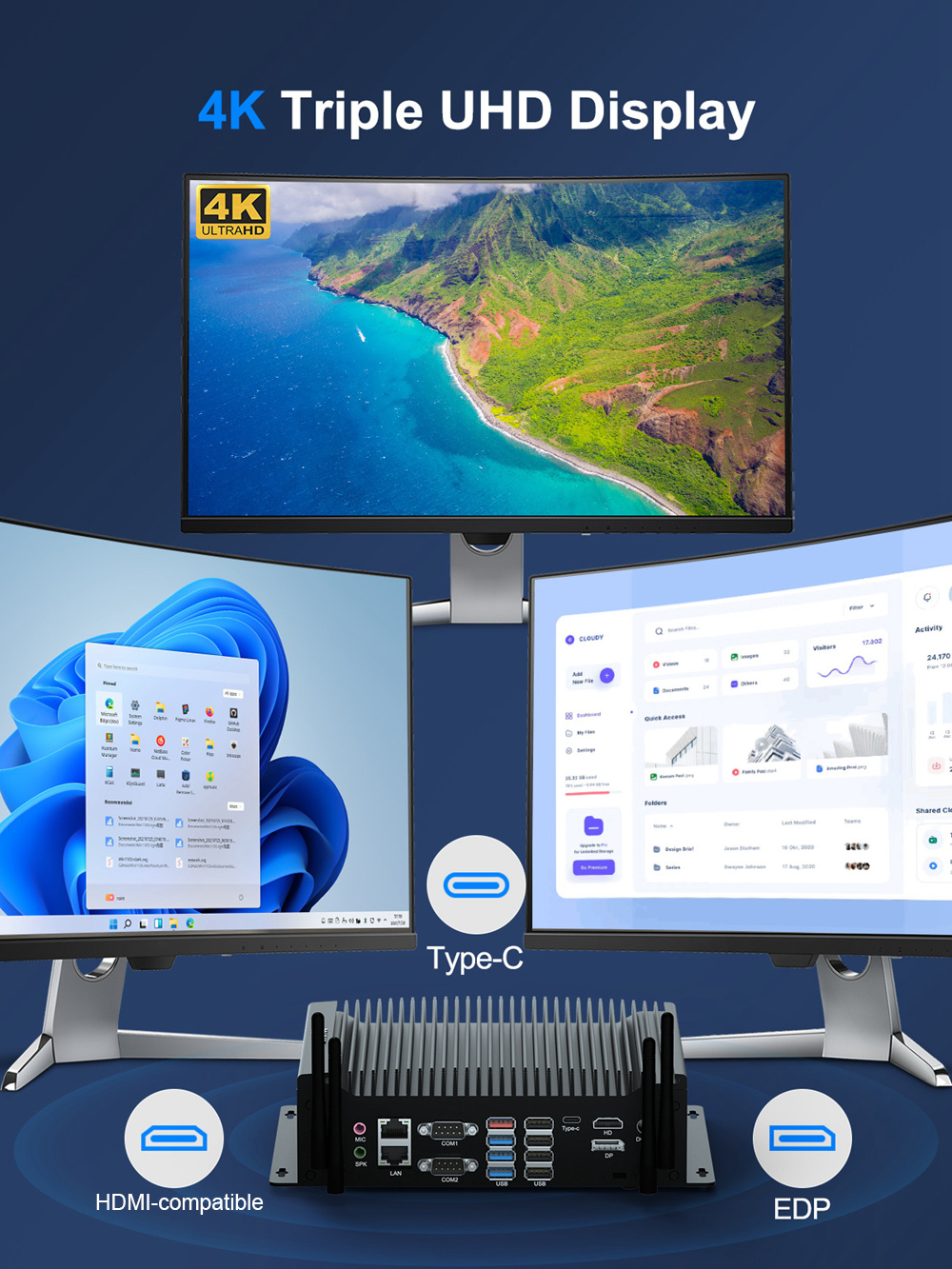

- Display interface: 1*HDMI-compatible +1*EDP+1*TYPE-C HD display output, supporting the same display and different display to improve work efficiency;
- Ethernet port: 2*I210/211 Gigabit Ethernet port for Intel, compatible with more industrial peripheral software;
- Wireless/SIM: 1*M.2 key-E (22*30MM), optional AC3165 Bluetooth 4.2/WIFI6 AX200 Bluetooth 5.2;
- 1*M.2 KEY-B 5G/4G slot, suitable for 42.0mm x 30.0mm/30.0mm x 52.0mm;
- 4*Antenna interface: used to connect WIFI module, 4G and 5G modules. Can also stabilize signal transmission in longer transmission distance scenarios;
- Rich I/O function interfaces: 4 USB3.0, 4 USB2.0, 6 COM ports, 2 RJ45 Gigabit Ethernet ports, HDMI-compatible+EDP+Type-c display interfaces, 6pin GPIO, 2 DB 9pin CAN (optional), 3.5MM output/input;
- The PC supports systems for Windows 10/11, Linux, Ubuntu OS and others, with complete and flexible expansion capabilities. The industrial computer has been widely used in transportation, finance, electric power, medical, Internet of Things and many other fields.

Specifications:
Processor:
- CPU: For Intel Core i5-10210U (6MB cache, 4 cores and 8 threads, base frequency 1.6GHz, maximum turbo frequency 4.2GHz)
- TDP: 15W
- CPU lithography: 14NM

Memory Specifications:
- Memory: Dual DDR4 SO-DIMM memory channel, up to 64GB
- ECC Memory: Not supported

Hard Disk Specifications:
- M.2 SATA: 1x M.2 2280 PCIE3.0 X4/SATA with NVME/SATA protocol SSD
- SATA3.0: 1x SATA3.0. Connect a 2.5-inch HDD/SSD

Display Specifications:
- Integrated graphics: UHD graphics for 10th Gen Intel processors

Power Supply Specifications:
- Power supply input: DC 19V 4.74A (90W)

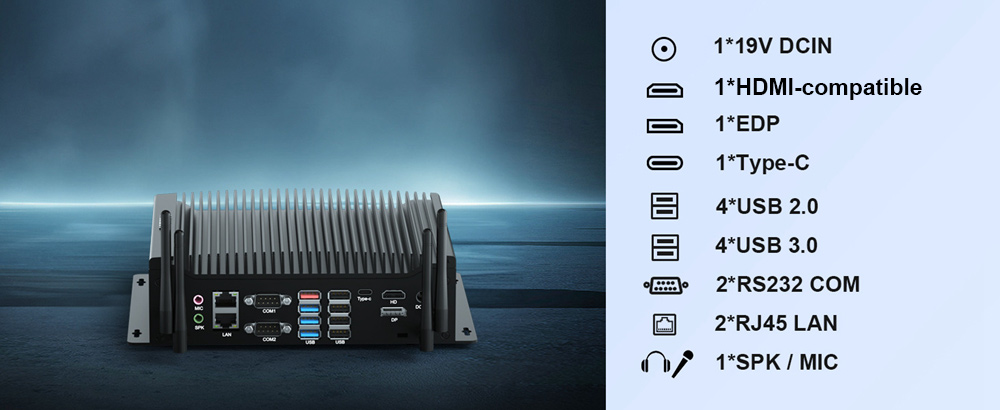

Internal and External I/O Interfaces:
- USB interfaces: 4 x USB 3.0, 4 x USB2.0
- Display output: 1 x HDMI-compatible 1.4+1x EDP 1.4+1 x Type-C

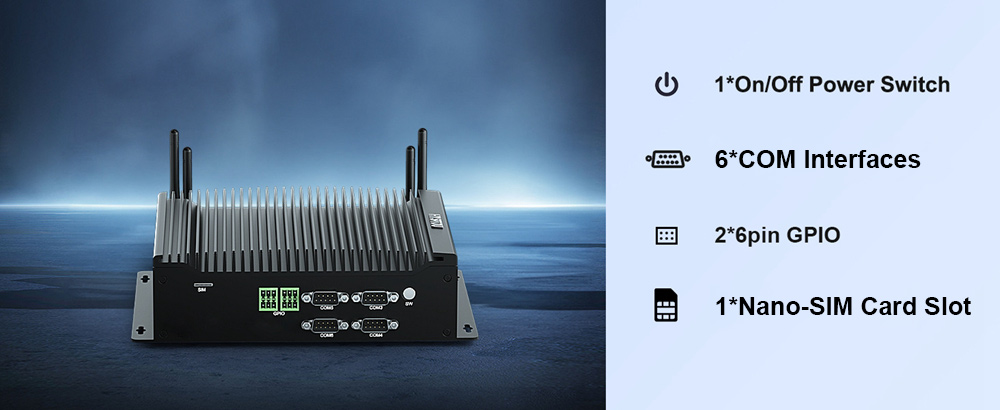

- COM serial port: 6 x DB 9pin COM (COM1/2 only supports RS232, COM3/4/5/6 supports R S232/RS422/RS485)
- GPIO interface: 2 x 6pin GPIO
- Audio output/input: 1 x 3.5MM audio output; 1 x 3.5MM microphone input
- Ethernet ports: 2 x I210/211 Gigabit Ethernet ports for Intel
- WiFi: 1 x M.2 WIFI, optional WiFi5/wifi6
- 4G module interface/SIM card slot: 1 x M.2 KEY-B 5G/4G slot; 1 x Nano SIM card slot

System/Working Environment:
- System: For Windows 10/11 and Linux
- Operating temperature: -10°C to +55°C
- Storage temperature: -20°C to +60°C
- Storage humidity: 10%~90% at 30°C, no condensation
- Body material: aluminum alloy
- PC dimensions: 230 x 182 x 65mm/9.1 x 7.2 x 2.6"
- Net weight: 1.9kg/4.2lb
- Installation: Supports desktop and wall mounting
- Others: Supports wake-on-LAN, incoming call power-on, timed power-on, disk-less boot, watchdog and PXE

Package Included:
- 1 x Set of Industrial Computer

Note:
- There is no CAN interface by default. The version with two CAN interfaces are optional.
- Memory and hard disk are not included. If they are needed, please contact customer service and pay the extra cost. Thank you!

Packaging Details:
- Packing size: 255*255*87mm
- Gross weight: 3.5kg
