Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $35.57 | $34.85 | $33.76 | $32.31 | Contact US |

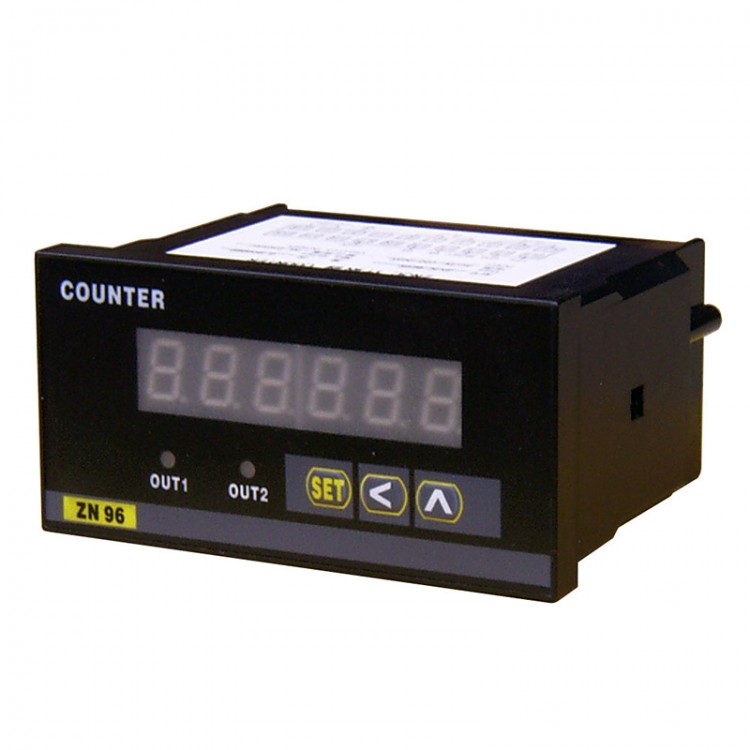

H7JC2-6E1R Elecronic Counter Industrial Multifunction Plus Minus Reversible
Description:
- H7JC2-6E1R counter is the upgrade version of H7JC, improving the anti interference ability
- Counting speed: 30 times/ sec, 300 times/ sec.2000 times/ sec, 5000 times/ sec
Specification:
- Name H7JC2-6E1R counter
- Power supply: 100-250VAV
- Input signal frequency: 0-5KHZ
- Input signal: NPN signal input
- Dimension: 72*72*90MM
- Consumption: <4W
- Output mode: 1 group relay, alarm output
- Trigger point capacity: AC220V, 3A, DC24V, 5A
- Reset impulse signal: low level<=2V, high level>=5V
- Input resistance: 3K
- Environment: temp 0-60degree
- Installation: snap in
