HA350C 380-780nm Handheld Spectral Color Illuminometer LED Lux Spectrometer with 5.0-inch IPS LCD Touch Screen

HA350C 380-780nm Handheld Spectral Color Illuminometer LED Lux Spectrometer with 5.0-inch IPS LCD Touch Screen

Description:
- The latest HA350C handheld spectrometer is upgraded and revised on the basis of the old HA350, completely reversing the original design concept and referring to the efficient industrial design concept and industrial application for LINUX system.
- Adopting high speed CPU processor, for LINUX system with high precision electronic CCD optical sensor, using long cross asymmetric CT spectral principle of system development and design, with a lightweight design, stable performance, high precision, high cost performance, easy to carry, etc, and with a 5.0-inch high-definition capacitive touch screen lets you familiar with freely like operating mobile phone.
- Completely subvert the old high precision spectrum analyzer volume is huge, cumbersome operation, high price and other concepts. Sampling and measurement of light source parameters can be carried out anytime and anywhere. With the help of PC software, efficient analysis and processing of test data can be carried out.
- With extremely high measurement linearity and accuracy, it is widely used in on-site lighting measurement fields such as household, shopping malls, schools, factories, greenhouse and outdoor. It can also be used in the research and development of light source products, production line quality control and other links.
- HA350C series is a new generation of hand-held light source color test instrument, the use of advanced miniature spectrometer and microcomputer technology integration, the original laboratory in the large size of the test instrument moved to the production line, realized the online light color test, greatly improve the production efficiency of LED manufacturers.

Upgraded Points:
- The appearance design is more in line with the standard of anthropology handheld instrument (increased handheld arc, more ultra-thin, lighter weight) completely discard the old brick machine.
- The system for Linux with more open source code is adopted to upgrade the system, which is more in line with the application design of intelligent products and provides unlimited space for the subsequent upgrade of the instrument. The simple interface system of the bare run old chip is abandoned.
- Upgrade the chip from the old STM32 chip to the high-speed CPU processor, which doubles the signal acquisition speed and makes the data calculation more accurate.
- The touch screen becomes the mainstream color screen of mobile phone, with more realistic graphic display, smoother touch and use, more reasonable interface design and stronger experience.
- The optimization and upgrading of optical path and circuit make the test results more accurate and ensure the repeatability and consistency of the test.

Features:
- Adopt advanced micro spectrometer technology, higher testing accuracy than the traditional probe.

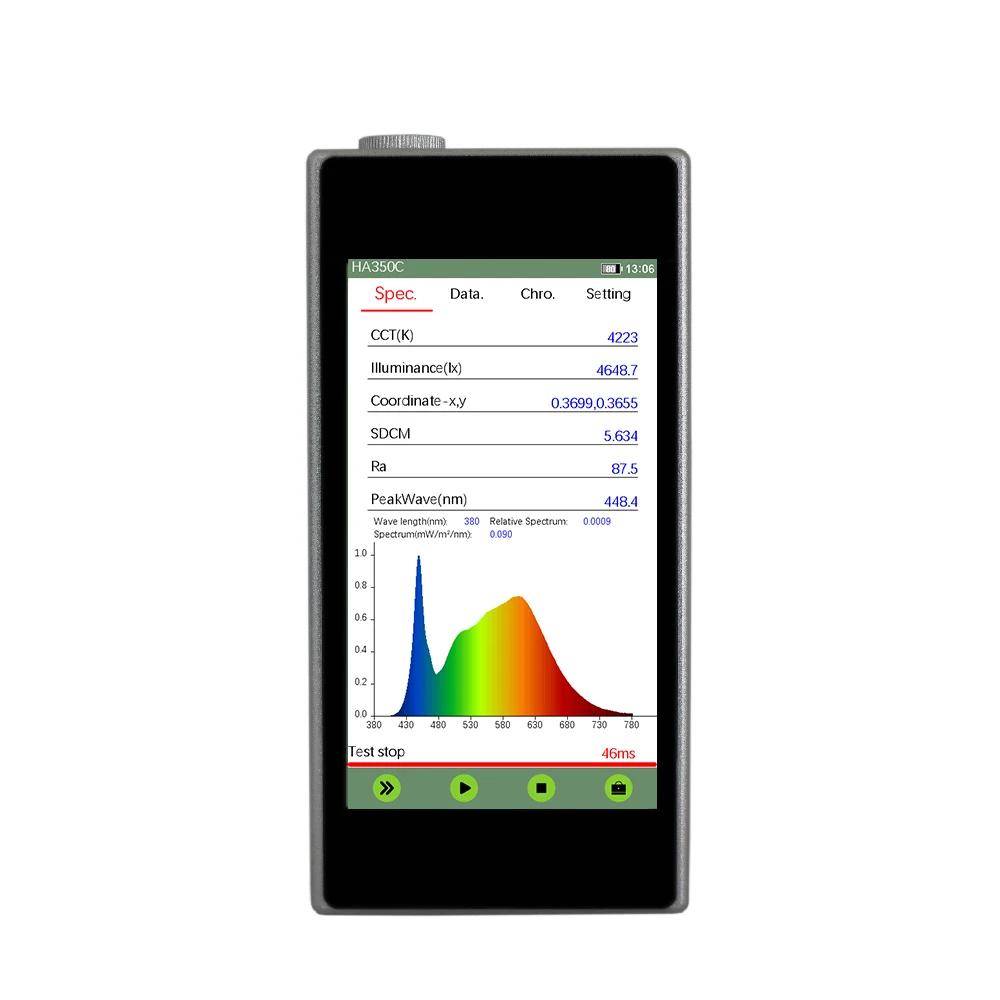

- Color liquid crystal display, better graphic interface, can display spectral waveform, color tolerance elliptical chart.
- Use high-performance lithium battery power, can be used repeatedly for a long time.
- Spectral mode: long focal bifurcation asymmetric CT.
- For Linux OS platform.
- Small size, light weight, easy to carry.
- 5.0" IPS HD LCD touch screen, easy to operate.
- 4700mA high capacity battery, a single charge can be last more than 12 hours.
- Standard 4G large-capacity data storage card, data storage capacity of more than 30000 pieces.
- Long focal cross asymmetric CT spectroscopic system has good linearity and accuracy of measurement.
- Spectrum, illuminance, chroma and other measurement functions all in one.
- Independent research and development of LINUX operating system platform, friendly interface, simple and smooth operation.

Functional Description:
- Spectrum distribution
- Correlation color temperature (CCT) Tc (K), black body deviation Duv
- Illuminance E (Lx), candlelight E (Fc) , Irradiance Ee (W/m2)
- Chromaticity coordinate (x, y), (u, v), (u', v')
- Relative spectral power distribution P (λ)
- Color rendering index (CRI) Ra, Ri (i=1 ~ 15)
- Color tolerance SDCM (McAdam ellipse, rectangular frame and CIE u' v' circle)
- Main wavelength, peak wavelength, center wavelength, centroid wavelength, half width
- Light and dark visual ratio S/P
- Color purity, red ratio, green ratio, blue ratio, CIE1931 three primary color stimulus value X, Y, Z

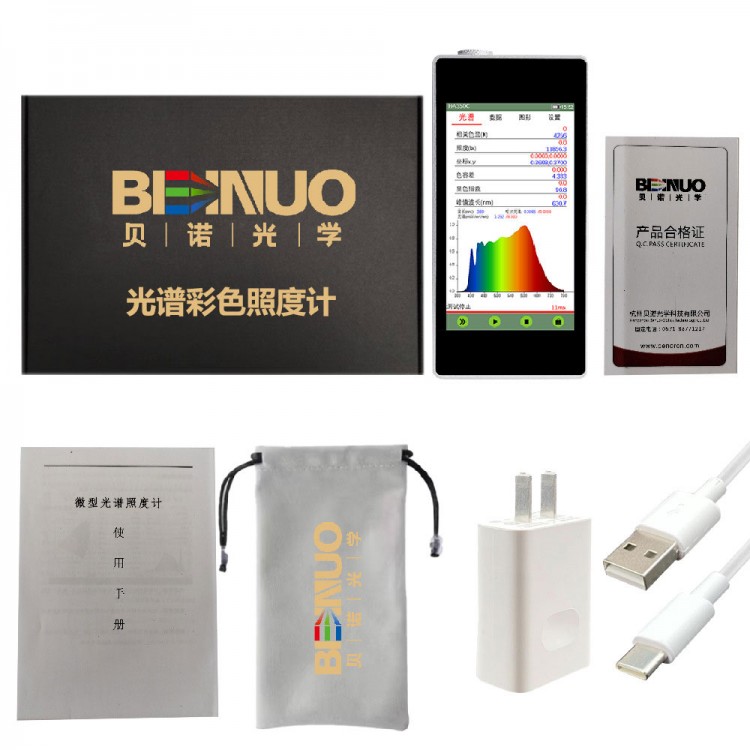

Package Included:
- 1 x Illuminometer
- 1 x Power Adapter
- 1 x Storage Bag
- 1 x User Manual
