HAC Portable HiFi DAC Headphone Amplifier AK4493EQ w/ 2 Output Ports For Android IOS Windows System

HAC Portable HiFi DAC Headphone Amplifier AK4493EQ w/ 2 Output Ports For Android IOS Windows System

HAC Optional Versions:
* 2 Output Ports: 3.5MM One-End Output + 4.4MM Balanced Output
* 3 Output Ports: 2.5MM Balanced Output + 3.5MM One-End Output + 4.4MM Balanced Output

Features:
- Portable HiFi DAC headphone amp
- Low power consumption, compact size and high resolution
- Using high-performance AK4493EQ chip. Compared with AK4490 used in the past, the SNR of AK4493 chip is doubled, its distortion is reduced by 1dB, and sound quality is greatly improved. DAC master decoding supports up to DSD512/supports up to 768Khz sampling rate
- DSD sampling rate supports up to 512DSD and the highest sampling rate is 768Khz. AK4493EQ high-performance chip, DAC master high-performance chip. High driving force, adaptive high resistance thrust
- Support multiple operating system platforms. For Android operating system phone/tablet/computer/player. For iOS and iPad OS operating systems. For Mac and Windows operating systems. Support other operating systems with OTG devices.
- Player architecture used to ensure high quality sound
- A variety of audio output interfaces to meet your diverse needs. Freely switch between different audio plugs without switching

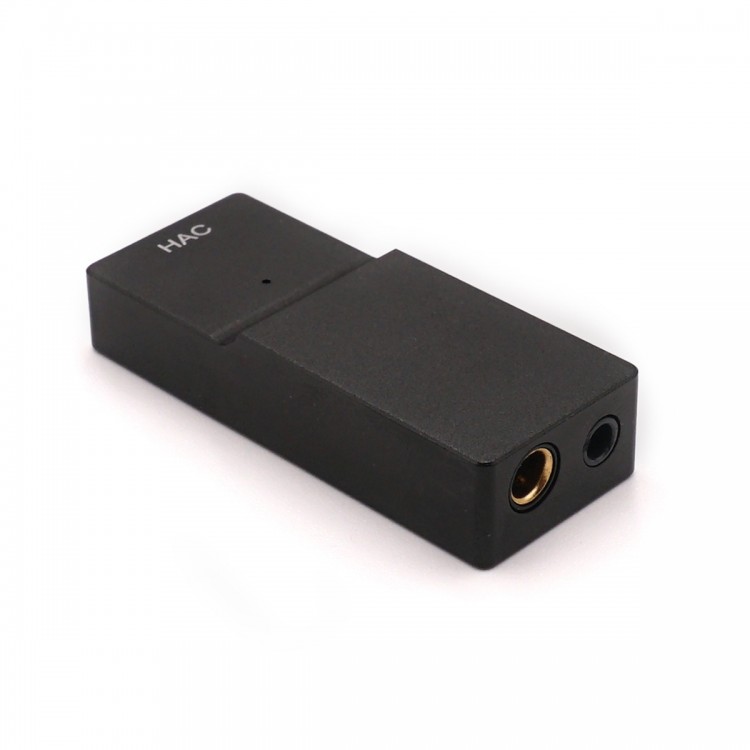

- Small size makes it easy to carry. HAC adopts one-piece CNC machining design with all-aluminum alloy shell. Weighs only 17.5g/0.04LB, and body size 55x22x9.5mm/2.2 x 0.9 x 0.4" (LxWxH). Lightweight and compact, it is very convenient to carry and use.
- Multiple headphone jacks can share music with multiple people
- Fully shielded design fuselage, clean background. CNC integrated cutting process, aviation aluminum alloy fuselage (the fuselage does not have a screw). Using 6-layer FR-4 military-grade PCB board, strong anti-interference
- High power output: single-ended 180mW, balanced 300mW. Built-in two high-quality independent operational amplifiers
- HAC cable uses eight-strand high-purity single crystal copper plated with silver to achieve stable transmission signal and pure sound bottom
- Comes with needed accessories. With cable for lightning to type-C, type-c to micro adapter, type-C to USB A adapter, and type-C to type-C cable
- Appearance design: HAC portable HIFI decoding amp integrated machine. In order to make the volume smaller, we added an arc in the middle, which not only solves the volume but also fits your hand

Specifications:
* Product Size: 55 x 22 x 9.5mm/2.2 x 0.9 x 0.4"
* Weight: 17.5g/0.04LB

Frequency Range:
* 3.5mm: 20~90Khz
* 4.4mm: 20~90Khz

Output Interface:
* 3.5mm single-ended interface
* 4.4mm balanced interface

Bit Depth:
* 16Bit/24Bit/32Bit

Decoding Format:
* DSD support: 64/128/256/512
* Sampling rate PCM: 44.1Khz/48Khz/88.2Khz/96Khz/176.4Khz/192Khz/352.8Khz/384Khz/705.6Khz/768Khz

Output Powers:
* 3.5mm: 180mW/ch at 32Ω
* 4.4mm: 300mW/ch at 32Ω

SNR:
* 3.5mm: 123dB
* 4.4mm: 123dB

THD+N:
* -113db (<0.0004%)

Support System:
* For Android/IOS
* For MacOS/Win 10/Win 7

Package Included:
- 1 x Set of DAC Headphone Amplifier
