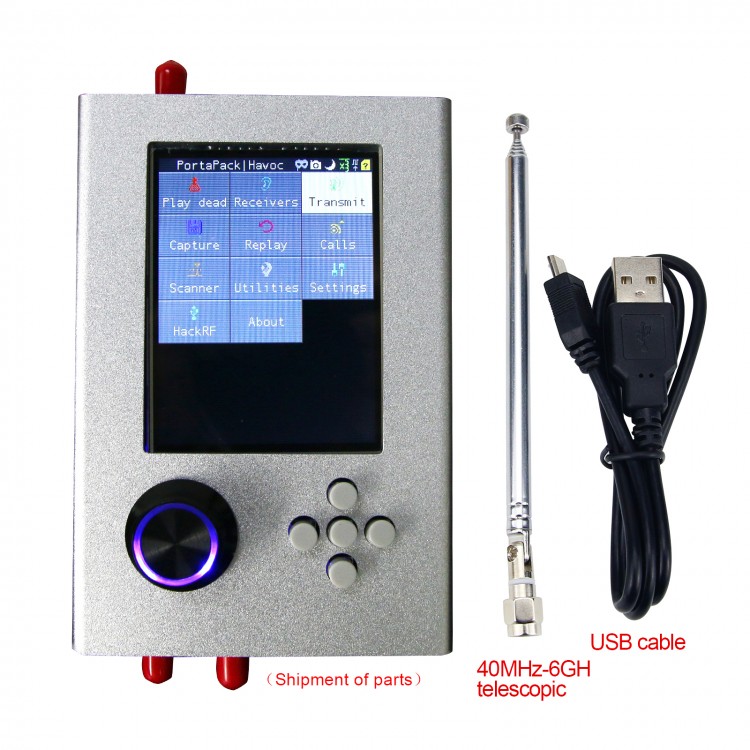

HackRF One + Portapack H2 + Antenna + Data Cable SDR Software Defined Radio 1MHz-6GHz Unassembled

HackRF One + Portapack H2 + Antenna + Data Cable SDR Software Defined Radio 1MHz-6GHz Unassembled

Hardware Configuration:
- 3.2" TFT 240 * 320 screen
- Navigation switch
- Audio output
- Microphone input
- DC 2.1 interface
- 4-layer gold plate
- ROSH process (exported to Europe and America)

Add a PortaPack to your software defined radio HackRF, and leave your laptop behind! The PortaPack connects to your HackRF and adds an LCD touchscreen, navigation controls, headphone jack, real-time clock, micro SD card slot.

Just add a USB battery, and you're ready to explore radio spectrum wherever you are. The PortaPack firmware works with fast processors for ARM in your HackRF. No computer is needed (except for firmware reprogramming).

Functions:
- 3.2", 240 x 320 RGB LCD with resistive touch panel.
- Four-way arrow buttons, rotary wheel and select button.
- Coin battery to preserve settings and date / time.
- Micro SD card slot for data and storage code
- SSB, AM, narrowband FM, broadband FM audio reception, with cascade spectrum.
- Broadband (18MHz) spectrum and cascade analysis.
- Monitoring of boat (AIS), automobile (TPMS), E utility counter transponder (ITRON ERT).
- HackRF mode runs HackRF firmware for use with the SDR host computer software.
- Calibration PPM for more accurate tuning.
- Sleep mode saves energy by turning off the display only.

Features:
- Your HackRF will continue to work with the computer-based SDR software when you put the PortaPack in "HackRF mode".
- PortaPack is only compatible with the HackRF Uno. It is not compatible with the first HackRF Jawbreaker design. If you have an RF shield installed on your HackRF, the PortaPack should be fine. Compatibility with the HackRF Blu is experimental. A proprietary Blu reported good results with less interference between the audio capacitors PortaPack and the mechanical header band. If your Blue HackRF doesn't have a header band installed, you should have no mechanical problems.
- PortaPack requires an external battery. Any USB-connected battery should work, although they vary widely in quality and poorly designed batteries can inject noise voltage regulator into the radio.
- PortaPack and HackRF of Un will not replace your handheld ham radio receiver. Reception sensitivity varies from band to band, but will not perform as well as a real ham radio receive.

Package Included:
- 1 x Set of SDR Radio

Note:
- Assembling is needed.
- Battery is included.
