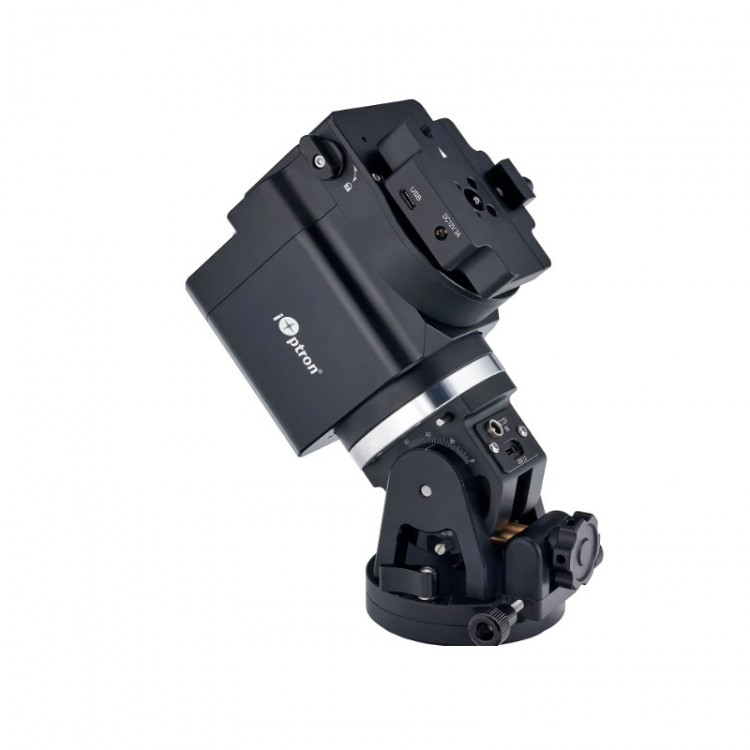

HAE16C Single Harmonic Equatorial Mount Type-C Support Equatorial/Horizontal Dual Mode with 8.2KG Load Capacity
Features:
- Self weight of 2.59kg.
- Maximum load capacity of 8.2 kg@20cm (excluding counterweight).
- Vixen type dovetail seat.
- Dovetail power supply output.
- Dovetail Type-C equator control port.
- Latitude adjustment range 0°- 90°.
- Suitable for photography tripod (3/8-16 threaded interface)
- The declination adopts a worm gear structure to ensure tracking accuracy.
- The dovetail provides equatorial instrument control port and power output port, bringing great convenience to the use of astronomical boxes.
- Equatorial/horizontal dual-mode.
Specification:
- Tracking mode: the equator/horizon
- Reducer: right ascension: 14 harmonic reducer
- Reduction ratio: 360:1
- Net weight: 2.59kg
- Maximum load capacity: 8.2kg at 20cm (without counterweight)
- Dovetail base: Vixen
- Period: 360 seconds
- Maximum GOTO speed: 6°/s
- Latitude range: 0°-90°
- Direction adjustment range: ±6°
- Power supply voltage: DC12V
- Power consumption: 0.6A (tracking)/1A (GOTO)
- Control system: for Skyhunter
- Communication interface: dual USB-C/WiFi/ST4
- Power outage braking: right ascension electronic damping brake
- Automatic zeroing: mechanical automatic zeroing
- Working temperature: -20℃ ~ 45℃
- Balancing bar thread: 3/8 - 16
Package Included:
- 1 x Set of Equatorial Mount
