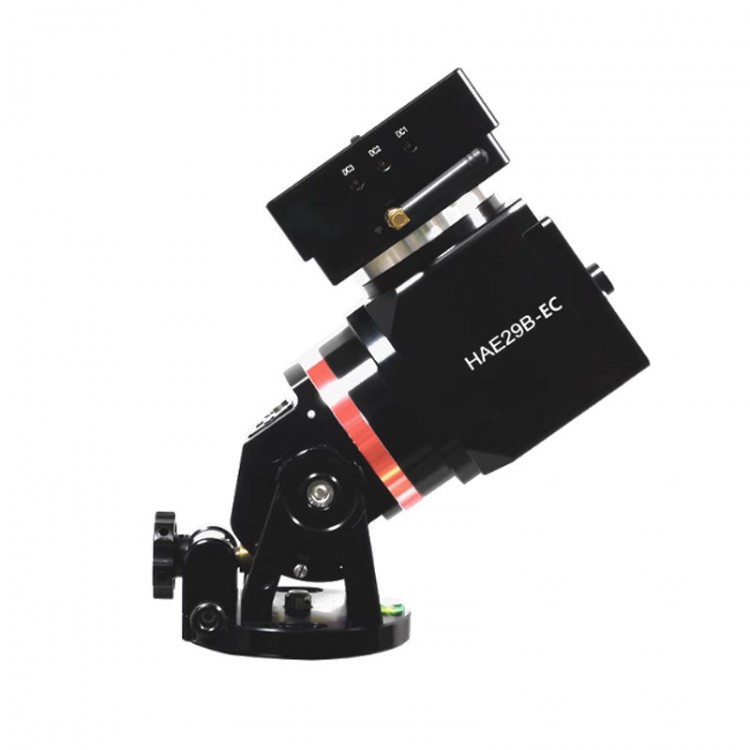

HAE29B EC Version Dual Harmonic Equatorial Mount Built-in iMate Astronomy Assistant with High Precision RA Axis Encoder
Key Features:
- Built-in iMate Astronomy Assistant, iMate Astronomy Assistant provides a fully functional astronomical shooting program, hidden in the dovetail base, cleverly designed.
- Support equatorial mode, with a self weight of 3.9KG and a load capacity of 13KG (excluding counterweight).
- Support horizontal mode, top mounted AZ high-precision horizontal bubble.
- Computer direct control, no need for manual control box, TYPE-C cable direct connection.
- Intuitive and detailed software interface, based on system for Linux, fully open source, supporting feature addition.
- The latitude adjustment range is 0° -90°, with three levels of adjustment: 0-30°, 30-60°, and 60-90°.
- Top mounted high-precision horizontal bubble, external electronic polar mirror bracket for easy reading.
- The EC version features a high-precision RA axis encoder, providing incredible tracking accuracy for long-term blind tracking, making it possible to choose "no" star guidance imaging.
Specification:
- Tracking mode: the equator/horizon
- Reducer:
Right ascension: 17 harmonic reducer
Declination: 14 harmonic reducer
- Reduction ratio: 480:1
- Net weight: 3.9kg
- Maximum load capacity: 13kg at 20cm (without counterweight)
- Dovetail base: Vixen & Losmandy
- Period error: < 36 arc-sec (±18 arc-sec)
- Period: 360 seconds
- Maximum GOTO speed: 6°/s
- Latitude range: 0°-90°
- Direction adjustment range: ±7°
- Power supply voltage: DC12V
- Power consumption: 0.6A (tracking)/1A (GOTO)
- Control system: for Skyhunter
- Communication interface: USB-C/WiFi/ST4
- Power outage braking: right ascension and declination electronic damping brake
- Automatic zeroing: mechanical automatic zeroing
- Working temperature: -20℃ ~ 45℃
- Balancing bar thread: 3/8 - 16
Package Included:
- 1 x Equatorial Mount
- 1 x DC Power Cable
- 1 x Type-C Data Cable
- 1 x 12V 5A Power Adapter
