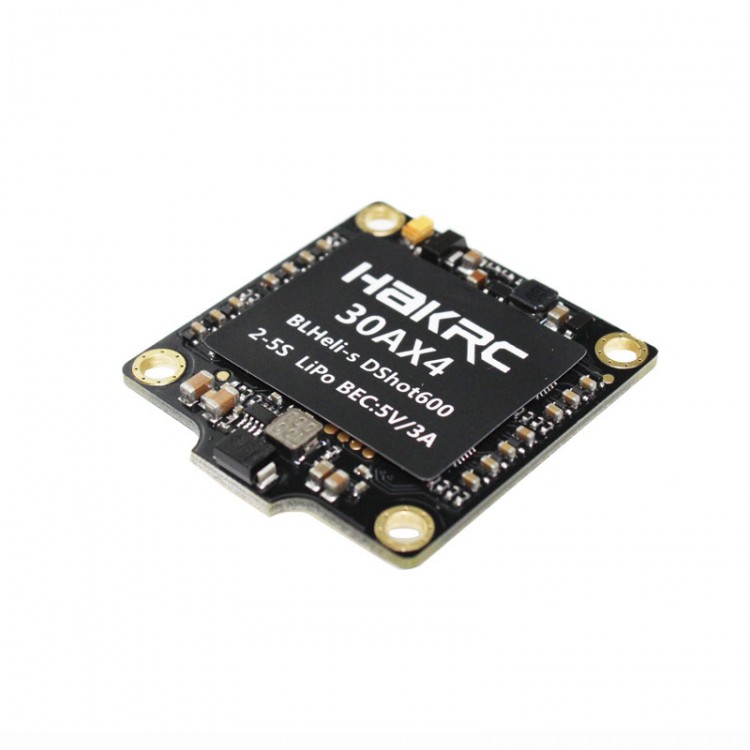

HAKRC 30AX4 2-5S Drone ESC 4 In 1 ESC Designed With BLHeli-S Hardware Accessory For Drones
Features:
- Quality Hardware: EMF8BB21F16G main control chip boasts operating frequency up to 48MHz. It uses imported mosfet, three-in-one IC driver, and imported high-quality ceramic capacitors. 3 ounces of copper thickness and 6-layer board greatly reduce heat generation and higher efficiency
- Highly Integrated and Compact Size: Integrated 4pcs high-performance 30A ESC and built-in 2A BEC make it convenient to use multiple external devices. Built-in booster module has powerful explosive power even at low voltage, making flights faster. After such a high degree of integration, the volume is only the same size as flight controller of racing drones, enabling easy installation and wiring. Such an incredible size and volume, tailor-made for the competition-level racing drones
- Native Support For BLHeli-S: The firmware ensures powerful performance and rich functions. And it supports multiple ways to set parameters, or upgrade its firmware (For example, use a throttle signal cable, use other development boards, or use a flight controller with firmware for cleanflight or betafLight to set or upgrade the ESC)
- Hardware PWM, Damped Light: Hardware PWM drive motor, low noise, smoother throttle response. Damped Light technology and regenerative braking function make motor deceleration more sensitive and effective, and control more precise
- DShot150/300/ 600 Ready: It not only supports for ordinary PWM throttle signal mode, Oneshot125, Oneshot42 and Multshot ultra-high speed throttle signal, but also supports for the current DShot150/300/600 digital throttle, with strong anti-interference ability and rapid response. The input and output cables use soft silicone cables, which are very durable, resistant to high temperatures and convenient for soldering
Parameters:
- Distribution board: integrated
- Working voltage: 2-5S
- Maximum continuous working current: 4*30A
- Maximum instantaneous working current: 4*35A
- Adjustable parameters: Support
- Support for Oneshot 125/42 and Dshot 150/300/600
- Firmware version: BLHeli_S/Dshot150/300/600 16.6 (G_H_30)
- Product size: 39 x 36mm/1.5 x 1.4"
- Weight: 9.6g/0.02 lb
Package Included:
- 1 x Set of ESC
Note:
- Battery is not included.
