Feature:
- 32Bit processor:HAKRC 35A ESC 32 bit processor,throttle 2048 resolution ratio,strong anti-interference capacity.
With 32bit ARM Cortex MCU STM32F051 48MHZ micro processor, throttle 2048 resolution ratio,strong anti-interference capacity.
- Super compatibility,support DSHOT,no need to change the hardware.
- HAKRC 35A ESC uses adaptive control system,compatible with most motor.Support max 500HZ PWM,Oneshot125,Oneshot42,Multishot and Dshot150/300/600/1200,no need to change the hardware.
- HAKRC 35A ESC RC Multirotor FPV Racing Drone,if the player bombs the plane,he can locate the position based on the ESC prompt.Players can choose favorite BGM as power up sound.
- Support 3D mode:HAKRC 35A supports 3D mode & automatic angle function，
Top-level hardware with 32 bit processor.
Function setting:

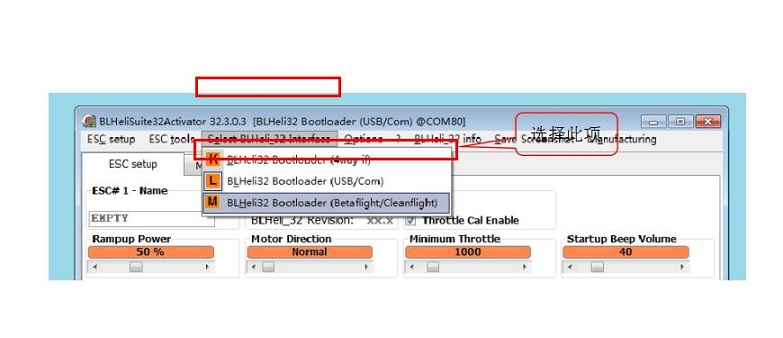

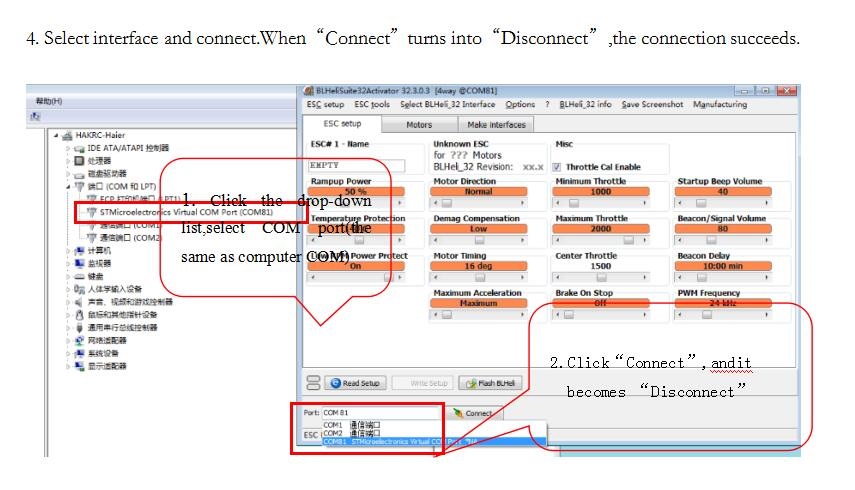

- Parameter adjustment software includes throttle travel,angle setting,active brake mode.Users can connect & set parameter through CleanFlight,BetaFlight.
- Integrated LED light,replace the light color.
- Singlechip:STM32F051
- Program:BLHeli32 bit
- Size:26x13x5 mm
- Weight:7g
- Input voltage:2-5 Cell LiPo
- Constant current:35A
- Mosfet:TOSHIBA channel,independent half bridge driver chip
- PCB:3OZ copper thickness,gold plated

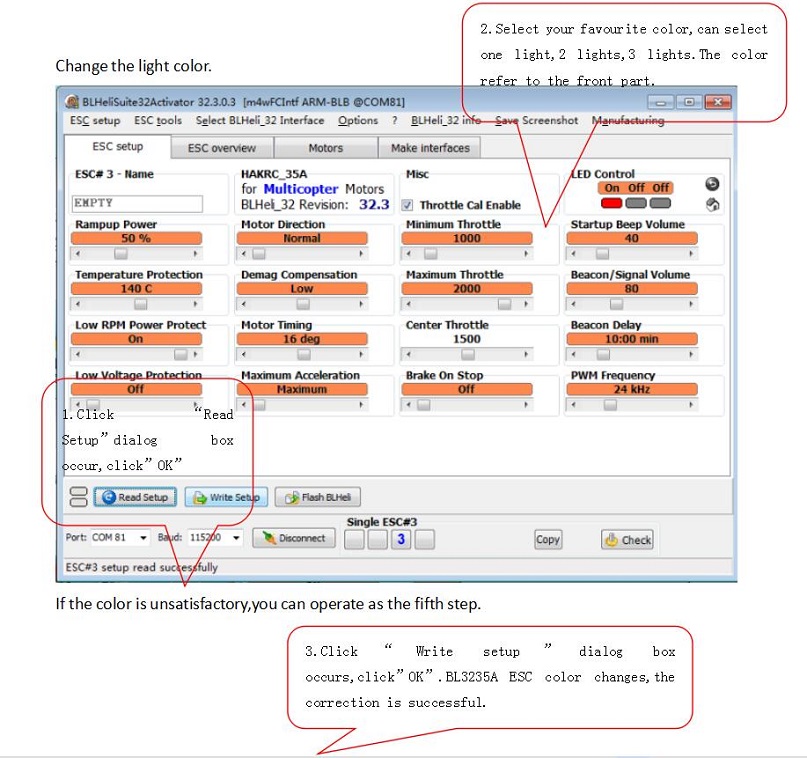

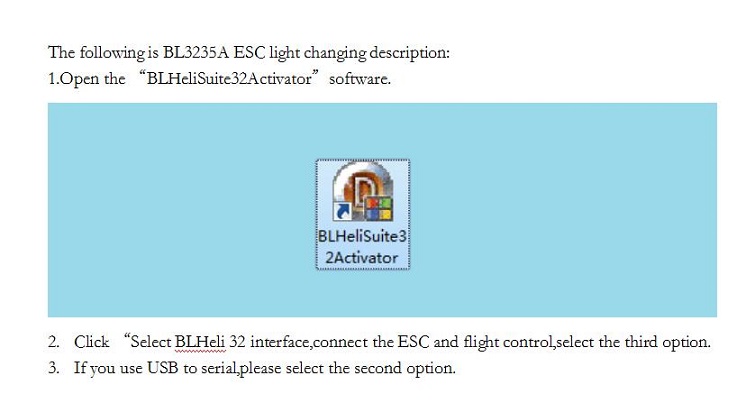

HAKRC 32 bit 35A ESC Change Light Color Description:
- BL3235A ESC red,green,blue 3 color.The 3 color are independent.

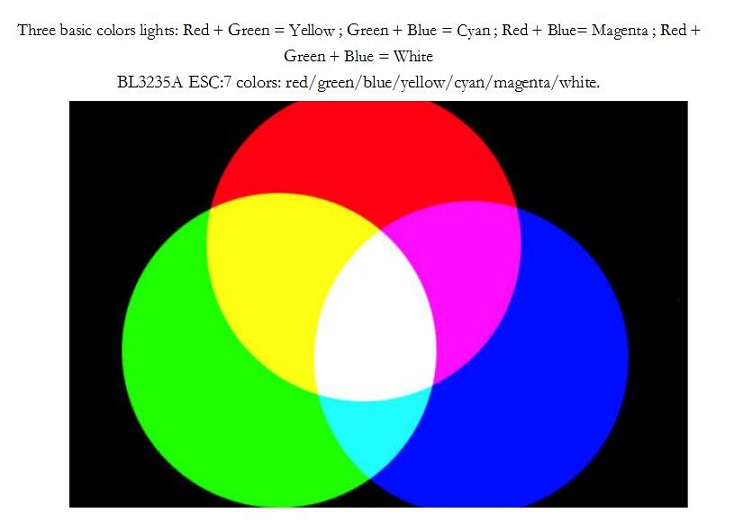

- Three basic colors lights: Red + Green = Yellow ; Green + Blue = Cyan ; Red + Blue= Magenta ; Red + Green + Blue = White
