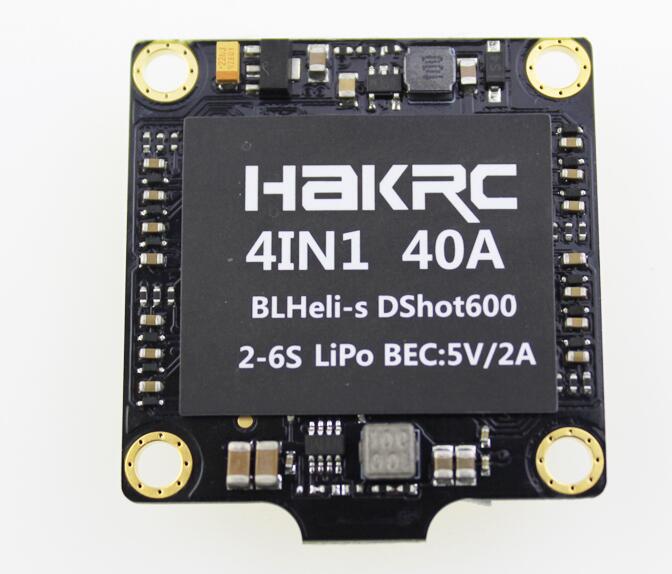

Product Description:

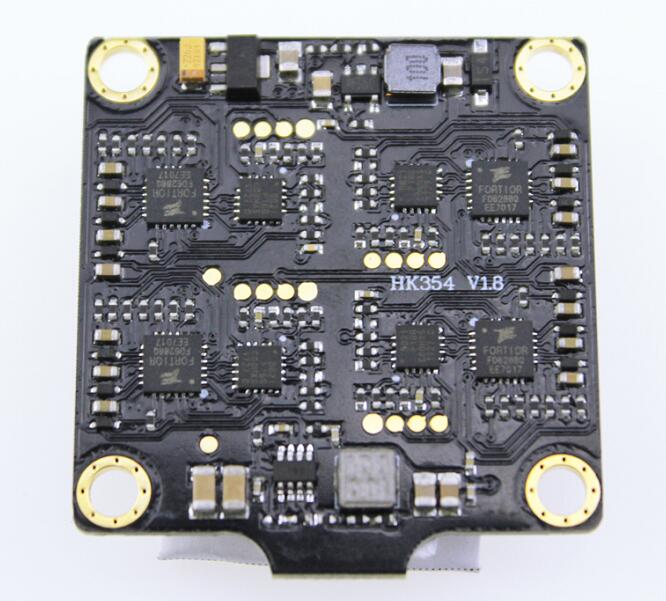

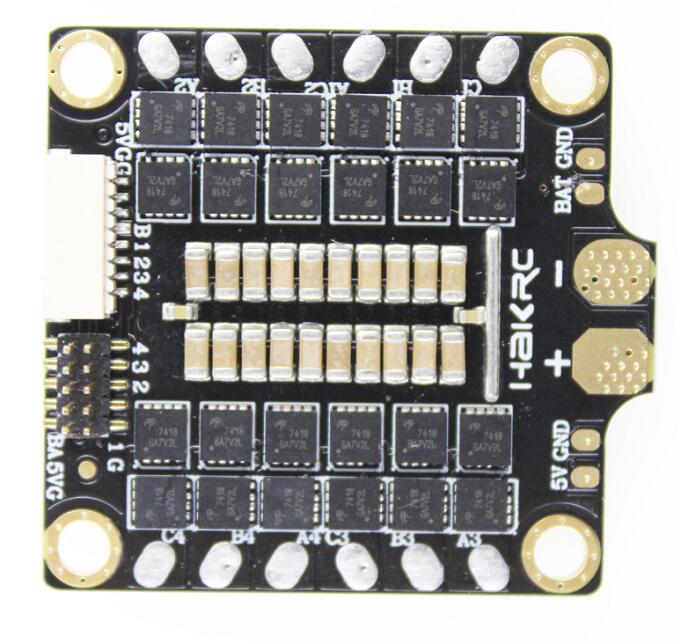

- High quality hardware:EMF8BB21F16G main chip,operating frequency:48MHz.Imported mosfet,3 in 1 IC drive,imported high quality ceramic capacitor.3 ounce copper thicknes,6 layer board,reduce heat,improve efficiency.
- Integrated,small size:Integrated 4pcs 40A ESC,built-in 2A BEC,built-in step-up module,strong power even in low voltage.
- Support BLHeli-S:BLHeli-S firmware,strong performance,support multi method setting ESC parameter,update ESC firmware(through throttle signal cable,use other develop board,cleanflight or betaflight firmware flight control,set or update ESC).
- Hardware PWM,Damped Light:Hardware PWM drive motor,small noise,smooth throttle,Damped Light technology,accurate control.
- DShot150/300/600 Ready:Not only support normal PWM throttle signal mode,Oneshot125,Oneshot42 and Multshot ultra high speed throttle signal,but also support the latest DShot150/300/600 digital throttle,strong anti-interference,fast response,input output cable use soft silica gel line,durable and convenient for welding.
40A 4IN1 ESC parameter:
- Section board:integrated
- Working voltage:2-6S(40A)
- The max continuous working current:4x40A
- The max instant working current:4x50A(40A);Oneshot 125/42;Dshot 150/300/600:support
- BlheliSuite parameter adjustment:support
- Firmware version:BLHeli_S/Dshot150/300/600;16.6(G_H_30)
- Size:39x36x9mm
- N.W:9.6g
- G.W:35g
- Packaging size:62x58x17mm

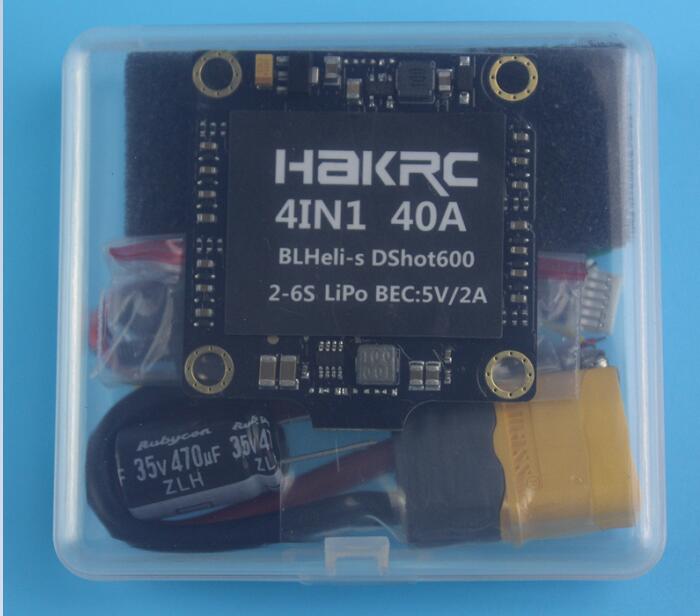

Package List:
- 1 x HAKRC 40A 4 in 1 ESC BLHeli-S
