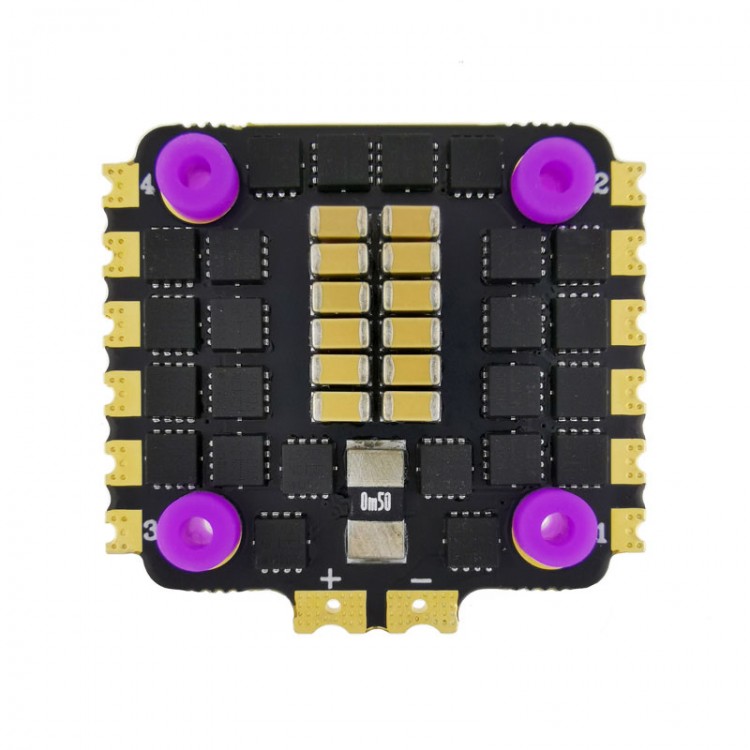

HAKRC BL-S 35A Drone ESC 4 In 1 ESC 20x20MM/0.8x0.8" 2-6S ESC Accessory For Drones Model Airplanes
Features:
- Quality Hardware: EMF8BB21F16G main control chip boasts operating frequency up to 48MHz. It uses imported mosfet, three-in-one IC driver, and imported high-quality ceramic capacitors. High-end PCB production process. Its pads are all metalized edging, so that you can avoid the pads falling off during use. 3 ounces of copper thickness and 6-layer board greatly reducing heat generation, featuring high efficiency
- Highly Integrated and Compact Size: With 4pcs high-performance 35A ESC and built-in ammeter, its volume is only the same as that of flight controller of racing drones, enabling easy installation and wiring. Specially customized for competition-level FPV racing drones
- Native Support For BLHeli-S: The firmware ensures powerful performance and rich functions. And it supports multiple ways to set parameters, or upgrade its firmware (For example, use a throttle signal cable, other development boards, or a flight controller with firmware for cleanflight or betaflight to set or upgrade the ESC)
- Hardware PWM, Damped Light: Hardware PWM drive motor, low noise, smoother throttle response. Damped Light technology and regenerative braking function make motor deceleration more sensitive and effective, and control more precise
- DShot150/300/ 600 Ready: It not only supports for ordinary PWM throttle signal mode, Oneshot125, Oneshot42 and Multshot ultra-high speed throttle signal, but also supports for the current DShot150/300/600 digital throttle, with strong anti-interference ability and rapid response. The input and output cables use soft silicone cables, which are very durable, resistant to high temperatures and convenient for soldering
Parameters:
- Working voltage: 2-6S
- Maximum continuous working current: 35A
- Maximum instantaneous working current: 40A
- Support communication mode: support for DShot150/300/600 PWM, Oneshot125, Oneshot42 and Multshot
- Adjustment parameters: support
- Firmware version: BL16.7
- Installation hole distance: 20 x 20mm/0.8 x 0.8"
- Product size: 31 x 30 x 6mm/1.2 x 1.2 x 0.2"
- N.W.: 6.1g/0.01 lb
Package Included:
- 1 x Set of ESC
