HAKRC Upgraded Mini F4 Flight Control Integrated OSD ESC Built-in 5V 1A BEC FPV RC Racer

HAKRC Upgraded Mini F4 Flight Control Integrated OSD ESC Built-in 5V 1A BEC FPV RC Racer

https://github.com/Betaflight

Download

Betaflight firmware download

HAKRC MINIF4 based on OMNIBUSF4SD (Betaflight) flight control,integrated Betaflight original OSD,barometer.

Basic function:
- Section board:No
- Power voltage current test:integrated: only voltage test
- OSD: integrated,BEC:5V/2A
- Flight control power supply:integrated
- Barometer:integrated
- Black box:black box
- Working voltage:2-4S LIPO

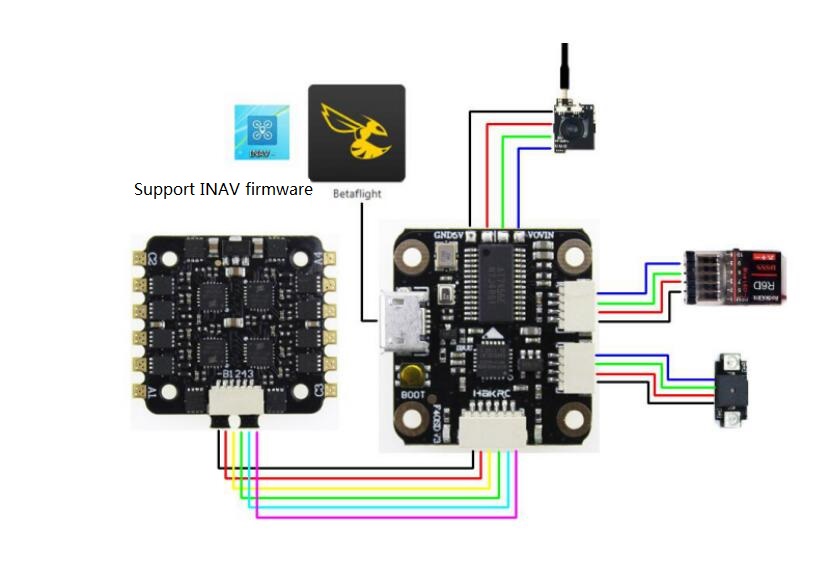

- BlheliSuite parameter adjusting:support,also support CF,INAV brush firmware

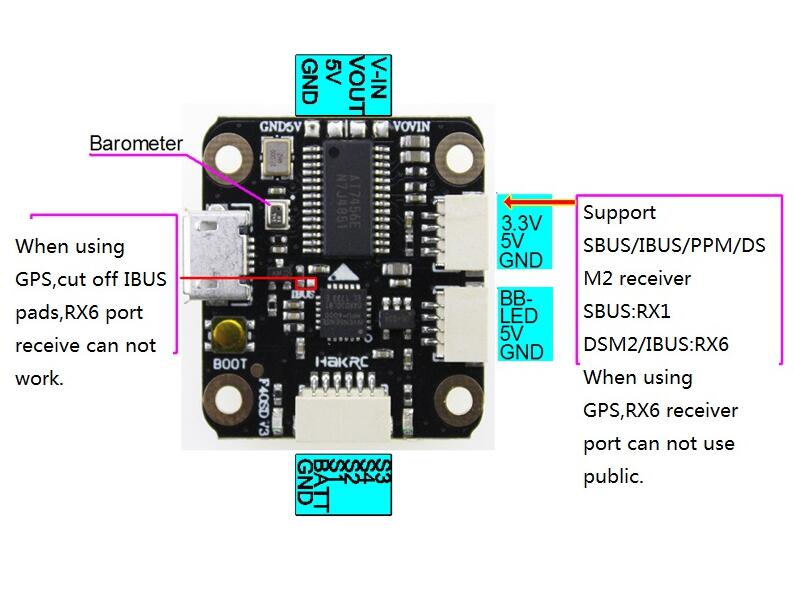

Interface description:

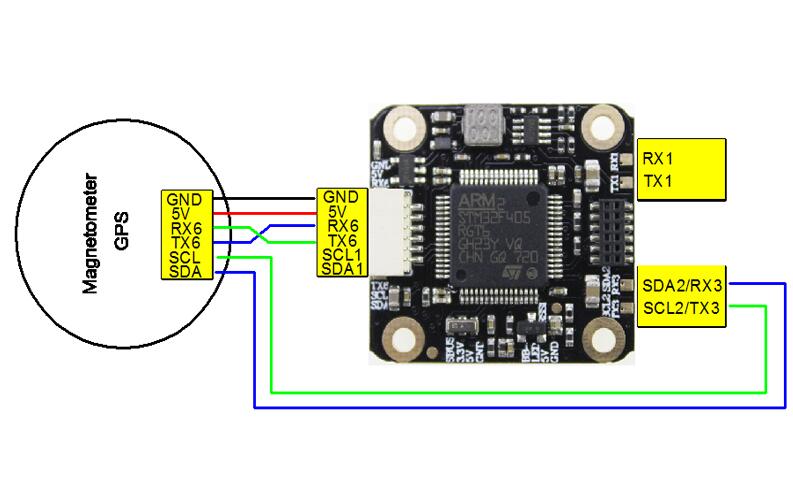

- Support receiver:PPM,SBUS,IBUS,DSM2;SBUS:select RX1 IBUS,DSM2:select RX6(need short connection F4 front IBU pads)
- RX & TX ports:2pcs;only pads,no plug - in port
- Receiver interface:1pcs plug socket,convenient for mass production
- Camera interface:1pcs welding port
- Image transmission port:1pcs welding
- ESC signal port:2pcs,upper lower pin,plug -in,convenient for mass production
- LED & BB port:1pcs plug-in,convenient for mass production
- RSSI port:1pcs,only can weld,only pads,no plug-in port

Basic parameter:
- Firmware version,Ground station:BetaFlight 3.20 SD BetaFlight;BetaFlight 3.20,PPM& LED,optional.
- OSD firmware version:BetaFlight OSD
- Camera and transmission voltage:5V
- Size:27x25mm;packaging:50x48x15mm
- Weight:3.3g;packaging:15g

Features:
- HAKRC MINI F4 stable firmware,integrated processor and sensor,wiring power chip.
- HAKRC MINI F4 Bataflight GUI (Windows,OSX and Linux)
- HAKRC MINI F4 on a small board:27x25x8mm(LxWxH),3.3g weight.
- Support OneShot /DShot ESC protocol,simplify PID parameter adjust and fast feedback.
- Multi type receiver supports SBus, SumH, SumD, Spektrum1024/2048,XBUS, IBUS,PPM receiver.(built-in 5V & 3.3V step-down)
- Programmable LED light,adjust color and mode,for FPV competition.(convenient for eye sight flight and night flight)
- Battery monitor:monitoring port voltage and current.After data calibration,it can display the current battery voltage and real-time power output conditions for flight status.
- Alarm buzzer:buzzer interface for sound alarm and prompt

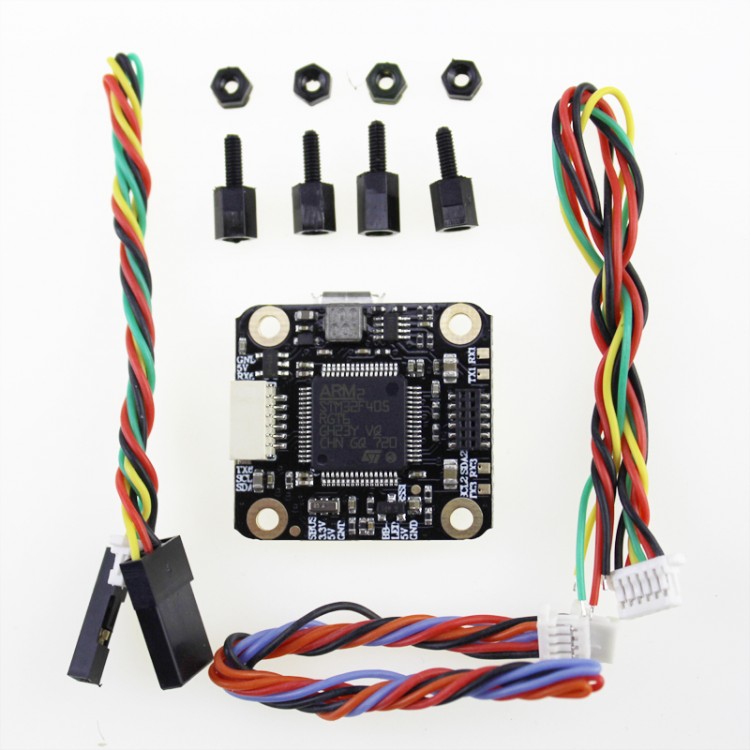

Package List:
- 1 x Upgraded F4 Flight Control
