Half-Bridge Integrated DRSSTC Driver Set Tesla Coil Driver Board + Fan + Fuses + Fixing Accessories

Half-Bridge Integrated DRSSTC Driver Set Tesla Coil Driver Board + Fan + Fuses + Fixing Accessories

Description:

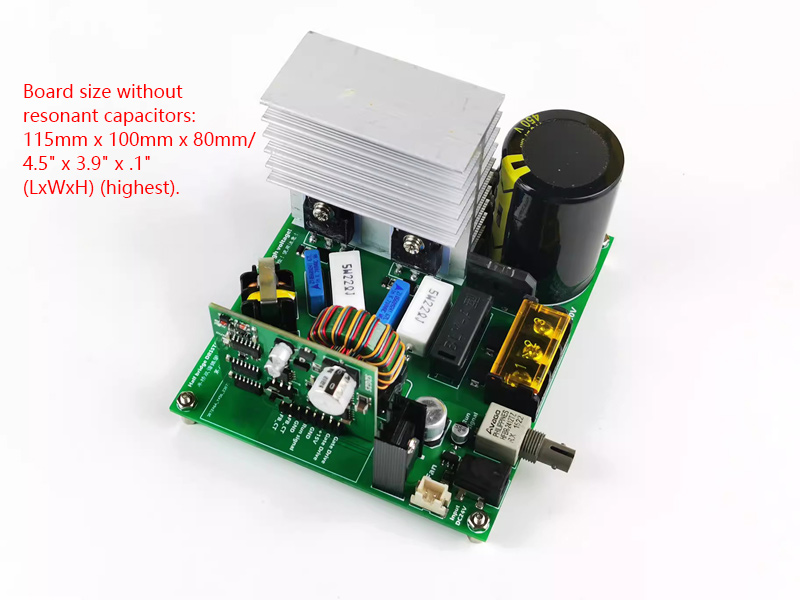

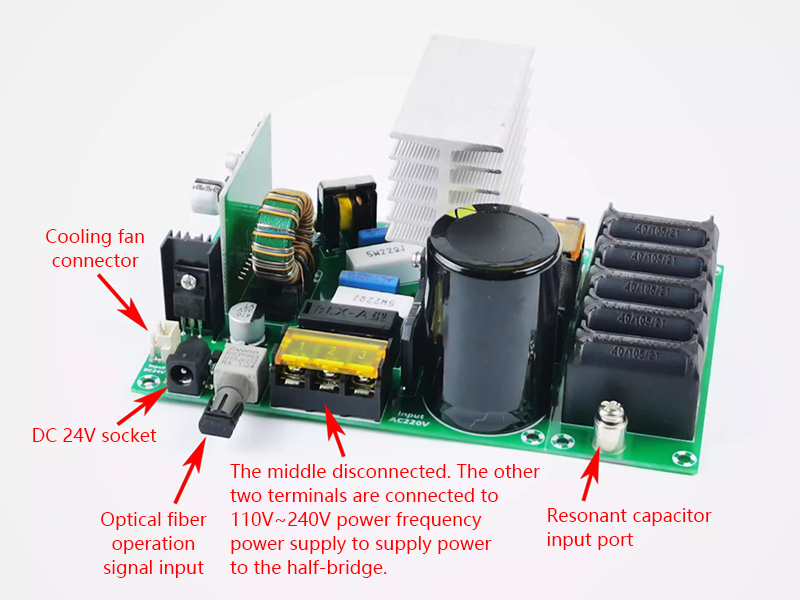

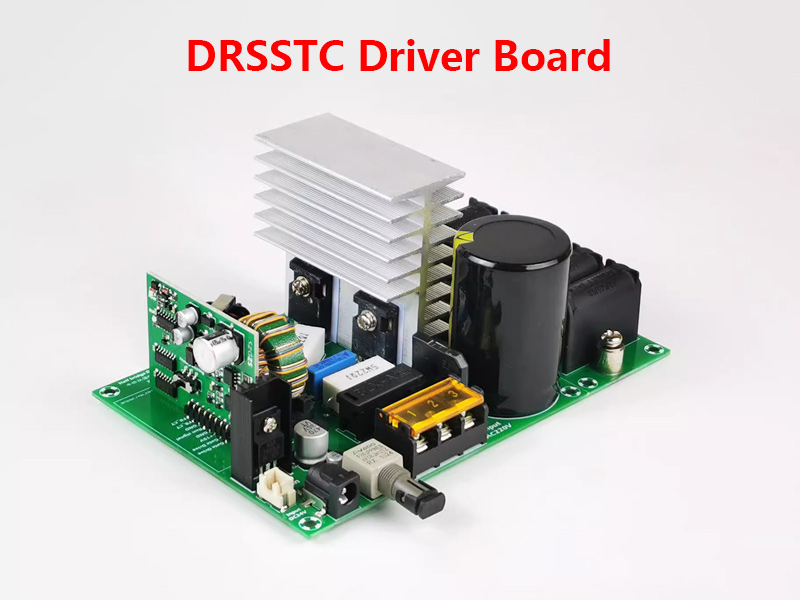

The DRSSTC driver kit can be used to make small DRSSTC! It is an integrated DRSSTC driver. It is simple to wire and easy to use the driver board, which solves the problem of modular combination for small DRSSTC production!

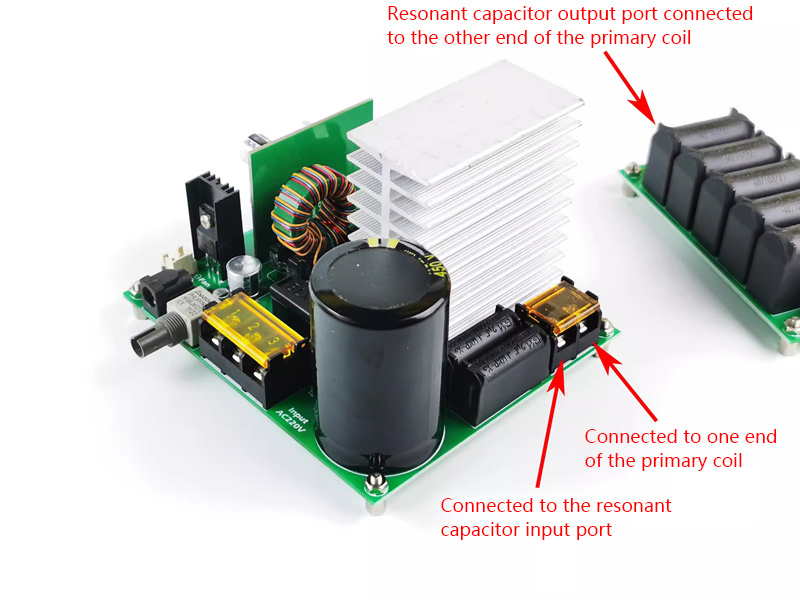

It not only integrates a logic drive circuit and a half-bridge inverter circuit, but also the resonant capacitor and signal transformer in the driver board! You only need to connect the matching primary coil. Thus, it is very convenient to wire.

It is fully compatible with 110V~240V AC power supply, and an arc can be generated up to about 30cm/11.8". We provide detailed primary, secondary and grading ring parameters. You don't have to calculate the parameters by yourselves. This set optimizes the switching waveform and completely solves the problem of suddenly damaged electronic components caused by spikes!

Features:
- All-in-one half-bridge DRSSTC driver board
- Integrated transformer and resonant capacitors

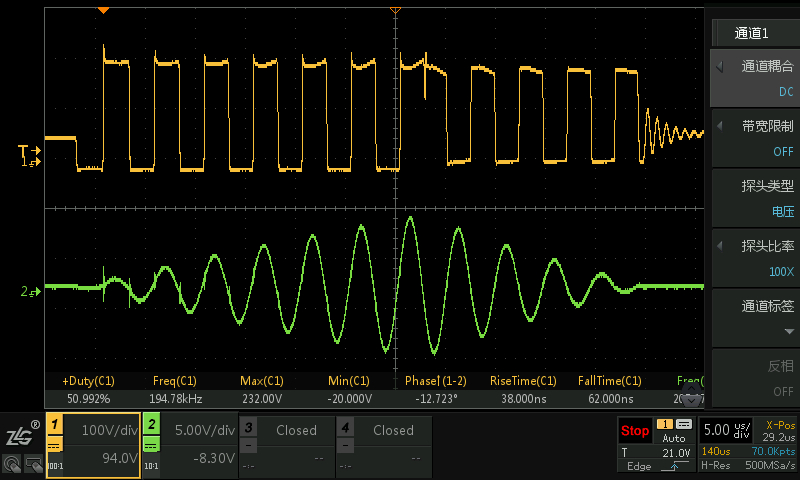

- Improved design makes the waveform clean
- Detailed primary and secondary parameters are provided
- Just do it by the parameters! It's easy to use
- Independent driver board with dead band control to reduce heat generation

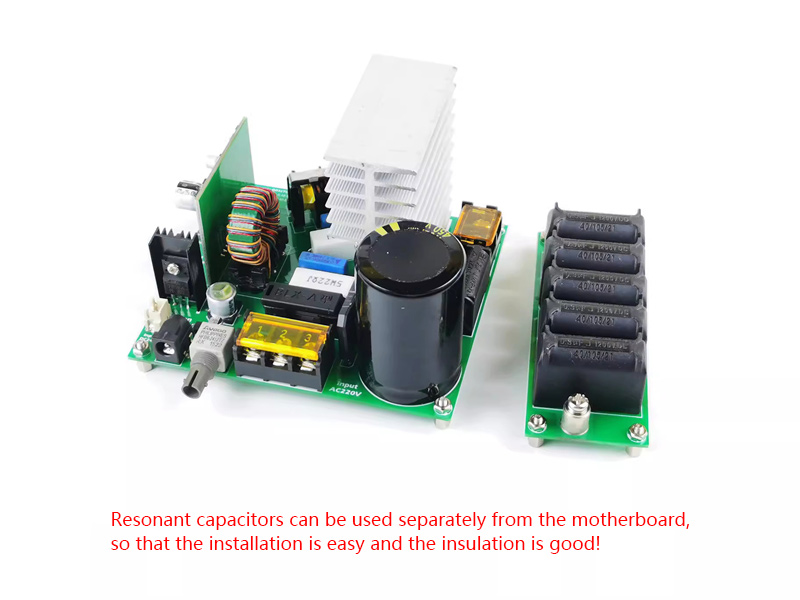

- Resonant capacitors can be separated from the driver board, with better insulation
- New IGBT absorption circuit has no spikes, so electronic components will not be damaged suddenly

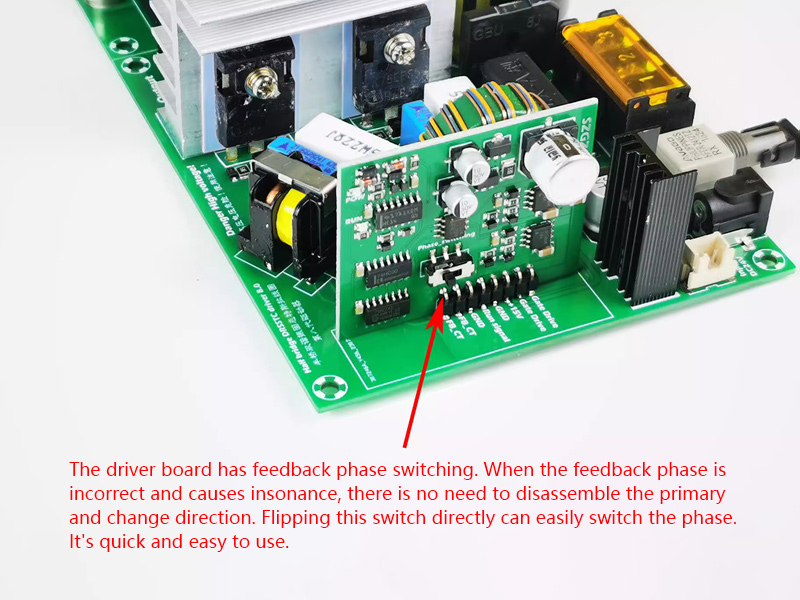

- The driver board has feedback phase switching: When the feedback phase is incorrect and causes insonance, there is no need to disassemble the primary and change direction. Flipping this switch directly can easily switch the phase. It's quick and easy to use

Package Included:
- 1 x Finished driver board
- 1 x 7025 fan
- 2 x Fuses
- 8 x M3 columns
- 8 x M3 nuts

Packaging Details:
- Weight: 0.75kg

Note:
- The driver board cannot be used alone. It must be used with a supporting controller for convenient debugging.

Disclaimer:
Tesla coil is a special high-voltage device. Making and operating a Tesla coil may result in personal injury or property damage, and the resulting consequences are not attributable to the designer or seller of this device.

Precautions for Use and Safety Warnings:
- Please pay attention to electrical safety. Because Tesla coil generates extremely high voltages and high-frequency arcs, never touch the output arc of the Tesla coil. Once the arc is touched, you may get burned. The worst-case scenario is that you will receive a potentially life-threatening electric shock!
- The driver board in power-on operation is also dangerous because there are capacitors of very large capacity installed on the drive board! Therefore, it is forbidden to directly contact the driver board after powering on! When the driver board is powered off, it is recommended to cut off the power supply first, wait for the Tesla coil output arc to disappear, then cut off the power supply, and allow the driver board to sit for 10 minutes. This is done to ensure that the charge stored within the energy storage capacitors can be safely released! It is forbidden to manually short circuit to release the charge, as this will damage the energy storage capacitors!
- Users under the age of 18 are required to use it under the supervision of an experienced adult!
- When the Tesla coil is working, it will produce a strong magnetic field and a strong electric field, which will induce current on the surrounding metal objects, including wires, cables and nearby electronic devices, and produce strong electromagnetic radiation! Therefore, if there are implanted/non-implantable electronic medical device carriers around, it is forbidden to use Tesla coils! Those with pacemakers are forbidden to use Tesla coils! People with a pacemaker should stay away from the device!
- The arc output of the Tesla coil is very noisy, so it is recommended that you prepare earplugs to protect your eardrums!
- The high-temperature and high-pressure arc of the Tesla coil causes gases in the air to form other compounds, including ozone and nitrogen oxides, which you will smell when the Tesla coil is working. So keep your Tesla coil working environment well ventilated to prevent the build-up of pungent odors like ozone and nitrogen oxides!
- The high-temperature arc of the Tesla coil can ignite flammable items, including solids, liquids, gases, etc. Therefore, it is forbidden to place flammable and explosive materials around the working environment of Tesla coils, and relevant fire extinguishing facilities should be placed in the workplace!
- When the Tesla coil is working for a long time, the power components, radiators and other parts will generate heat, and it is necessary to ensure that the cooling fan is working during the entire process. Running too high a temperature will burn out the driver board!
- After the Tesla coil is powered on, please not touch the secondary coil directly, because the secondary coil will have a certain induced voltage. Do not disconnect the ground wire directly, let it stand for 10 minutes and wait for the charge to release naturally!
