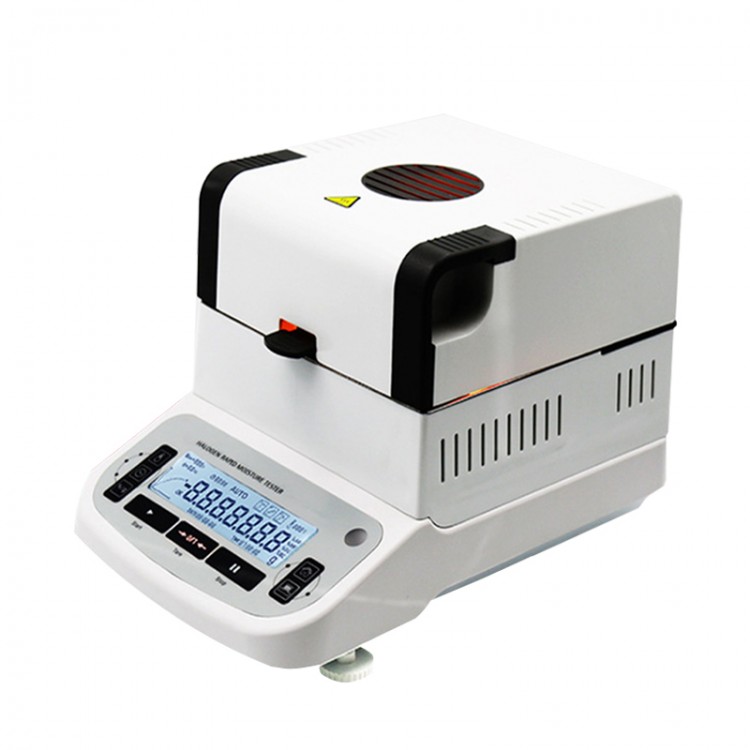

Halogen Moisture Analyzer Electronic Moisture Tester Measuring Meter for Food Plastic Grain

Halogen Moisture Analyzer Electronic Moisture Tester Measuring Meter for Food Plastic Grain

Specification:
Model: JHY-720A
Range (g): 120-0.001
Readability: 0.01%
Measurement display mode: moisture value, solid content, moisture content curve
Measuring range: 0.01-100% moisture
Operating temperature: at room temperature
Weighing pan size (mm): Φ90
Start-up warm-up (minutes): 20-30
Heating temperature range (℃): RT~~160/200
Drying procedure: standard heating method
Weightlessness setting: 30S/60S/120S
Stop mode: automatic stop, manual stop, scheduled stop
Setting time: 0~99 minutes, 1 minute interval
Printing: thermal printing (external), output printing results
Size (L*W*H) (mm): 310*205*200
Net weight: 4kg

Features:
1. Widely used and suitable for moisture determination in various industries
2. No installation and debugging required, no cumbersome process, can be used after disassembly.
3. Simple operation, short detection time, high working efficiency.
4. High measurement accuracy, long service life, stable performance.
5. Unique windshield design makes the instrument weighing system more stable.
6. The heating method of ring halogen lamp provides a uniform heating environment for the sample.
7. Advanced humidity control system to avoid dry resistance caused by free moisture.
8. Excellent and unique temperature control heating system makes the results more accurate, with real-time curve display, intuitive observation of moisture changes.
9. Rich data display, can display curve graph, time, real-time temperature, moisture, solid content
10. Fully automatic measurement, no need to watch over the instrument during measuring.
11. The heating chamber adopts pure stainless steel chamber cover, which is high temperature resistant and easy to clean.
12. Equipped with RS232 communication interface, can connect printers, computers and other peripheral equipment.

Halogen Lamp:
Tungsten halogen ring lamp is injected into the infrared lamp with iodine or bromine, etc. halogen gas; at high temperature, the sublimated tungsten wire reacts with the halogen, and the sublimated tungsten will re-solidify on the tungsten wire to form a balanced cycle to prevent the tungsten wire from breaking prematurely. Therefore, the tungsten halogen lamp has longer service life than ordinary infrared lamp.

Heating System:
The quality and unique temperature control heating system has the characteristics of uniform heating, short drying time, clean, high efficiency and energy saving. A variety of heating functions can meet the requirements of moisture determination of various types of samples.

Application:
The moisture analyzer can be widely used in all industries that need to quickly measure moisture, such as plastics, plastic particles, rubber, tobacco, paper, food (dehydrated vegetables, meat, noodles, flour, biscuits, pies, aquatic processing), tea, beverages, grain, cereals, chemical raw materials, pharmaceutical raw materials, textile raw materials, flour, plastic raw materials and other plastics in the laboratory and production process, at the same time meeting the requirements of solid, granule, powder, colloid and liquid moisture content measurement.

Package List:
-1 x Moisture Analyzer
-1 x Windshield Pan
-1 x Sample Pan Holder
-1 x Sample Pan Bracket
-2 x Sample Tray
-1 x Standard Weight
-1 x Manual
-1 x Power Cable
