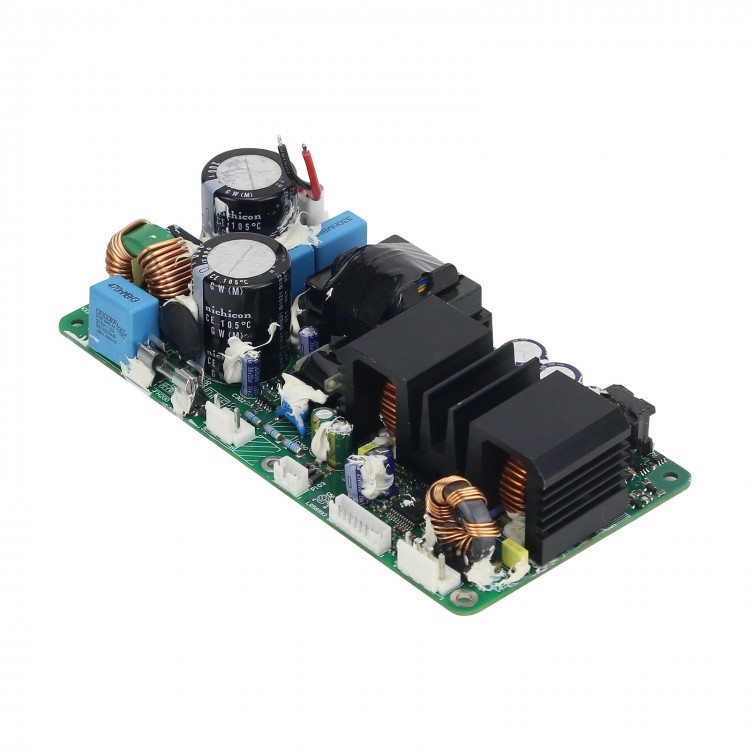

HamGeek 125ASX2 2x125W Amplifier Board Power Amp Board w/ Integrated Power Supply for ICEpower
Description:
HamGeek 125ASX2 is a fully integrated, intelligent audio power conversion solution designed particularly for highly competitive consumer and professional audio products. The amp board is EMC and safety approved and the "black-box" completeness allows for fast design-in and minimized time to market. Key benefits include:
* State-of-the-art, high efficiency amplification stage based on the patented HCOM modulation and MECC control techniques
* An Supply (for ICEpower) with selectable mains converter and separate aux converter
* A wide set of features for plug-and play implementation into applications such as active speakers and subwoofers, wireless speakers, multimedia audio, musical instrument amplifiers and distributed audio
The HamGeek 125ASX2 can be configured to either stereo or mono output. Combined with
the auxiliary supply for powering external circuitry and the complete elimination of external
heat sinks and EMI shields, the amplifier board is the natural choice in any audio application that requires a compact, integrated power solution.
The amplifier board is protected against short circuits, overload and overheating and includes on-board fuses and EMI filtering to provide a CE and FCC pre-approved design.
Key Features:
* Fully integrated audio power solution
* Rugged construction
* Thermal protection
* Over-current protection
* Sound optimized soft clipping
* Suitable for CE approved designs
* EMI conforms to: EN55013, EN55020, EN61000-3-2, EN61000-3-3 and FCC part 15-B
* Safety conforms to: IEC/UL 60065
Key Specifications:
* 450W at 1% THD+N, 20Hz-20kHz, 4Ω, BTL
* 2 x 120W at 1% THD+N, 20Hz-20kHz, 4Ω, SE (both channels driven)
* 220W (2Ω) + 58W (8Ω) at 1% THD+N, 20Hz – 20kHz, SE (both channels driven with asymmetric load)
* Max output voltage / current: 32Vp / 20Ap, 4Ω, SE
* Max output voltage / current: 60Vp / 20Ap, 4Ω, BTL
* 121dBA dynamic range (BTL-mode)
* 117dBA dynamic range (SE-mode)
* THD+N = 0.002% at 1W (8Ω, 1kHz, SE-mode)
* THD+N = 0.002% at 1W (8Ω, 1kHz, BTL-mode)
* 86.4 % total efficiency at 250W, 8Ω
* CCIF Intermodulation distortion = 0.0009%, 10W, 4Ω, 18.5kHz/1kHz
* 24V unregulated auxiliary power supply
* Selectable Mains 85-132V AC & 170-264V AC
Package Included:
* 1 x Amplifier Board
