HamGeek 5Khz-148Mhz Super Miniwhip Active Antenna Amplifier Suitable For VLF/LW/MW/SW/FM

Availability: In stock, usually dispatched in 1 business day

  • Price:$108.66
  • Price in reward points: 1087 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $106.49 $104.31 $101.05 $96.71 Contact US
Quantity:

HamGeek 5Khz-148Mhz Super Miniwhip Active Antenna Amplifier Suitable For VLF/LW/MW/SW/FM

Description:

It is the best performance miniwhip ever!

The lowest frequency can reach to 5kHz, featuring ultra-low background noise. It is suitable for medium and long wave DX! Frequency range: 5k to 148M +0/-3dB.

This version Miniwhip is an excellent DX antenna for vertically polarized wide band reception of VLF, LW, MW, SW, FM broadcast, airplane band and 2m amateur band.

Sensitivity:

- Using the internal antenna surface only: abt. -17dB
- With added external 1,5m x 1cm antenna rod: abt. -12dB
- Input RF impedance abt. 7 Mohm // 6pF
- Input DC resistance 22 Mohm
- Includes over-voltage protection
- Output impedance: 50 Ohms asymmetrical

Package Included:

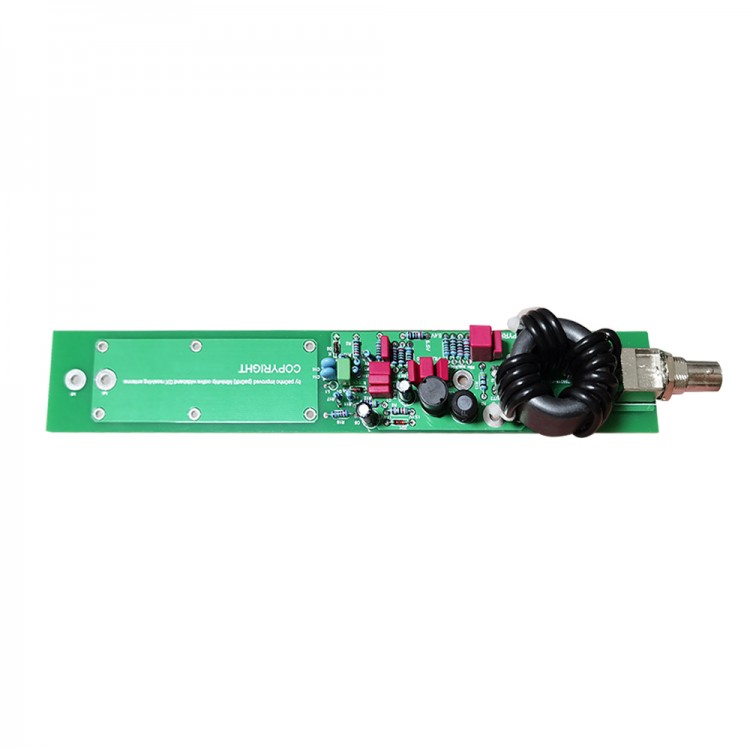

- 1 x Miniwhip Amplifier Board

Note:
- It comes without Bias Tee power supply unit.
- Because it is a handmade DIY product, it will be shipped 7-10 days after an order is placed. If it is in urgent need, please not buy it. Thank you for your understanding!
