HamGeek ATS20-II Pro DSP Receiver Full Band Radio FM AM (MW & SW) and SSB (LSB &USB) All Band Radio

HamGeek ATS20-II Pro DSP Receiver Full Band Radio FM AM (MW & SW) and SSB (LSB &USB) All Band Radio

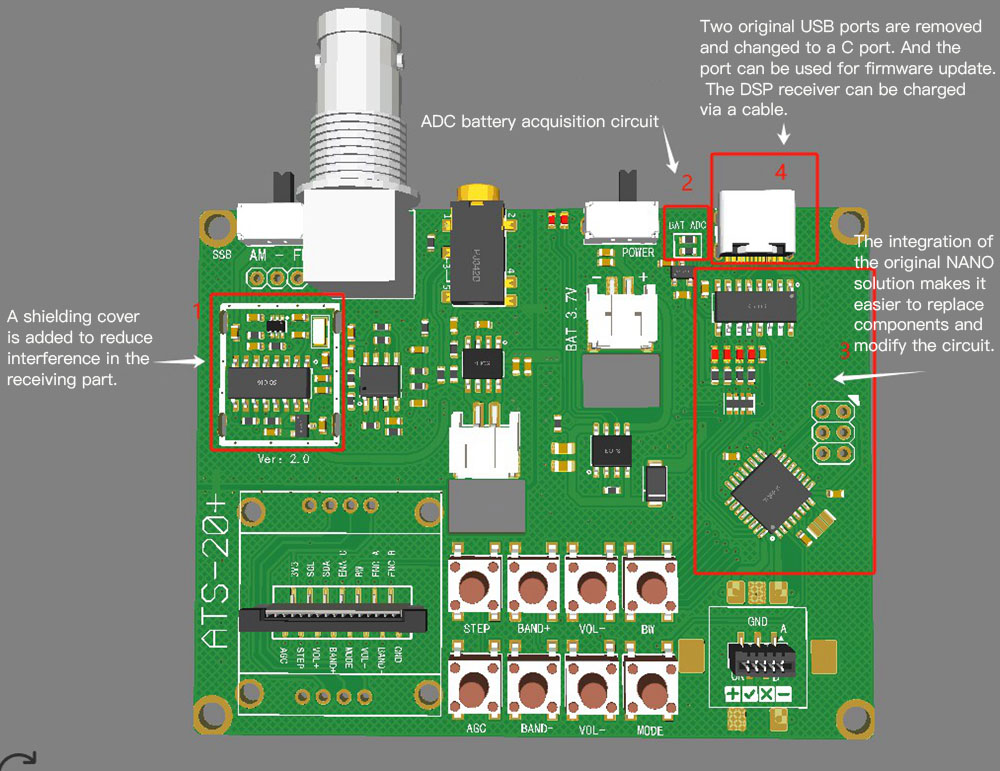

Improvements Based on ATS20+:
1. It integrates NANO

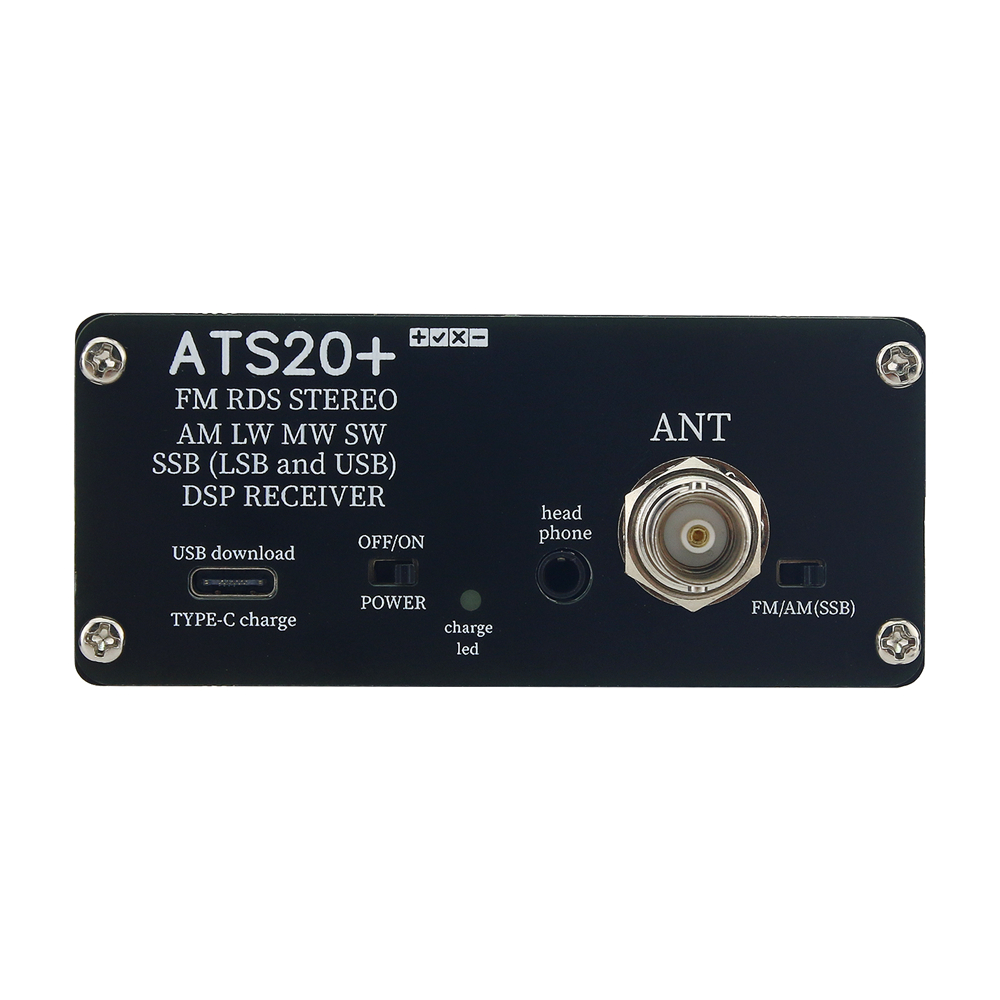

2. All-in-one interface for charging and data
3. Signal sensitivity is increased by 2-3db compared with the original signal
4. A shielding cover is added to reduce the interference of the receiving part
5. An ADC battery voltage acquisition circuit is added

Description:

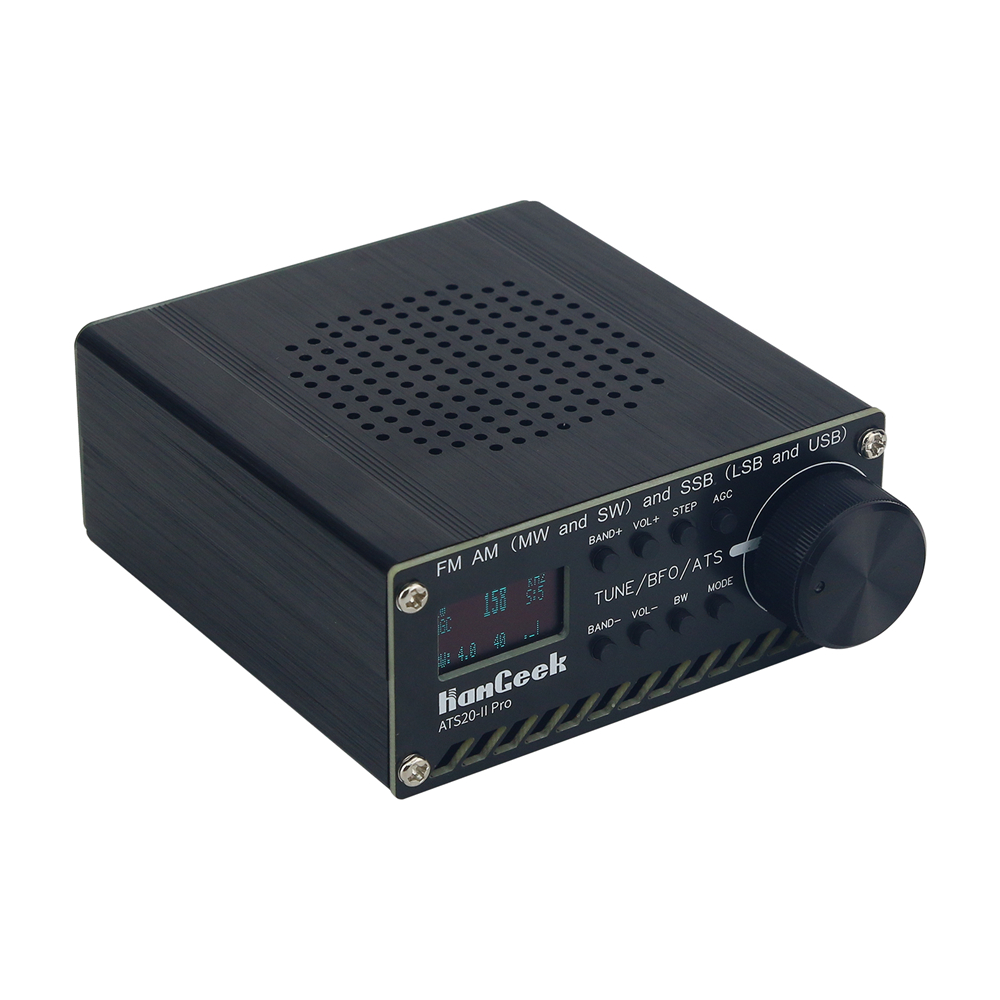

With a 0.96" OLED display, HamGeek ATS20-II Pro is a quality full-band radio receiver, supporting auto-hold setting function after power failure. Equipped with audio output, it supports 3.5mm earphones. Also, it supports 4ohm speaker 2W output. With 22 commercial and ham radio bands pre-configured, you can use it freely.

Features:

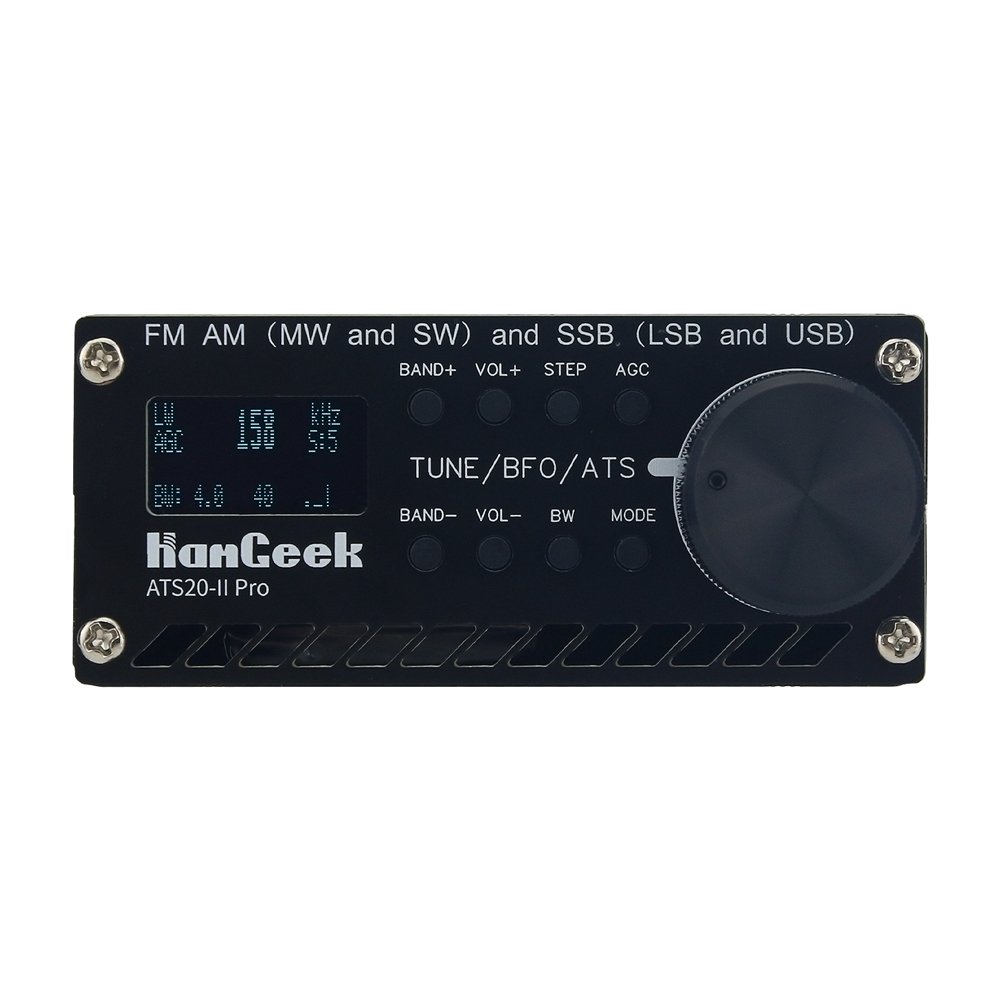

- With a 0.96" OLED display, you can see the FM band, AGC on/off, MONO according to your demands
- Supports auto-hold setting function after power failure
- Internal 3.6V 800mAh polymer lithium battery for stable and sustainable power supply
- Supports USB recharging
- Equipped with audio output to support 3.5mm earphones
- Also supports 8ohm speaker 1.5W output
- Antenna interface uses SMA interface and the printed circuit board retains the SI4732 package, you can replace the chip by yourselves, and the software is compatible
- With 22 commercial and ham radio bands pre-configured, you can use it freely
- Supported bands: FM, AM (MW and SW) and SSB (LSB and USB)
- Audio bandwidth filter 0.5, 1, 1.2, 2.2, 3 and 4Khz
- BFO Control
- Frequency step switch (1, 5 and 10KHz)

Bands:
{FM_BAND_TYPE, 8400, 10800, 10430, 10},
{LW_BAND_TYPE, 100, 510, 300, 1},
{MW_BAND_TYPE, 520, 1720, 810, 10},
{SW_BAND_TYPE, 1720, 3500, 1900, 1}, // 160 meters
{SW_BAND_TYPE, 3500, 4500, 3700, 1}, // 80 meters
{SW_BAND_TYPE, 4500, 5500, 4850, 5},
{SW_BAND_TYPE, 5500, 6300, 6000, 5},
{SW_BAND_TYPE, 6300, 7800, 7050, 5}, // 40 meters
{SW_BAND_TYPE, 7800, 10000, 9600, 5},
{SW_BAND_TYPE, 10000, 11000, 10100, 1}, // 30 meters
{SW_BAND_TYPE, 11000, 12500, 11940, 5},
{SW_BAND_TYPE, 12500, 13900, 13600, 5},
{SW_BAND_TYPE, 13900, 14500, 14270, 1}, // 20 meters
{SW_BAND_TYPE, 14500, 15900, 15300, 5},
{SW_BAND_TYPE, 15900, 17900, 17600, 5},
{SW_BAND_TYPE, 17900, 18300, 18100, 1},  // 17 meters
{SW_BAND_TYPE, 18300, 21900, 21200, 1},  // 15 meters
{SW_BAND_TYPE, 21900, 26200, 24940, 1},  // 12 meters
{SW_BAND_TYPE, 26200, 27900, 27500, 1},  // CB band (11 meters)
{SW_BAND_TYPE, 27900, 30000, 28400, 1}}; // 10 meters

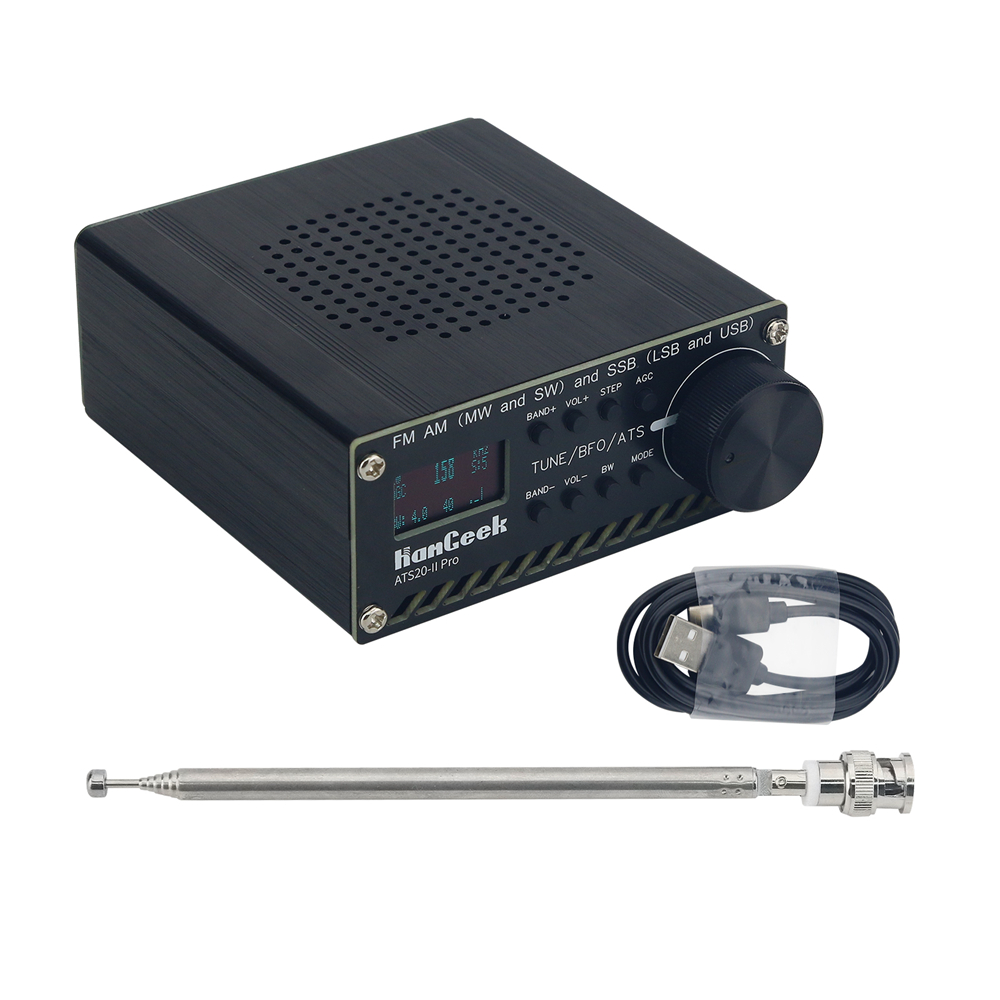

Package Included:
- 1 x HamGeek ATS20-II Pro DSP Receiver
- 1 x Antenna
- 1 x USB Cable

Packaging Details:
- G.W.: 0.3kg
