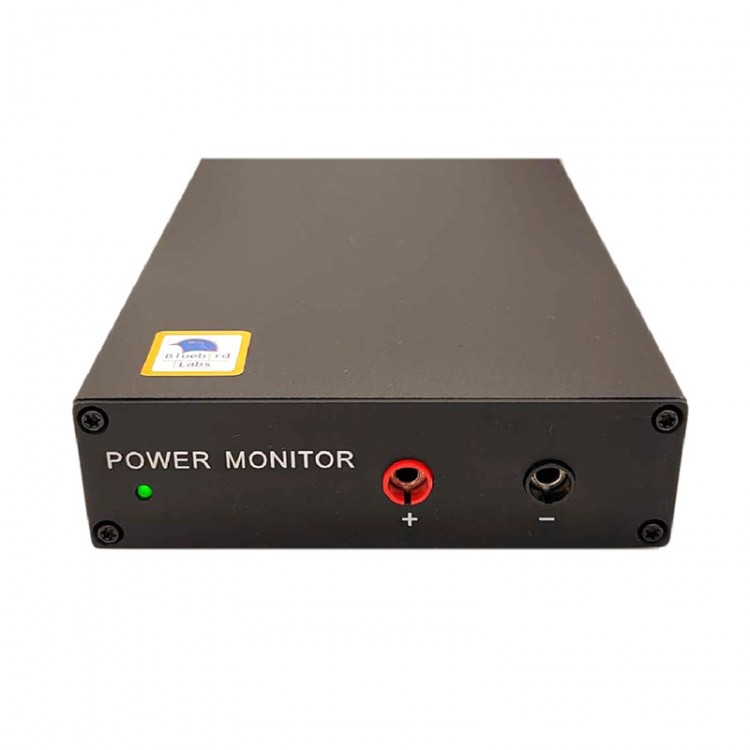

HamGeek BLU926 100nA-4A Power Monitor Low Power Consumption Analyzer Power Current Recording Tester

HamGeek BLU926 100nA-4A Power Monitor Low Power Consumption Analyzer Power Current Recording Tester

Description:
It is an easy-to-use current measurement and power optimization tool for embedded solutions. It can supply power and measure the current of the device under test. In addition, it has an on-board voltage regulator.

It also features advanced analog measurement units with a high dynamic and wide range for accurate power consumption measurements from off-state nA to active-state A. It has a high enough temporal resolution to detect peaks.

It is affordable. Powered by an adapter, it also saves desk space. So every developer on the team can have one at their desk, and they can immediately see the impact of changes on energy consumption and make informed choices to consider battery life during the design process.

Features:
- Focus on power consumption current analysis
- Facilitate power consumption R&D and product quality control
- Resolution up to 100nA; the regulated output range is 0.5V-5V; and the current sampling frequency is 20KHz
- The adjustable regulated output has no voltage drop interference
- Automatic range

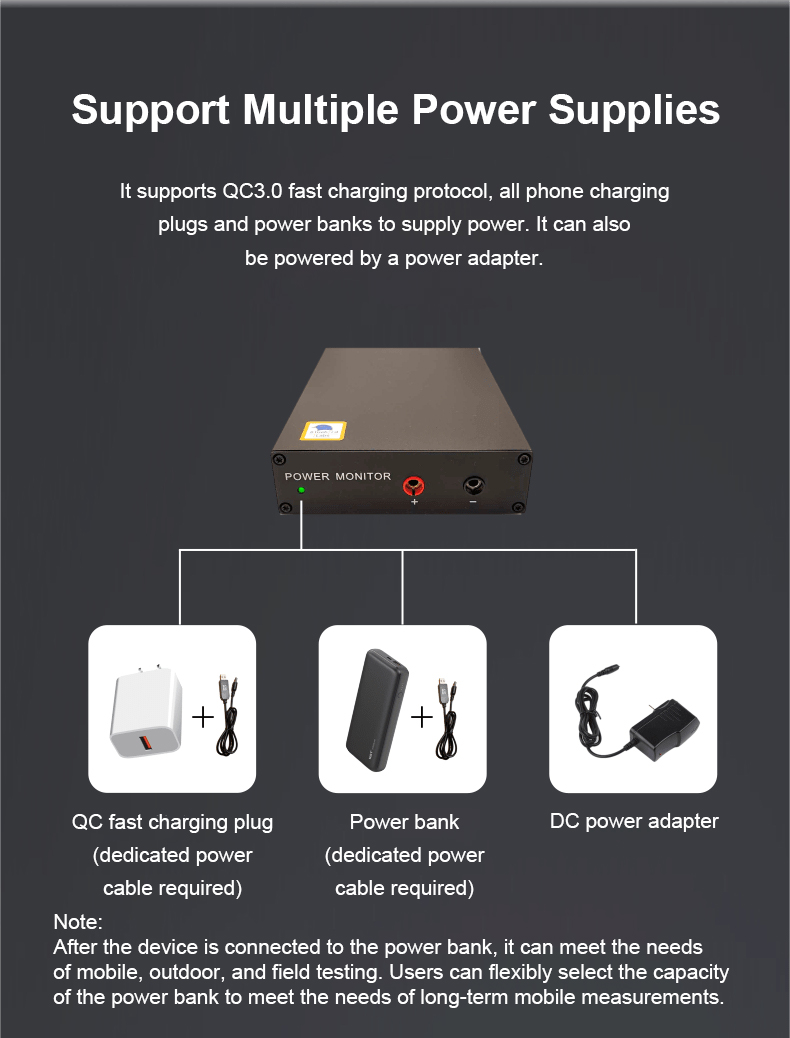

- Support multiple power supplies: Supporting QC3.0 fast charging protocol, all phone charging plugs and power banks to supply power. It can also be powered by a power adapter
- Stable power supply voltage output and strong load capacity. Background noise <80nA: The extremely low background noise ensures high accuracy and resolution of current measurement. Ripple <1mV: The voltage output ripple is extremely low, so there is no noise interference. No voltage drop: high voltage output accuracy, good stability, and no voltage drop interference
- Multi-layer protection: under-voltage protection, isolation design, short-circuit protection, anti-reverse connection design, and surge protection
- Upper computer software: Display, storage and playback of current waveforms to analyze average and instantaneous current consumption, Readings can be obtained over a longer period of time, while the required millisecond interval is amplified, and the measurement data can be exported to a CSV file. A computer can open multiple host computer software at the same time and connect multiple power analyzers for simultaneous measurement. Supported platforms for Windows 8, Windows 10, macOS and Linux
- Secondary development interface: Provide API interface and support third-party software to control devices such as BLU92x, BLU93x, BLU95x, BLU96x, BLU97X, BLU98x, and BLU99x series. It can control multiple devices and collect data at the same time to meet the user's personalized data statistical analysis and current warning

Operation Steps of Upper Computer Software:
1. Click "Select Device" to select the device
2. Enter the "input voltage" of the device to be tested
3. Enable power supply output
4. Click "Start"

Application Scenarios:
- Low-power products: low-energy Bluetooth, sensors, ICs, and radios
- IoT devices: ZigBee, NB-IOT, LoRa, LTE, WiFi, and 2G/4G/5G
- Mobile devices: mobile phones, tablets, laptops, wireless scanners, collectors, and PDAs
- Smart products: semiconductors, APP, smart door locks, smart watches, bracelets, and smart glasses
- Battery-powered products: mobile devices, medical products, automotive electronics, handheld devices, new energy, and battery-powered items

Specifications:
- Model: BLU926
- Continuous current range: 100nA-4A
- Range: automatic range
- Background noise: ≤80nA
- Current resolution: up to 100nA
- Voltage output range: 0.5V-5V
- Voltage output mode: adjustable regulated output
- Step voltage: Voltage accuracy 0.001V
- Output voltage ripple: <1mV
- Sample rate: 20KHz
- Transient response time: <3uS
- Load regulation: <1%
- Output protection: Short-circuit protection, surge protection, isolation design, and over-temperature protection
- Input protection: over-voltage protection, under-voltage protection, reverse polarity protection, and over-current protection
- Secondary development interface: support
- Host computer software: cross-platform support for Windows 8, Windows 10, macOS and Linux
- Power supply mode: power adapter, mobile phone charger, power bank, and DC stabilized power supply
- Dimensions: 163 x 115 x 33mm/6.4 x 4.5 x 1.3"

Attention:
- If you need higher output voltage, please contact customer service.

Package Included:
- 1 x Main Unit
- 1 x USB Communication Cable
- 1 x 15A Black Cable (Banana Connector to Alligator Clip)
- 1 x 15A Red Cable (Banana Connector to Alligator Clip)

Note:
- DC power adapter and batteries are not included.
