HamGeek DP200 7-54MHz 200W Portable Dipole Antenna Broadband Antenna Better than GP Antenna

HamGeek DP200 7-54MHz 200W Portable Dipole Antenna Broadband Antenna Better than GP Antenna

Description:
The DP200 is a portable dipole antenna with a full set weight of less than 2KG/LB (excluding the tripod). Due to the dipole design, its efficiency is higher than that of GP antenna, and the gain is also higher than that of GP antenna. Because of the directional gain, the bottom noise is also lower than that of the GP antenna. Its common mode interference is also less than that of GP antenna. When long-distance communication is required, the antenna can be erected in positive V. When short distance communication is required, the antenna can be erected horizontally. By adjusting the length of antenna dipole, it can adapt to the use of 7-54MHz bandwidth. It is very suitable for temporary erection, especially POTA.

Technical parameters:
- Bandwidth: 7-54MHz (By properly adjusting the length of the vibrator, it can work in the UV segment)
- SWR: <1.5
- Polarization mode: Horizontal polarization
- Input impedance: 50 Ω
- Continuous withstand power: 200W
- Maximum withstand power: 500W
- Folded size: 0.52m/1.7ft
- Maximum stretched size: 11.3m/37.1ft
- Maximum windward face: 0.026m2

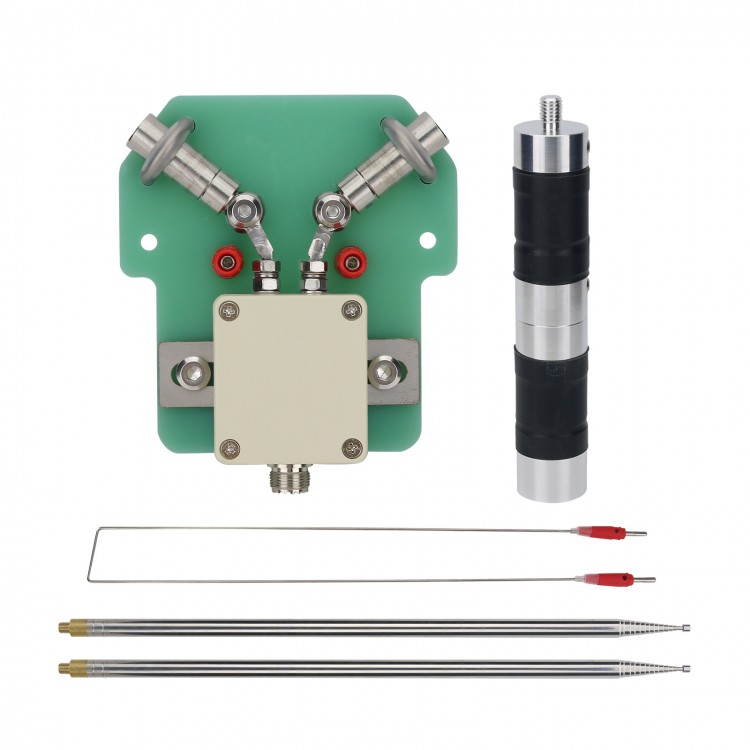

Package Included:
- 1 x Antenna pedestal
- 2 x 7M induction coils
- 2 x 5.6m rod antennas
- 1 x 40m matcher
