HAMGEEK E310 70MHz-6GHz SDR Software Defined Radio AD9361 ZYNQ7020 for Openwifi DragonOS Open5G-PHY

HAMGEEK E310 70MHz-6GHz SDR Software Defined Radio AD9361 ZYNQ7020 for Openwifi DragonOS Open5G-PHY

Description:
HAMGEEK E310 is a professional SDR transceiver. AD9361 for ADI is used as its radio frequency (RF) transceiver chip, supporting the RF frequency range from 70 MHz to 6 GHz. The AD9361 has configurable RF bandwidth up to 56 MHz. And the SDR supports synchronization of multiple AD9361 RF transceiver chips.

The HAMGEEK software defined radio supports many open source SDR software. For example, it can be used for Openwifi, GUNRadio, SDR#, SDRangel, Matlab Simulink, Gqrx SDR, STASAGEN, DragonOS and SigDigger.

It supports 2T2R. Thus, HAMGEEK E310 can be applied to various scenarios such as remote sensing, radar detection, digital broadcasting, digital front-end, Zigbee and Wifi.

Specifications:
- Brand: HAMGEEK
- Model: E310
- RFIC: AD9361 for ADI. Frequency 70M~6G (A9361). Up to 56M instantaneous bandwidth (AD9361)
- Number of channels: 2T2R MIMO
- Baseband processing: ZYNQ7020, dual core for ARM, Cortex-A9 1G Byte DDR3 RAM. 256Mbit QSPI
- Baseband processor: ZYNQ XC7Z020
- Interfaces: one Giga ETH, one USB 2.0, Type C USB-JTAG and USB-UART, and GPIO expansion
- Synchronization: External 10M, PPS inputs
- Clock: VCTCXO with an initial accuracy of 0.5ppm. Dynamically adjusted clock via digital PLL. The accuracy can be better than +/-5ppb
- API: For ADI IO (pre-installed), C/C++, and Python
- Dimensions: Board: 100mm x 60mm/3.9" x 2.4"; case: 107.5mm x 64.5mm x 23mm / 4.2" x 2.5" x 0.9"
- Power supply: USB TYPE-C powered
- Transmit power: 3dBm (depends on frequency)
- ADC: 12bit 61.44MS/s
- DAC: 12bit 61.44MS/s
- Noise figure: < 8db
- Power consumption: 2~6W
- Transmit IQ bandwidth: 10MSPS
- Host interface: 1G ETH
- GPS: None
- External synchronized clock: 10M/PPS
- Features: Hobbyist development, DIY, and open source code

SDR Kit for More Applications:
Firmware Porting:
1. For PlutoSDR and ZED+FMCCOMMS

Supported Open Source Projects:
1. For Openwifi
2. For srsRAN
3. For Open5G-PHY
4. For gps_sdr_sim

Supported Software:
1. For GNURadio
2. For SDR#
3. For SDRangel
4. For Matlab Simulink
5. For Gqrx SDR
6. For STASAGEN
7. For DragonOS
8. For SigDigger

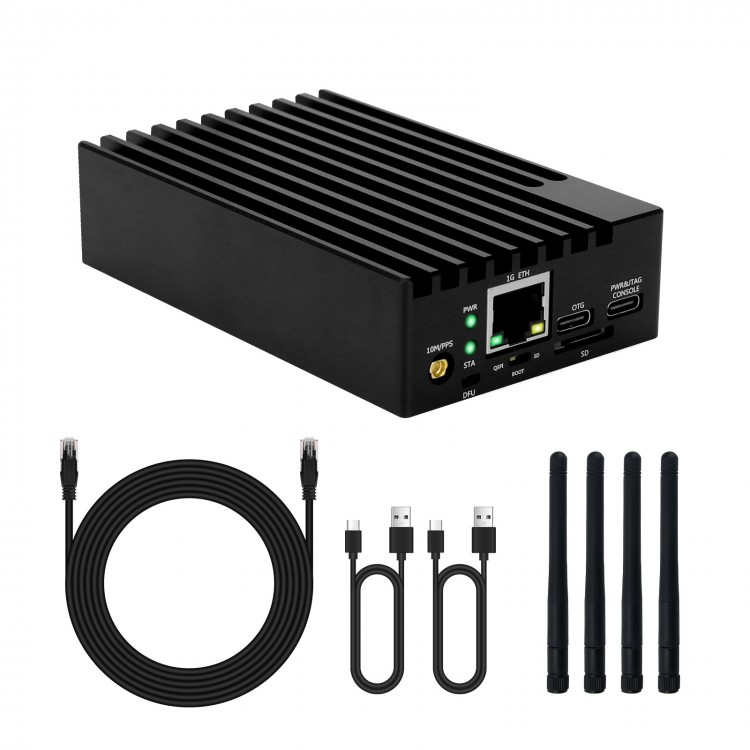

Package Included:
- 1 x HAMGEEK E310 SDR Transceiver
- 1 x Network Cable
- 2 x USB Cables
- 4 x Antennas

Packaging Details:
- Weight: 1KG
