HAMGEEK GPTWO-PRO 7-54MHz Portable Shortwave Antenna GP Antenna Outdoor Amateur Radio HF Antenna

HAMGEEK GPTWO-PRO 7-54MHz Portable Shortwave Antenna GP Antenna Outdoor Amateur Radio HF Antenna

Features:
- 7-54MHz standard GP antenna
- Adjustable length of its telescopic antenna meets your various needs
- Portable design and small volume make it convenient to store in your backpack and easy to carry
- The HAMGEEK antenna enables easy erection outdoors. It takes less than 5 minutes for one person to erect the antenna

Parameters of HAMGEEK Antenna:
- Frequency: 7-54MHz
- Power: 200W SSB CW FM

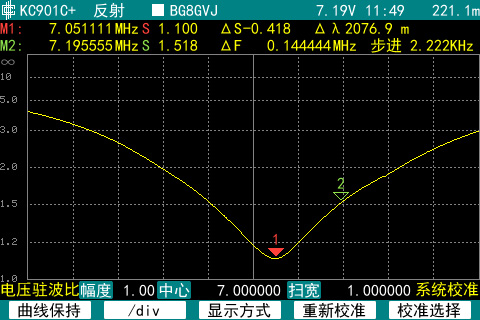

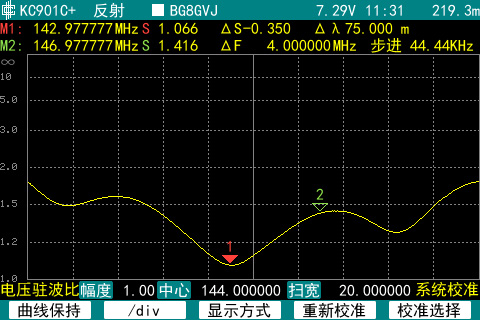

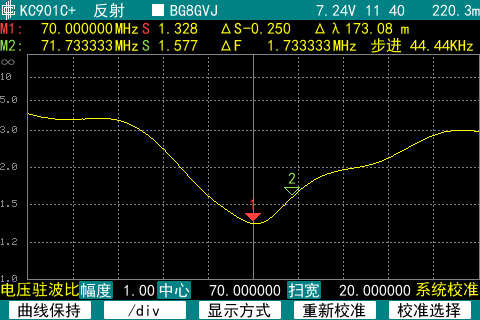

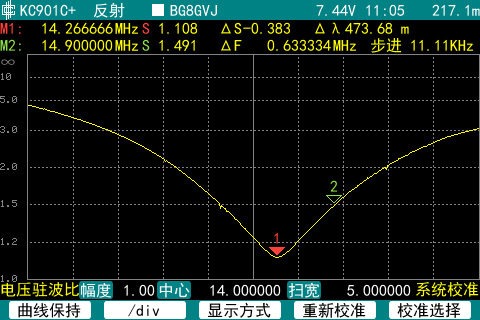

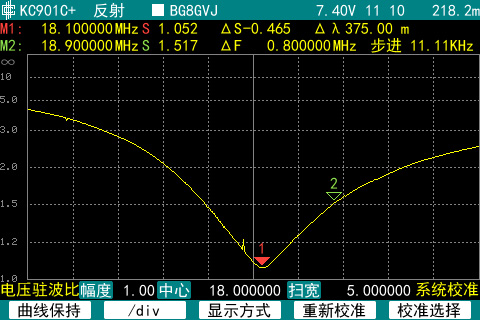

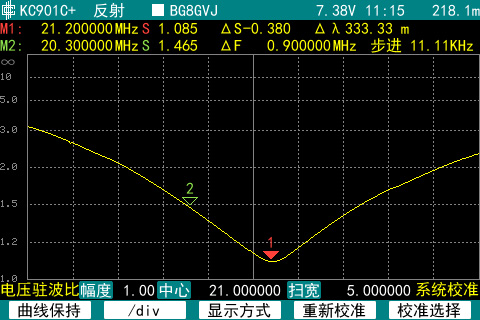

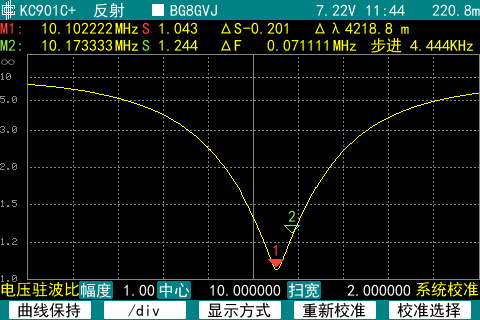

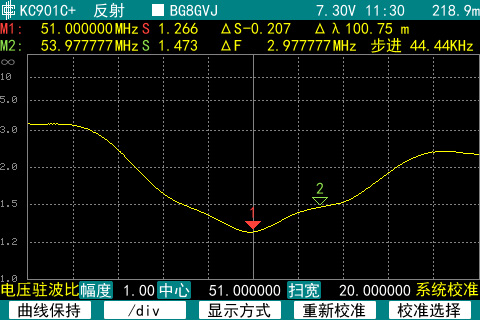

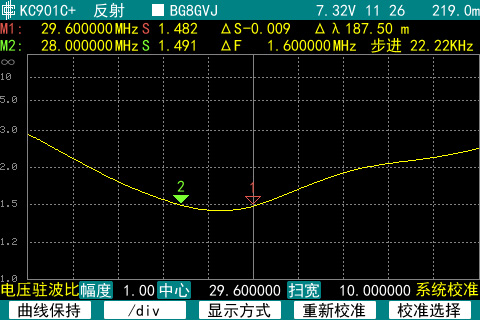

- Standing wave ratio of each section: less than 1.5
- Polarization method: vertical polarization
- Total storage length: 53cm/20.9"
- Net weight: 1.3Kg/2.9Lb

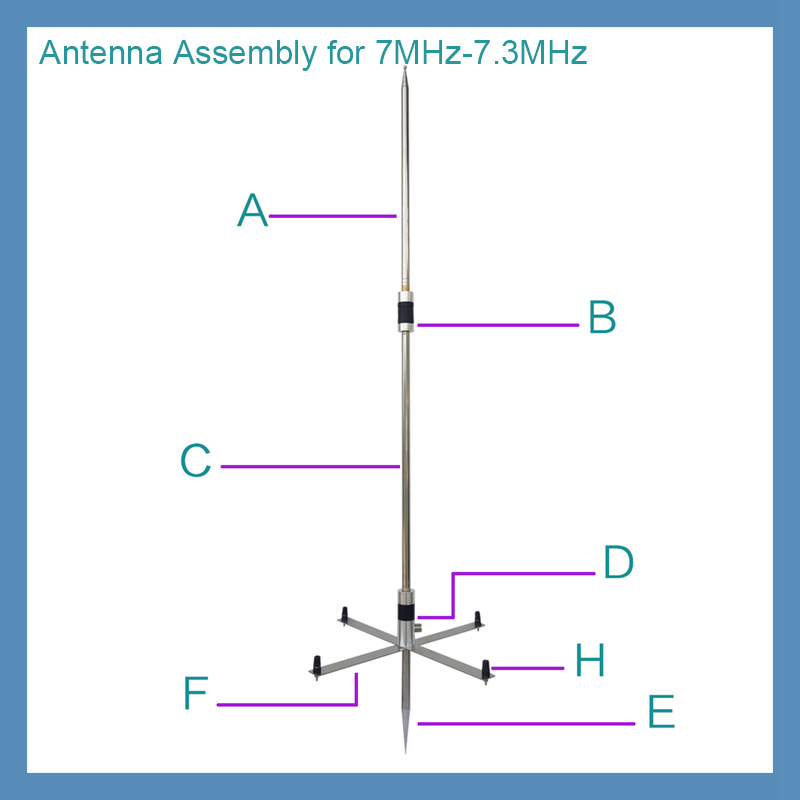

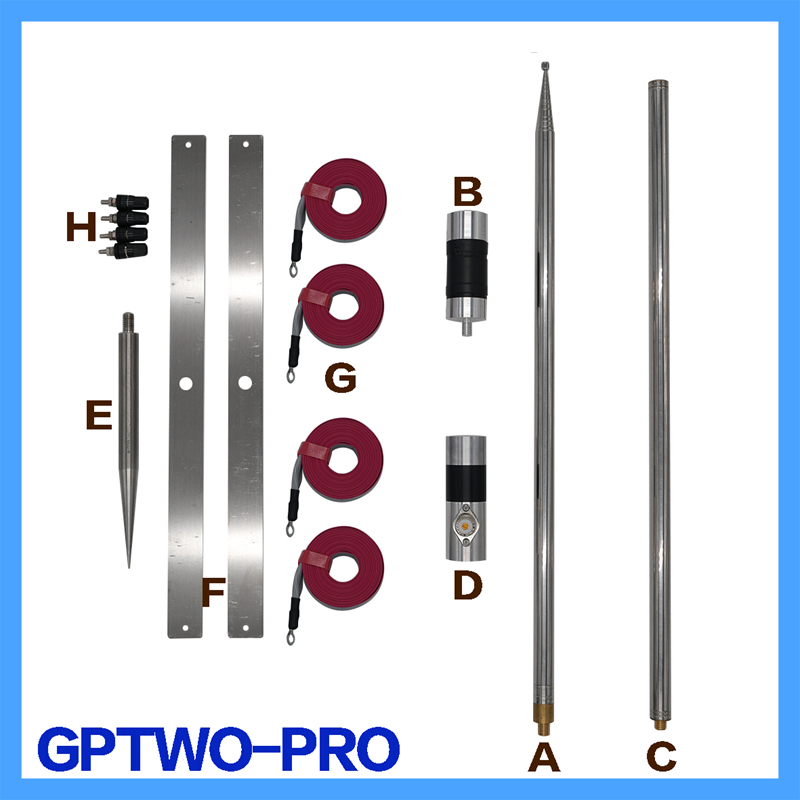

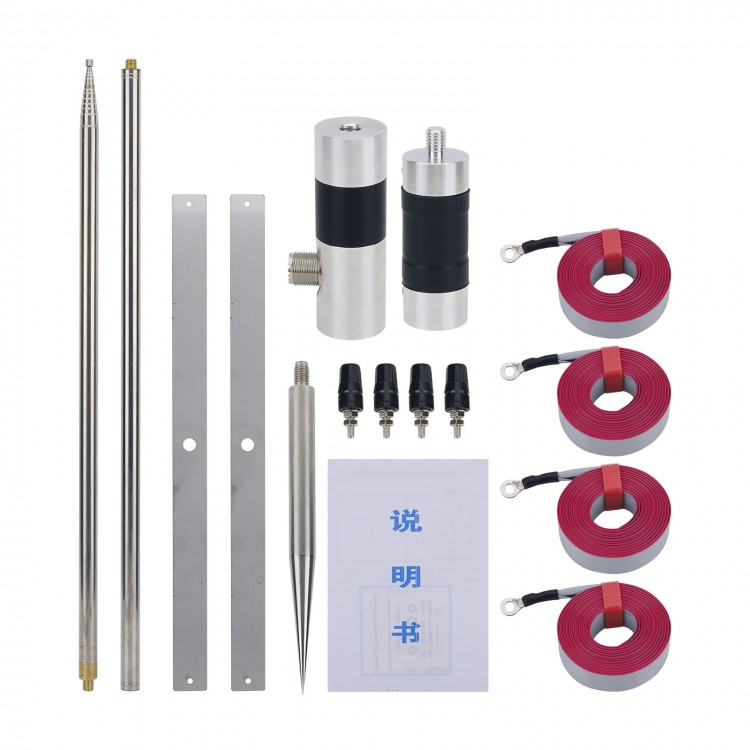

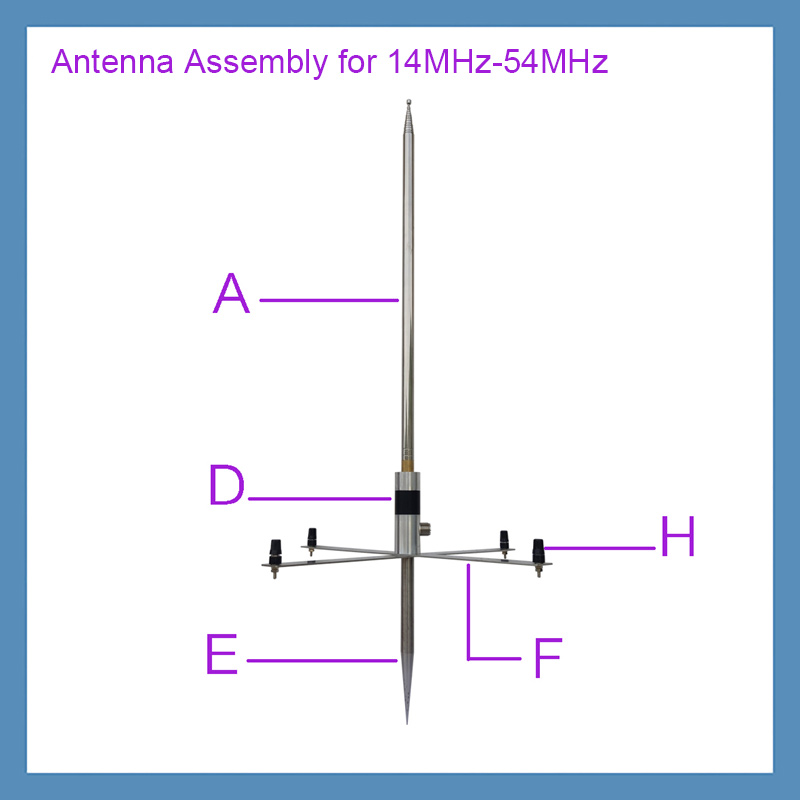

Package Included:
A. 5.6M/18.4FT Telescopic Antenna x 1
B. Load Coil x 1
C. Extension Pole x 1
D. GP Antenna Socket x 1
E. Ground Pin x 1
F. Counterpoise Stabilizer x 2
G. Counterpoise FFC Cable x 4
H. Counterpoise Terminal x 4

Note:
- Because some accessories are handmade, there may be some traces of production. Please make sure that you don't mind before purchasing. Thank you!
- The standing waves of each section of the antenna will differ depending on the place where it is erected.

Application:

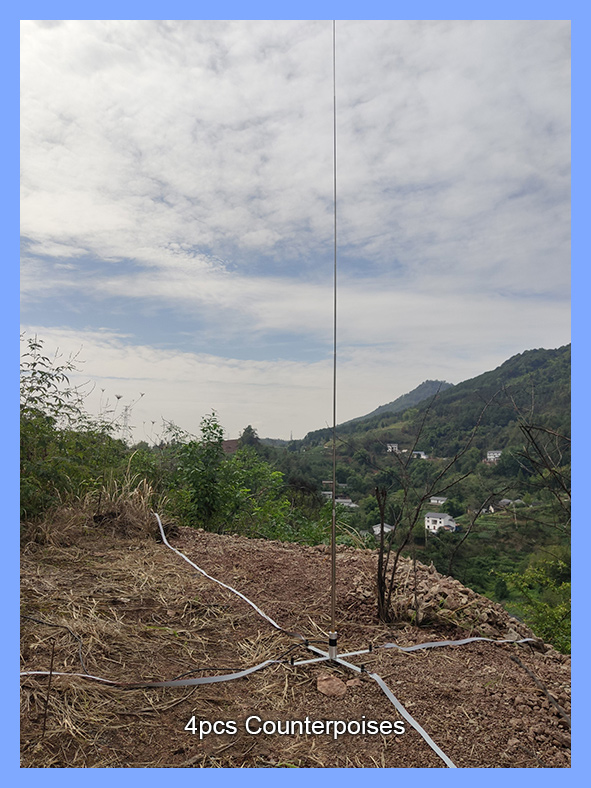

The 20-meter band of this antenna is a standard quarter wavelength natural resonance. Find a place with fertile soil to mount the antenna, and insert the ground pins in places with high conductivity such as water, lake and seaside. There are four counterpoises, each with 16 small ones and 64 counterpoises in total, with a doubled efficiency. But if the soil is poor, the effect will be reduced. The 40-meter band antenna uses a load coil, which is definitely slightly less efficient than a standard quarter wavelength antenna. The antenna bandwidth is very large, and has been praised by many enthusiasts.
