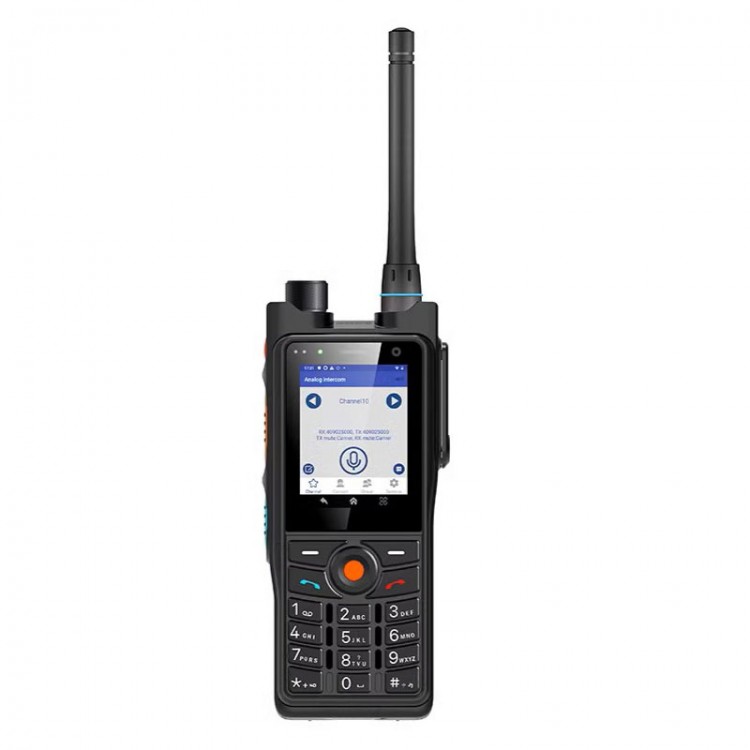

HamGeek HG36 3G+32G POC Radio Zello Walkie Talkie w/ MTK6761 Positioning and 5MP + 12MPx2 Cameras

HamGeek HG36 3G+32G POC Radio Zello Walkie Talkie w/ MTK6761 Positioning and 5MP + 12MPx2 Cameras

Advantages:
* Developed and integrated as a single unit, the smart handheld transceiver (POC radio, positioning, video surveillance, and other integrated dispatch platforms) is compatible with platforms like Zello and Corget
* POC/PTT/DMR/PDT multi-mode all-in-one device
* ODM/OEM available, with customizable solutions

Features:
* HamGeek HG36 POC radio supports digital and analog modes
* Supports audio and video
* 4G full network support
* Dual SIM dual standby
* PTT Mode: configured with DMR470
* Positioning System: Beidou, GPS, and GLONASS positioning (Optional single Beidou positioning)
* POC Mode: Supports multiple platforms. Currently adapted platforms include QChat, Corget, Shanli, Xin Platform, Public Network Era, and Zhongxunda.
* Supports Multiple Intercom Modes: Supports digital DMR470 and multiple public network platforms.
* Ultra-long communication range
* Rugged and Durable Design: With a military-grade design and IP68 protection, it ensures resistance to harsh environments for worry-free use.
* Clear Audio and Video Transmission: Advanced noise reduction technology ensures clear voice transmission. A 5MP front camera and dual 12MP HD rear cameras deliver an enhanced face-to-face communication experience.
* Software: Supports for Zello, WhatsApp, TikTok, Facebook, and X

Product Parameters:
1. Hardware Specifications:
Processor:
* Processor: 4-Core Processor MT6761V
* Operating System: For Android 9.0
* Language: Chinese, English (Customizable based on customer definition)

Storage:
* RAM: 3GB + 32GB
* Supported TF Card: Up to 256GB

LCD:
* LCD Size: 2.41'' TFT
* Resolution: 480*640
* Interface: MIPI

Touchscreen:
* Touchscreen: 2.41'' Capacitive Touchscreen
* Touch Points: 2-point touch

Sensors:
* Accelerometer: With
* Compass: With
* NFC: With

Frequency Bands:
* GSM: B2, B3, B5, B8
* CDMA2000: BC0
* WCDMA: B1, B2, B4, B5, B8
* TD-SCDMA: B34, B39
* FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B12, B17, B20, B28AB, B66
* TDD-LTE: B38, B39, B40, B41

Cameras:
* Front Camera: 5MP
* Rear Cameras: 12MP*2 and autofocus
* Flashlight: With

WiFi:
* WiFi Standards: 2.4G and 5.8G
* WiFi Antenna: Shared antenna for WiFi and BT; built-in FPC antenna

Bluetooth:
* Bluetooth Version: Bluetooth 4.1; BT2.1+EDR
* Range: 10 meters

Positioning System:
* Positioning System: Supports GPS, AGPS, Beidou, or GLONASS
* Built-in FPC Antenna: Built-in FPC antenna and built-in LNA

Speaker and MIC:
* Speaker Rated Power: 2W, Runway Shape 2035
* Speaker Sound Intensity: 90dB
* Receiver: Supported
* Microphone: Dual MIC. Secondary MIC for DMR recording
* Noise Reduction Design: Hardware noise reduction
* MIC Sensitivity: -38dB ±1.5
* SIM Card: Dual Nano SIM Cards
* Vibration Motor: With

Intercom Function:
* PTT Intercom Function: DMR. Supports DMR recording
* Transmit Power: 4W
* Frequency Bands: DMR Digital, Analog: 400-470MHz

2. Interfaces:
* USB Interface: TYPE-C USB; 2.0
* Supports OTG Function: Yes
* Charging: Up to 5V 2A

3. Other Parameters:
* M6: Yes (Supports external audio and video connection)
* Headset: Supported
* Handheld Microphone: Supports 2W external speaker and MIC
* 1080P HD Infrared Camera: Supported
* Supports OTG Function: Yes
* 5V Power Output (Power Bank): Maximum output current is 0.5A
* Dimensions (HxWxD): 148mm x 62mm x 36mm
* Waterproof Rating: IP68

4. Battery:
* Battery: Polymer battery
* Capacity: 2500mAh 7.6V
* Removable Battery: Yes

5. Charging Methods:
* USB Charging: Supports 5V 2A
* Charging Dock: 9V 2A

Mobile Charger:
* Input: AC 100 ~ 240V
* Output: DC 5V / 2.0A or above

6. Environment:
* Operating Temperature: -15℃ to 60℃
* Storage Temperature: -40℃ to 80℃
* Humidity: 20 ~ 90%
* ESD Protection: Contact: ±8KV; Air: ±15KV
* RoHS: RoHS Compliant

7. Special Features:
* Public Network and DMR Gateway: Supported. DMR and POC voice are mutually gateway-compatible
* Intercom Recording Function: Supported. It can independently record DMR or POC voice

Packing List:
* 1 x Set of Handheld Transceiver

Packaging Details:
* Weight: 0.8kg

Note:
* TF card and SIM card are not included.
