HAMGEEK LNR Loop Premium Pro-3 20KHz-30MHz Active Loop Antenna for SDR/Amateur Radio Broadcasting

HAMGEEK LNR Loop Premium Pro-3 20KHz-30MHz Active Loop Antenna for SDR/Amateur Radio Broadcasting

Description:
HAMGEEK LNR Loop Premium is a newly designed portable active loop antenna. It provides better performance than traditional passive and active antennas. Its ultra-low noise field-effect transistor design greatly improves LW/MW and SW reception. HAMGEEK antenna has higher sensitivity than other loop antennas. It is designed for indoor or outdoor mobile erection. It is quick to assemble and disassemble. The antenna has a frequency range of 20KHz to 30MHz and can be matched directly to a receiver.

It adopts a new CNC integrated molding processing technology, a fully shielded amplifier unit, a Mobius shield ring and a top low-noise active amplification scheme, further improving the signal-to-noise ratio of extremely weak signal reception.

HAMGEEK LNR Loop Premium is suitable for indoor, balcony and outdoor mobile erection thanks to its quick-release designs such as ring, amplifier unit, fixing hot shoe and tripod support. The new LNR Loop Premium is the third generation of this antenna Pro series. It has an ultra-low noise figure and excellent inter-modulation. Thus, extremely weak signal DX is no longer a dream!

Features:
- The new design features higher HF gain and improved LF sensitivity
- The amplifier unit is detachable and flexible to use. It can be used with coaxial cables and rings made of flexible cords for outdoor erections
- The ultra-low noise field-effect transistor design achieves very low local noise
- Ideal for SDR/amateur radio hobbyist, broadcast, utility bands and mid-wave band monitoring
- It offers up to 30dB of local immunity and power line noise rejection, compared to active mini whips
- Omnidirectional and deep zero points further reduce interference. It is ideal for medium and long-wave long-range reception, used with an antenna rotator
- Extremely low inter-modulation: HAMGEEK antenna is designed with a 50dB reduction in third order IMD, compared to loop antennas using conventional low-noise amplifiers or integrated circuits
- The new CNC integrated molding processing further improves its signal-to-noise ratio. Its unique quick-release design makes indoor and outdoor erection safer and more reliable
- Broadband adaptive, no tuning or matching units required. No further erection planning considerations are required, and the large ring can operate normally when it is close to ground level
- The hot shoe connector is reserved at the bottom of the amplifier unit. It is designed for indoor and outdoor erection environments, so it is convenient to match tripods of different specifications

Specifications:
- Frequency Range: 20KHz-30MHz
- OIP2: 100dBm+
- OIP3: 50dBm+

Package Included:

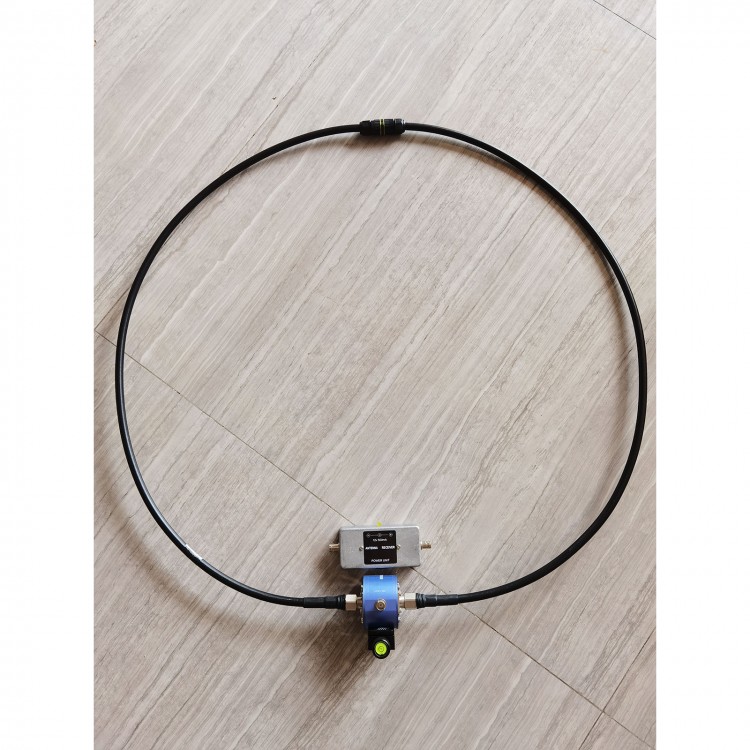

1. Ring body (about 60cm/23.6" in diameter) x 1
2. Amplifier unit x 1
3. Power supply unit x 1
4. Hot shoe base x 1

Packaging Details:
- G.W.: 2kg

Accessories should be Purchased Separately:
1. Feeder
2. Power adapter (12V positive inside and negative outside)
