HAMGEEK LNR Whip Skyline 100KHz-1GHz Receiver Antenna LW MW SW FM Broadband Antenna for GP Antenna

HAMGEEK LNR Whip Skyline 100KHz-1GHz Receiver Antenna LW MW SW FM Broadband Antenna for GP Antenna

Description:
HAMGEEK LNR Whip Skyline is a receiver antenna with a frequency range from 100kHz to 1GHz. Its frequency range covers long-wave, medium-wave, shortwave, FM, VHF and UHF. The antenna is designed for occasions where the antenna erection environment is limited and camouflage installation is necessary.

The two antenna elements of the HAMGEEK LNR Whip Skyline are passive. The long one is used for long-wave, medium-wave and short-wave reception, and its frequency is capped at 30MHz. The short one uses a loading coil with a resonant range of around 150MHz & 800MHz to enhance the reception performance of VHF & UHF.

The antenna is very lightweight and compact. The housing of the antenna is processed by CNC integral molding to ensure stability and shielding effect. The total length of the antenna is about 2m/6.6ft. It uses a coaxial cable M connector, and is designed with a fixed support plate and a U-shaped bolt mounting set.

Antenna installation requires support rods. The higher the antenna, the better. And it is recommended to install the antenna outside the balcony or on the roof. The feeder from the antenna to a receiver must avoid mains electricity cables, switching power supplies or electrical equipment.

Specifications:
- Frequency range: 100KHz-1GHz
- Impedance: 50Ω
- Resist to wind speed: 50m/s

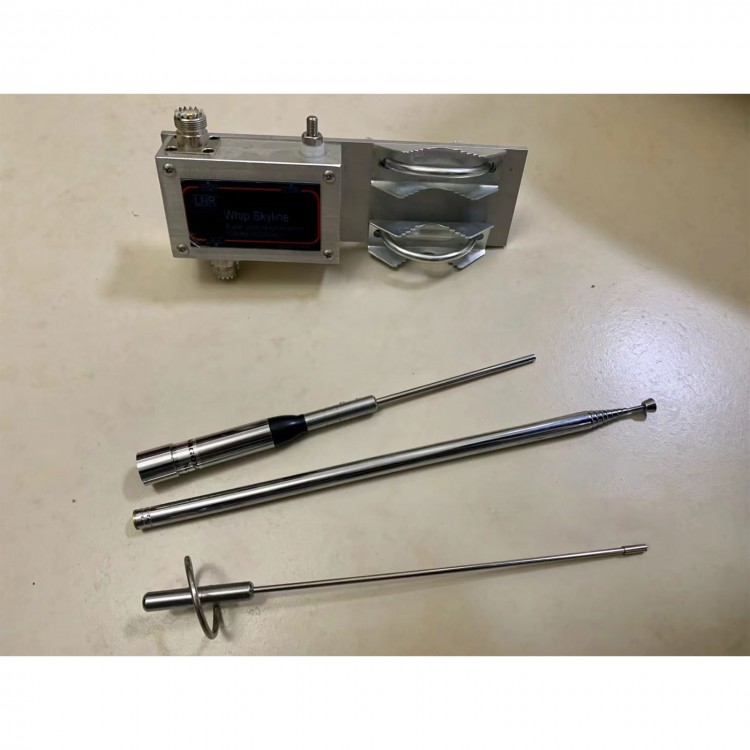

Package Included:
1. Antenna body (including housing and support plate) x 1
2. U-shaped bolt set x 2
3. Telescopic antenna element x 1
4. UHF VHF antenna element x 1

Packaging Details:
- G.W.: 1.5kg
