HamGeek MINI-25 Magnetic Loop Antenna 14MHz-50MHz HF Antenna for Shortwave Radio Walkie Talkie

Availability: In stock, usually dispatched in 1 business day

  • Price:$59.35
  • Price in reward points: 594 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $58.16 $56.98 $55.20 $52.82 Contact US
Quantity:
HamGeek MINI-25 Magnetic Loop Antenna 14MHz-50MHz HF Antenna for Shortwave Radio Walkie Talkie

Description:

HF Magnetic Loop Antenna comes with customized frequency range for icom R20, AOR 8200, Kenwood TH-D74, YUPITERU MVT9000 and other handheld HF scanner radios.

Advantages:
- The Latest Version
- Same Specs
- smaller Size
- Frequency range: HF-VHF (* Please read bellow) manually tuned
- It comes with one wire loop 1 turn diameter 250 for 14-50 MHz frequency range

You can always make and try your own wire loop with different wire length and number of turns to cover different frequency range. Larger wire loop or more turns gives lower tuning frequency. Also, larger wire loop diameter gives lower frequency range and larger reception signals, the internal variable capacitor is 10-200pF.

Features:
- Low noise loop antenna with small coupling loop still usable inside noisy house or apartment
- Sharp tuning works also as front end filtering
- Very lightweight
- BNC male connector

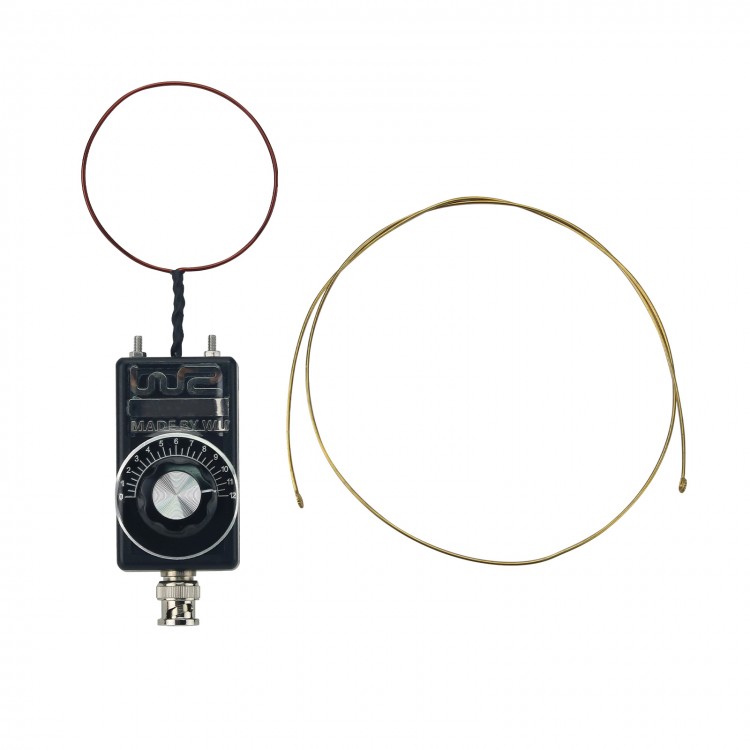

Package Included:
- 1 x Main Unit
- 1 x Wire Loop
- 1 x Connector

Note:
- Some radios need a SMA to BNC adapter.
- The receiver is not included. Only antenna is included.
- The wire loop made of a very flexible copper wire. It is is bent in smaller shape for easy packaging and you have to reshape it before using.
