HamGeek Mini-3358W 2PCS Mini Walkie Talkie VHF UHF Transceiver 8W 2-3KM 16-Channel VHF UHF Radio

HamGeek Mini-3358W 2PCS Mini Walkie Talkie VHF UHF Transceiver 8W 2-3KM 16-Channel VHF UHF Radio

Features:
- 8W fm transceiver
- Small and light
- 7-day standby
- USB charging
- 10KM communication
- 1000mAh battery
- Bright LED flashlight. At night, the built-in flashlight can illuminate, which is convenient to use
- HD sound quality. Squelch level and clear call
- Low electric quantity reminder
- Long receiving distance
- Write frequency encryption and anti-crosstalk. Multiple protections against crosstalk, making your calls smooth and easy
- CTSS/DCS support special and non-standard ones
- Strong penetration and long transmission distance. The signal of the double helical short antenna is more stable and the receiving ability is efficient. 16 storage channels
Penetration distance 8KM, 10 layers
- Hard shell shock resistance and drop resistance
- Suitable for hotels, construction sites, factories, shopping malls, outdoor, property security, logistics fleets, etc.

Main Functions:
- Frequency UHF 400-520MHz/VHF 136-174MHz
- 16 Channels
- VOX
- SOS
- Scan
- 1750HZ
- Scrambler
- Companding Function
- Battery Energy-saving
- Tail Elimination
- Battery Report
- High/Low Power
- PC Programmable
- Wide/NarrowBand
- Programmable Side Buttons
- Chinese/English Voice Report
- CTCSS/DCS Support Non-standard

Technical Parameters:
General:
- Frequency Range: UHF: 400-520MHz200-260MHz; VHF: 136-174MHz
- RF Output Power: H: 10W+1W; L: 5W+1W
- Channels: 16
- Channel Spacing: Broadband: 25Khz; Narrowband: 12.5Khz
- CTCSS/DCS: standard
- Antenna Impedance: 50Ω
- Operating Temperature: -20℃ to 50℃
- Operating Voltage: DC 3.7V
- Battery Type: 1000mAh
- Dimension (excluding the size of antenna): 82 x 25 x 44MM/3.2 x 1 x 1.7"
- Weight (Battery, Antenna Included): About 92g/0.2 lb

Transmitter:
- Output Power: 8W
- Modulation: F3E
- Modulation Sensitivity: 12±5mV
- Adjacent Channel Power: ≤-65dB wideband; ≤-55dB narrowband
- Modulation Distortion: ≤5%

Receiver:
- Reference Sensitivity: better than -122dBm
- Adjacent Channel Selectivity: ≥ 65dB
- Intermodulation: -55dB
- S/N: ≥ 50dB broadband; ≤ -40dB narrowband
- Rated Output Power: ≤ 1W
- Rated Audio Distortion: ≤ 10%

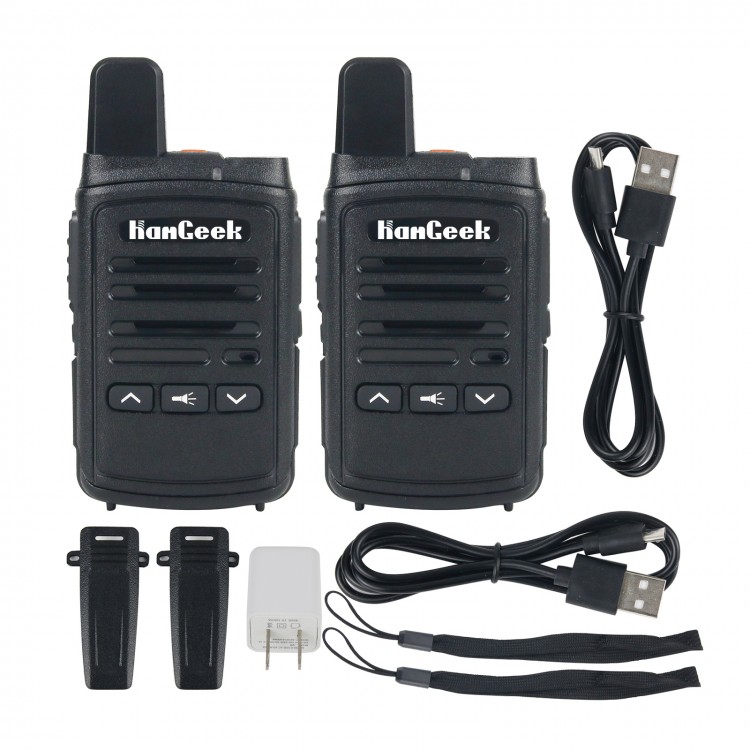

Package Included:
- 2 x Walkie Talkies
- 2 x Belt Clips
- 4 x Screws
- 2 x Hand Straps
- 2 x USB Cables
- 1 x USB AC Adapter
- 1 x User Manual (Chinese)
