HAMGEEK MT1129 Low Noise Amplifier TQP3M9037 LNA for SDR Radio Receiver Spectrum Analyzer TEF6686
Description:

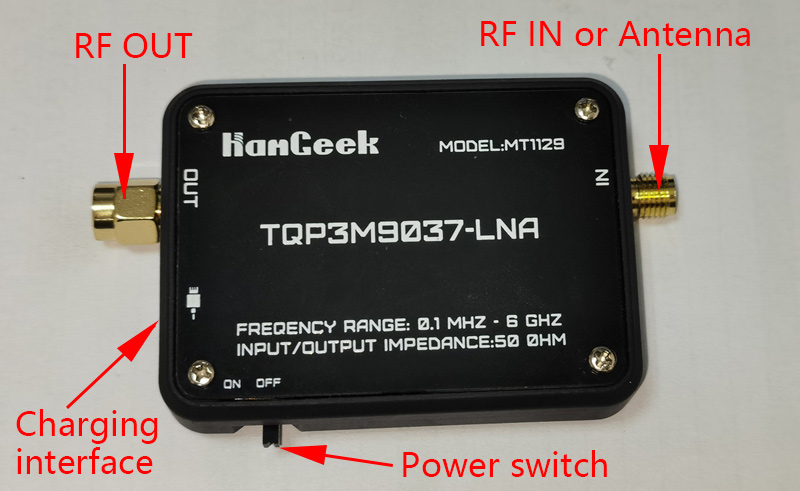

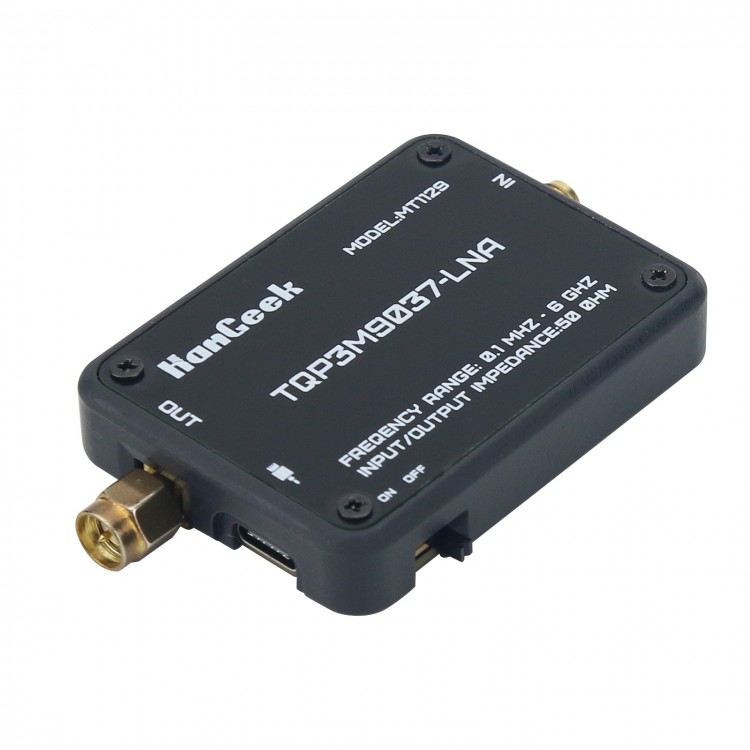

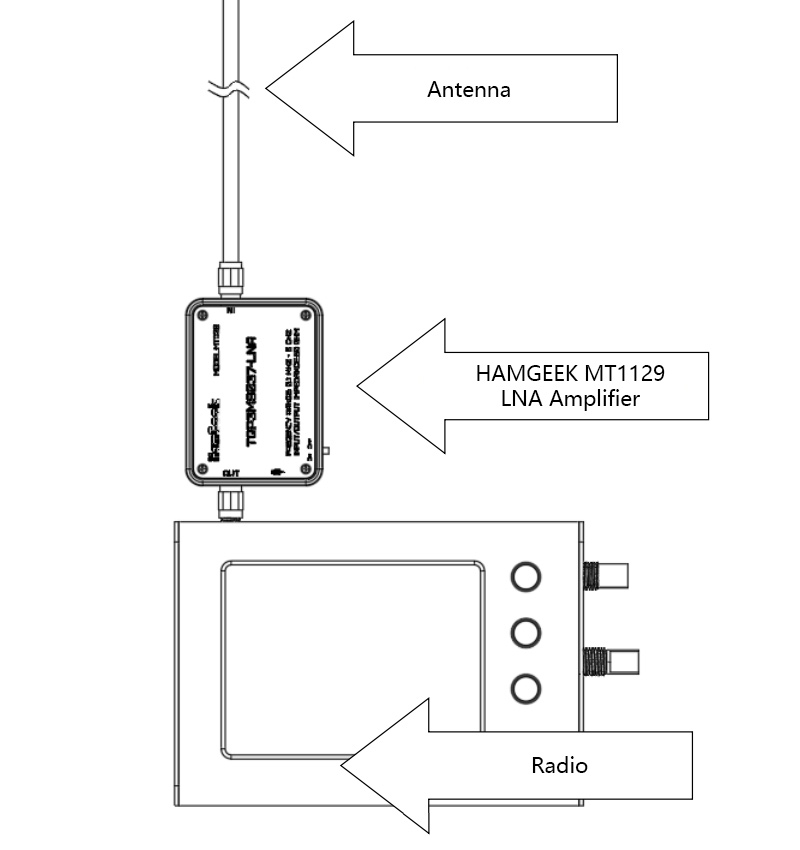

HAMGEEK MT1129 is a low noise amplifier for radio. The RF amplifier is made with TQP3M9037 high-linearity, ultra-low-noise chips for Qorvo. HAMGEEK MT1129 can be connected to all kinds of radio receivers, radios, SDRs, spectrum analyzers, etc.
Specifications:
- Brand: HAMGEEK
- Model number: MT1129
- Dimensions: 78 x 46 x 45mm/3.1 x 1.8 x 1.8" (including connectors)
- Charging voltage: DC 5V
- Battery: 4.2V 350mAh
- Antenna/input interface: SMA-K
- Output interface: SMA-JE
- Charging connector: Type-C
- Frequency range: 100K-6GHz
- Noise figure: < 0.8dB NF
- Gain: 20-35db
- Impedance: 50Ω
- Net weight (with battery): 36g/0.08lb
- G.W.: 0.15kg/0.3lb
Package Included:
- 1 x Low noise amplifier
