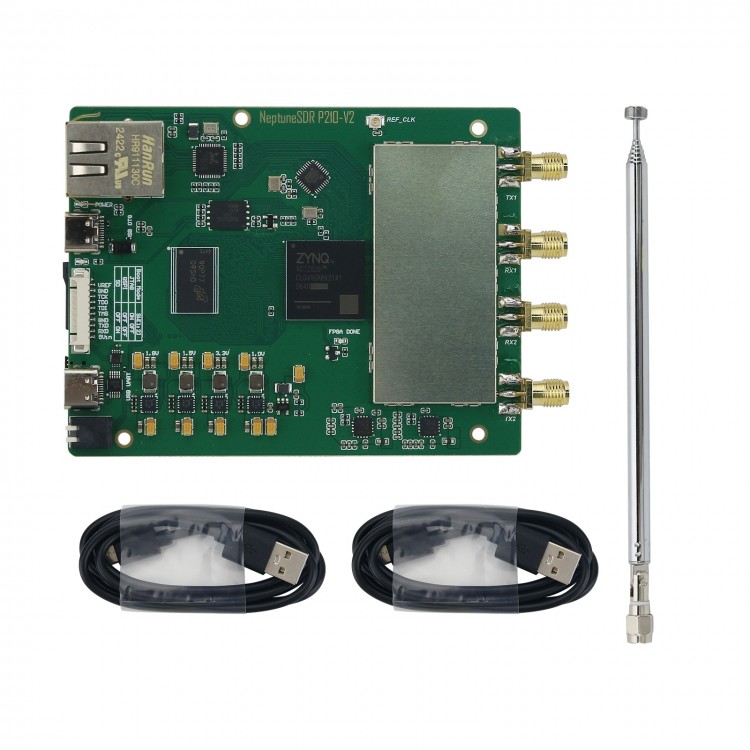

HAMGEEK P210 70MHz-6GHz SDR Development Board ZYNQ7020 AD9361 with Open Source Code for Pluto SDR

Availability: In stock, usually dispatched in 1 business day

  • Price:$310.04
  • Price in reward points: 3100 Reward Points: 31
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $303.84 $297.64 $288.34 $275.94 Contact US
Quantity:

HAMGEEK P210 70MHz-6GHz SDR Development Board ZYNQ7020 AD9361 with Open Source Code for Pluto SDR

Features:

- HAMGEEK P210 is a cost-effective SDR development board
- Open-source code
- Can be run offline
- Supports development via host computers
- Stronger logic capabilities: Integrated dual-core Cortex-A9 processor (766MHz) and 85K logic unit
- 4 ports: ETH, SD card slot, USB-OTG and USB-UART ports make it easy to use during the development process
- Powerful features and better performance: It is for ZED-FMCOMMS2-3/Open WIFI/Pluto SDR. It also supports development via an host computer (for official host computer/Matlab/GUN Radio, etc.)
- RF IC: AD9361
- Number of channels: 2T2R MIMO
- Baseband processor: For ZYNQ XC7Z020
- DDR3: 512M
- Host interface: 1G ETH
- Transmission data bandwidth with HOST: P210-12MSPS
- Transmission data bandwidth with HOST (burst sampling): 61.44MSPS
- API: For ADl iiO/EttusUHD
- Suitable for hobbyists and makers to develop and DIY

Advantages of HAMGEEK P210:
1. RF:
- RF IC: AD9361
- Frequency Range: 70MHz to 6GHz (AD9361)
- RF Channel: 2RT, 2x2 MIMO
- Signal Bandwidth: 200K to 56MHz (AD9361)

2. Data Processing Unit:
- ZYNQ SoC: XC7Z020CLG400i, dual-core cortex-A9 at 766MHz, 85k logic unit
- DDR3 RAM: 1GByte
- QSPI flash: 32MB

3. Interfaces:
- Gigabit Ethernet
- USB2.0 OTG
- SD card slot
- Integrated USB-JTAG, USB-UART
- Expansion ports supported

4. Clock & Power Supply:
- TCXO: 0.5ppm
- Power supply: Powered via USB port

Hardware Configuration:
- FPGA: ZYNQ-XC7Z020-CLG400
- RF chip: AD9361
- Memory: 512MB 16Bit DDR3
- Interfaces: 1G-ETH/SD-CARD slot/USB-OTG/USB-UART
- SMA ports: 2 for TX and 2 for RX
- Hardware frequency range: 70MHz-6GHz
- Signal bandwidth: 200KHz-56MHz

Package Included:
- 1 x HAMGEEK P210 SDR development board

Packaging Details:
- Weight: 0.35kg
