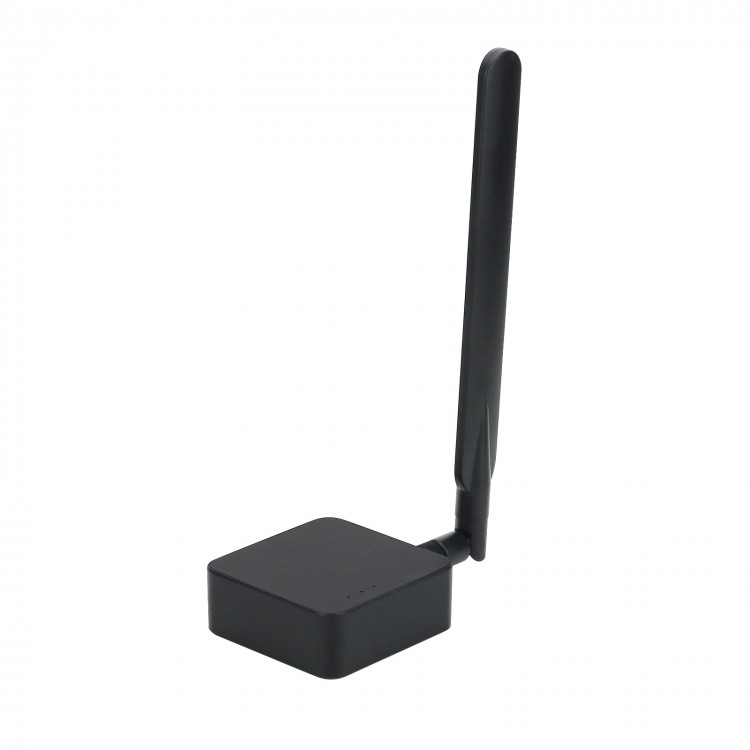

HamGeek POE Zigbee 3.0 Coordinator Router Wifi Zigbee Gateway (Black) for HamGeek CC2652P Module Zigbee2mqtt
POE Version:
It
does not need to be powered by USB alone, but can be powered directly
by a network cable. For example, when there is no power supply nearby
when you are setting up the layout, you can use the POE method to make
the network cable not only transmit the signal but also supply power to
the Zigbee Gateway.
Description:
This is a Z2M wired LAN port gateway zigbee2mqtt
Using
the strongest cc2652p chip + LAN port, its performance is stable. It
eliminates the problem of packet loss and disconnection of wifi
solution. It is more flexible to place the router. There is no need to
be restricted by location like the usb interface. This solution can be
equipped with modules to support poe, z2m and zha at the same time, and
the external antenna signal is super strong. Plug and play, get IP
automatically.
CC2652P zigbee wired gateway with LAN port, compatible with z2m zha
The
zigbee chip of this gateway is upgraded to the latest cc2652p. The chip
is the strongest zigbee chip for TI in zigbee networking, outperforming
cc2530 and cc2538 in stable wired connection.
After tests, the
gateway can access to about 200pcs sub-devices, with stable working
performance. Better than gateways for Xiaomi (up to 30pcs or so of
sub-devices), cc2530/2531 and other gateways.
Support for
homeassistant, nodered, iobroker, etc. Supports for Synology and
compatible with thousands of zigbee devices of most brands on the
market, as well as for ZHA in Home Assistant and Tasmota. Suitable for
placing your coordinator in the center. Through a stable Ethernet
connection, don't worry about disconnecting! USB pass-through is not
required when using HA in a VM environment.
You can use the hardware by Koenkk (Koen Kanters) https://github.com/Koenkk/Z-Stack-firmware/tree/master/coordinator or by Egony (Alex Egony) https://github.com/egony/cc2652p_E72 -2G4M20S1E/tree/master/firmware/coordinator. Use Egony's coordinator firmware by default. Example of port writing in zigbee2mqtt configuration file: port://deviceip:5000
Package Included:
- 1 x Router
- 1 x Antenna
