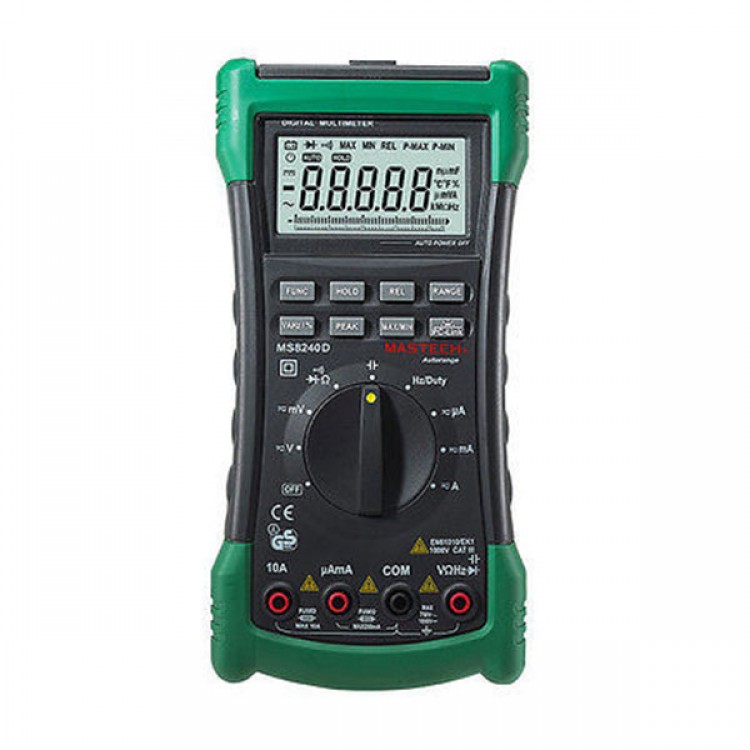

Handheld Auto Range LCD True-RMS Digital Multimeter DMM MASTECH MS8240D Capacitance Frequency Diode Continuity With USB
Introduction:
This Meter is a handheld and battery operated Digital Multi Meter(DMM) with multi function. This Meter is designed to meet IEC1010-1 CAT III over voltage category and double insulation. The entire outer surface of the case has been formed with thermo plastic elastomer, giving the main body, though downsized, high resistance against the shock of a drop.
The MS8240D are a high performance, low power consumption and 4 1/2 digits (22000 counts) With 46 segments bar graph. It is have True-RMS function for AC voltage and AC current measurement.
Feature:
Auto ranging DMM , that full scale is 22000 counts
Display : 4 1/2 digit LCD display with 46 segment bar graph
Auto Range and Manual Range
DATA HOLD function
MAX/MIN value measurement
Full Overload protection
Relative measurement
True- RMS measurement for AC voltage / AC current measurement
Back Light
Low battery indication
Auto Power off
Continnuity Test
Diode Test
Peak value Measurement
USB interface for communication to the computer
Specification:
|
Function |
Range |
Resolution |
Accuracy |
Over Load |
|
DC V |
2.2/22/220/1000V |
0.1mV |
±(0.05%rdg+3dgt) |
yes |
|
AC V |
2.2/22/220/700V |
0.1mV |
±(0.8%rdg+4dgt) |
yes |
|
DC mV |
220mV |
0.01mV |
±(0.05%rdg+3dgt) |
yes |
|
AC mV |
220mV |
0.01mV |
±(0.8%rdg+4dgt) |
yes |
|
DC Current |
220u/2200u/22m/ 220m/10A |
0.01u |
±(0.8%rdg+4dgt) |
yes |
|
AC Current |
220u/2200u/22m/ 220m/10A |
0.01u
|
±(1%rdg+3dgt)
|
yes |
|
Resistance |
220/2.2K/22K/220K /2/2M/22M/220Mohm |
0.01ohm |
±(0.8%rdg+2dgt) |
yes |
|
Capacitance |
22nf/220nF/2.2uF/ 22uF/220uF/2/2m/220mF |
1nF |
±(2.5%rdg+3dgt) |
yes |
|
Frequency |
22Hz/220Hz/2.2K/ 22KHz/220KHz |
0.01Hz |
±(0.2%rdg+3dgt) |
yes |
|
Continuity Check |
Open circuit voltage: about 2.7V |
yes |
||
|
Diode Check |
Open circuit voltage: about 2.7V |
|||
Package List:
1 X MS8240D MultiMeter
1 X MS3202 multi-socket
1 X USB cable
1 X CD-ROM (containing USB communication software)
1 X test leads
