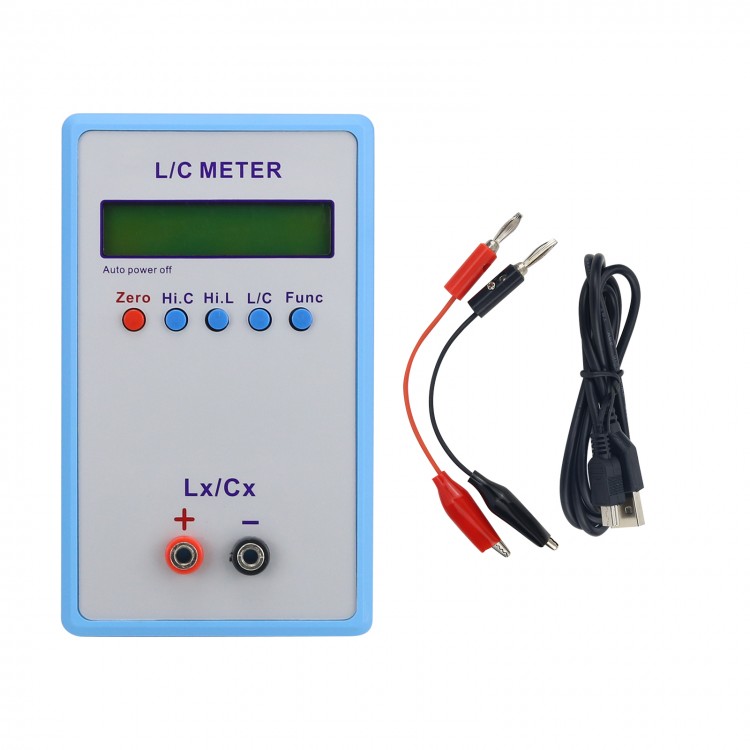

Handheld Capacitance Inductance LC Meter LCR LC200A Multimeter Electric Bridge
Description :
- Modle:LC200A.
- Supply power: +5v ,miniUSB interface ,4pcs AA battery (NOT included).
- Measurement accuracy:1%.
- Capacitance measuring range: 0.01 pF - 10uF.
- The minimum resolution: 0.01 pF.
- Big Capacitance measuring range1uF-100mF/minimum resolution:0.01UF.
- Inductance measuring range: 0.001 uH - 100mH.
- Big inductance measuring range: 0.001 mH - 100H.
- The minimum resolution: 0.001uH.
- Test frequency range: L/C about 500KHZ/Big inductance 500HZ.
- Effective display digits: 4 digits.
- LCD display mode: 1602.
- Size:15cm x 9cm x 3.5cm - 5.91inch x 3.54inch x 1.38inch.
Note:
1.Pls reset to zero, before testing a Capacitance or inductance,or it may damage the board .
2.If the result on the LCD is not stable, it s normal due to the poor quality of L/C.
3.Test clip is NOT including.
Package Included:
- 1 x Capacitance Meter LC200A
- 2 x Cable
- 1 x Mini usb power cable
