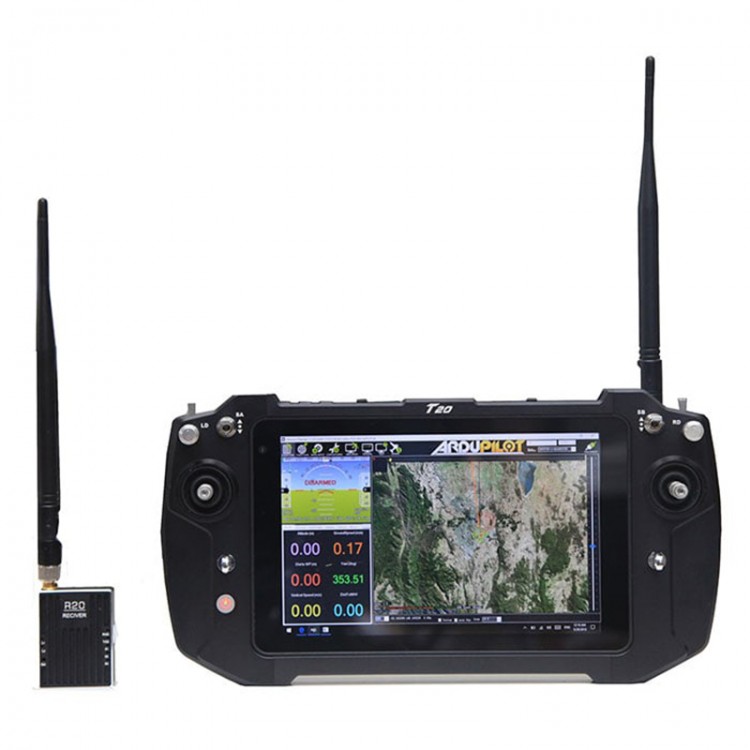

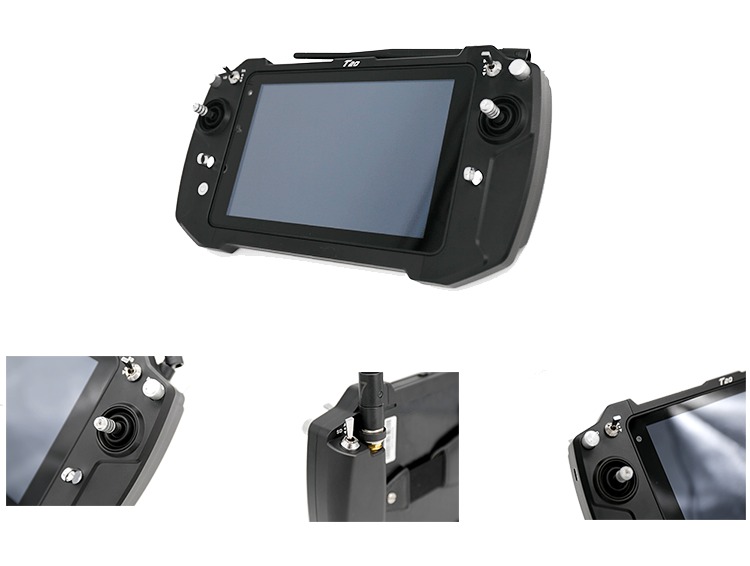

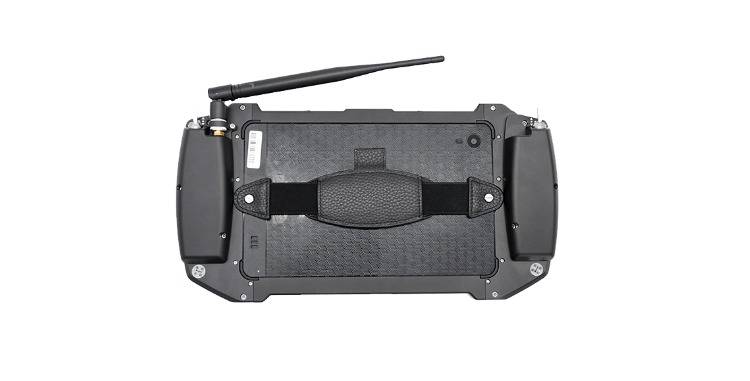

Handheld FPV Ground Station 8'' IPS Dual System T20 All-in-one Remote Control System H840 Version

Handheld FPV Ground Station 8'' IPS Dual System T20 All-in-one Remote Control System H840 Version

Description:
- T20 is our next generation All-in-one portable ground station. It’s a water, sun & shock resistant handheld ground station that integrates an industrial-grade computer with dual system (for Windows or Android) and an integrated link remote control system.
- The transmitter can be used to control the aircraft or a gimbal with real-time flight and remote status feedback, route planning, and other functions.
- The dual-system platform supports most of the ground station software on the market. The industrial grade computer and military grade transmission links not only ensure the safety and stability of the aircraft, but also are simple to operate and easy to carry.

Parameters of Remote Controller:
- Channel: 14-Channel
- Frequency: 840MHz/900MHz
- RC Distance: 5-30km (Depends on the environment)
- RF Power: 1W (Adjustable)
- Remote Control Delay: 10ms
- Electricity: 3.7V/7500mAh
- Duration Time: 3 Hours for Full-load
- Dimensions: 300 x 160 x 40mm
- Net Weight: around 1000g
- Computer System: for Win10 or Android 5.1
- Display Screen: 8 Inch IPS 320 CCD (Optional Invisible Screen in Sunlight)
- Resolution: 1280 x 720
- Processor: Intel Cherry Trail Z8350
- Memory: 2GB/4GB DDR3 (Optional)
- Storage: 32GB/64GB (Optional)
- Protective Level: IP67
- External Ports: TF Card, USB Port, 3G Card
- GPS Module: Built-in High Precision GPS

Parameters or Receiver:
- Working Frequency: 820MHz-845MHz
- Antenna: 2dB Antenna
- Working Voltage: 7.4V-12V
- Serial Baud Rate: Default 115200 (Adjustable)
- Working Current: 300mA (12V power supply)
- Transmission Speed: Default 100K (Adjustable)
- Serial Output: 1-CH TTL
- Dimensions: 53 x 40 x 14mm

Package Included:
- 1 x Ground Station Main Unit
- 1 x Receiver
- Other Accessories
